WG-1/906

WATER GLIDER

ELECTRIC POWERED SWIMMING BOARD

Instruction Manual

PLEASE READ ALL INSTRUCTIONS CAREFULLY AND

RETAIN FOR FUTURE USE

Table of Contents

Need help?

Do you have a question about the WG-1/906 and is the answer not in the manual?

Questions and answers

Summary of Contents for Replay WG-1/906

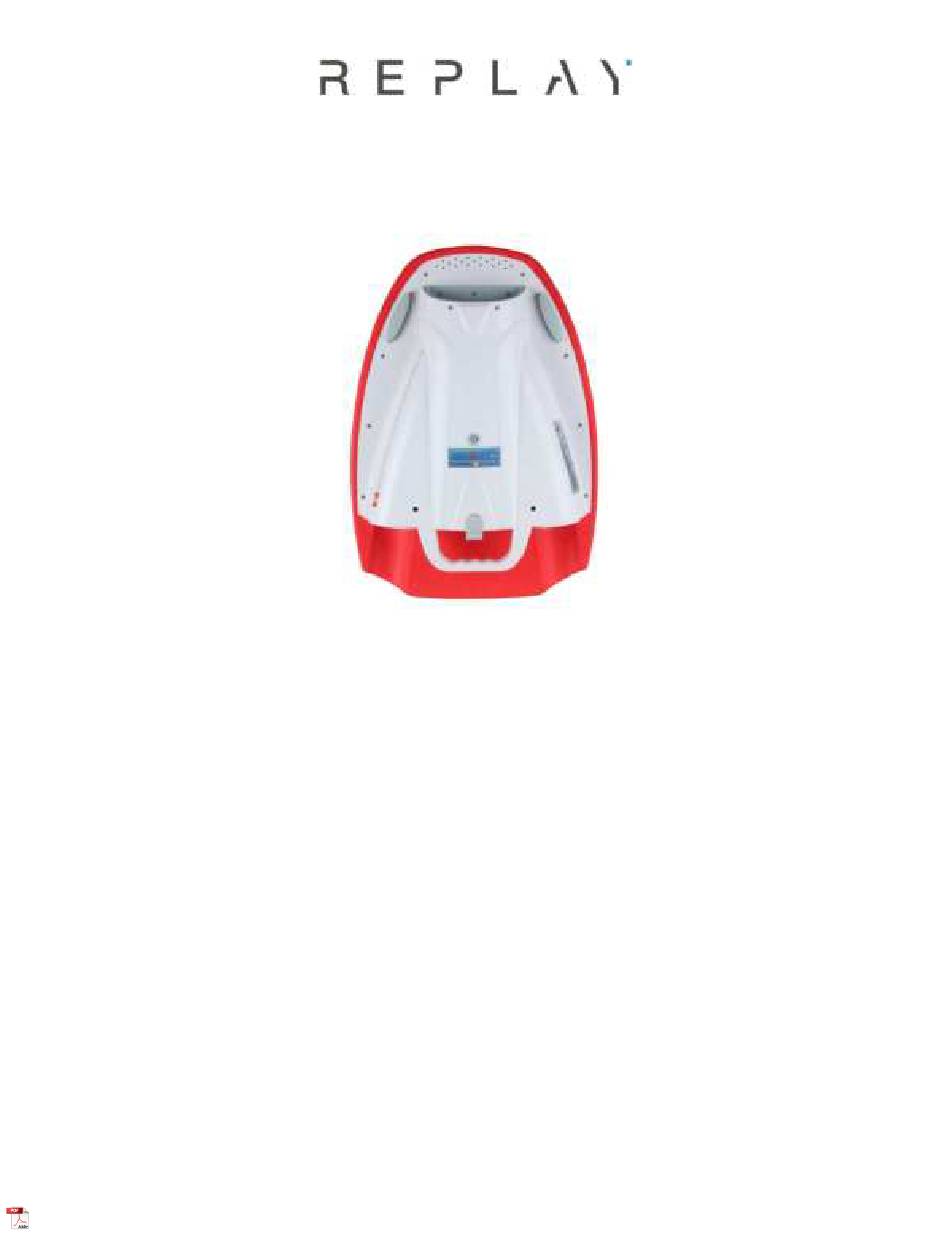

Page 1 WG-1/906 WATER GLIDER ELECTRIC POWERED SWIMMING BOARD Instruction Manual PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE...
Page 2 WARNING PLEASE READ THE INSTRUCTION MANUAL THOROUGHLY. Thank you for purchasing the ELECTRIC POWERED SWIMMING BOARD. Failure to follow the basic instructions and safety precautions listed in the instruction manual can lead to damage to your device, other property damage, serious bodily injury and even death.
Page 3: Safety Instructions
and even death. SAFETY INSTRUCTIONS  Keep the device away from heat sources, direct sunlight, humidity, water and any other liquids.  Do not operate the device if it has been exposed to water, moisture or any other liquids to prevent against electric shock, explosion and/or injury to yourself and damage to the device.
Page 4: Getting Started
 Do not operate if you are pregnant, have a heart condition, or have both. Persons with any mental or physical conditions that may make them  susceptible to injury or impair their physical or mental capabilities to recognize, understand and perform all of the safety instructions and to be able to assume the hazards inherent in unit use, should not use this swimming board.
Page 5: Description Of Parts
DESCRIPTION OF PARTS Nozzles Intake Gate Charge Port Cover Drain Holes Power Button/Indicator EPP Pad Bottom Case Throttle Button INSTRUCTIONS FOR USE Please read the following instructions carefully. BATTERY SPECIFICATIONS Battery Type: Rechargeable lithium-ion battery Fully Charging Time: 5 hours Voltage: 32V Initial Capacity: 4Ah BATTERY POWER...
Page 6  Do not use the battery if it emits an odor. Do not use the battery if it is leaking.   Do not allow children or animals near the battery.  Remove the charger prior to driving. The battery contains dangerous substances. DO NOT OPEN THE ...
Page 7  Open the charge port cover. Plug the charging cable into the Swimming board.   Connect the charging cable to the power supply.  The red light indicates that it has begun charging. If the light is green, check whether the cable is connected correctly. ...
Page 8: Speed Control
starting successfully, it only needs to press either one throttle button to keep running. SWIMMING Place the swimming board on the water surface and you are lying on the surface of the EPP pad. Hold the handle of the board with your two hands and change the direction of advancement by tilting the swimming board.
Page 9: Safety Precautions
face. AFTERCARE After using, please use fresh water to soak the unit, then, life the handles and erect the unit until it is fully drained in about 30 minutes. SAFETY PRECAUTIONS Before using this product, please fully understand and familiarize yourself with ...
Page 10  When you are using this product, you should wear swimming cap, pay special attention to anyone with long hair around you in order to avoid squeezing their hair or clothes into the propeller.  Do not remove the intake gate. Do not put your fingers or your other body parts into the flow channel at any time, and do not allow any foreign objects to penetrate into the flow channel.
Page 11: Safe Driving
 Please clean and dry the product thoroughly after each use. The product should be placed in a cool and ventilated place. SAFE DRIVING Carefully read the following safety precautions prior to operating your Swimming board:  The Swimming board should only be used for personal use and is not designed for commercial use or applications.
Page 12: Care And Maintenance
Weight: A lighter user will have further range than a heavier user.  Ambient temperature: Please ride and store the device under recommended  temperatures, which will increase driving distance; battery life, and overall performance of your device. CARE & MAINTENANCE Do not use abrasive cleaning solvents to clean the device.
Page 13: Limited Warranty
Battery Life: 30 minutes (continuous use); 60 minutes (mixed use) Power Requirement: AC 100-240V, 50/60 Hz Motor Type: Brushless DC Motor Motor Rating: 400W, 5000rpm FCC INSTRUCTIONS Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the product. NOTE: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 14 Manufacturer's warranty is non-transferable and is limited to the original purchaser only. Manufacturer warranty only applies to products purchased through an authorized REPLAY retailer. Items purchased from private sellers, online auction sites, including eBay, liquidators, sold "as-is" or “final sale" or from clearance or going-out-of-business sales, are not covered by warranty.
Page 15 REPLAY or if our products are equipped with additional parts or accessories that are not approved for the REPLAY. Using any charger, other than a genuine REPLAY charger, or a charger for a different model, voids the warranty and is a serious fire hazard.
Page 16 RMA number (Return Material Authorization) to send the product to REPLAY. If an RMA is issued, the package must be shipped within 14 days of the RMA issuance or the package will be refused and returned to sender. If, at the sole...
