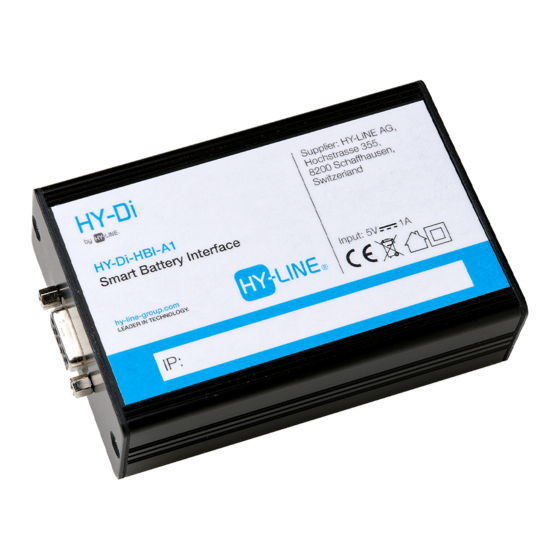

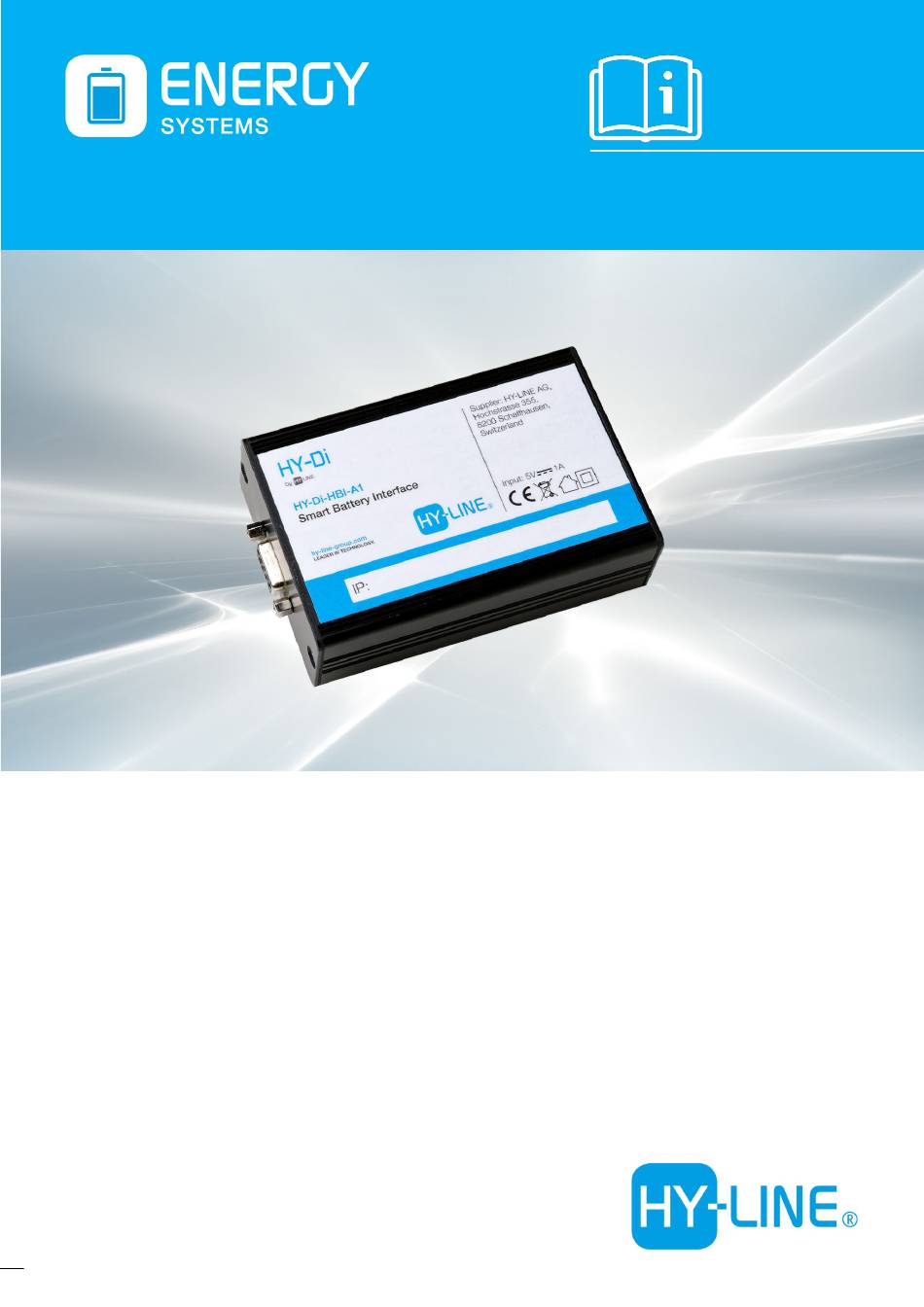

- Page 1 Quick Start Guide 07/2022 HY-Di-HBI-A1 HY-LINE Battery Interface - HBI hy-line-group.com LEADER IN TECHNOLOGY.
- Page 2 07/2022 HY-Di-HBI-A1 - HY-LINE Battery Interface – HBI Content / Contenu This document provides a brief description of the initial start of the HY-LINE Battery Interface (HBI). CONTENT / CONTENU ..............................2 PRECAUTIONS / CONSIGNES DE SÉCURITÉ ........................3 QUICK START GUIDE / DÉMARRAGE RAPIDE ........................4 ..............................
- Page 3 Quick Start Guide 07/2022 HY-Di-HBI-A1 - HY-LINE Battery Interface – HBI Précautions / Consignes de sécurité General Safety Instructions Consignes générales de sécurité Read Quick Start Guide carefully before use! Lire attentivement le guide de démarrage rapide avant Improper handling may cause defects.
- Page 4 Quick Start Guide 07/2022 HY-Di-HBI-A1 - HY-LINE Battery Interface – HBI Quick Start Guide / accès rapide 1. Unpacking / Déballage Carefully remove the Battery interface from the package. Retirez l'interface de la batterie de l'emballage. 2. Connect Ethernet (RJ45) / Connexion Ethernet...
- Page 5 Quick Start Guide 12/2021 HY-Di-HBI-A1 - HY-LINE Battery Interface – HBI 4. Connect Power-supply (micro-USB) / Connexion de L’alimentation Figure 3 Connect the power supply (micro-USB) cable as shown in Figure 3 Connectez l’alimentation (micro-USB) comme indiqué sur la NOTE: Power demands: 5V/1A.
- Page 6 Quick Start Guide 12/2021 HY-Di-HBI-A1 - HY-LINE Battery Interface – HBI 7. Read battery data from Web-GUI / Lire les données de la batterie dans le navigateur Figure 6 A Web-GUI provides the battery data - see Figure 6 Une interface graphique basée sur un Browser met à disposition les données de la batterie – voir Figure 6 8.
- Page 7 IEC 62368-1:2014 The EU Declaration of Conformity and related documentation are provided in accordance with the guidelines at: HY-LINE AG Hochstrasse 355 8200 Schaffhausen Switzerland For further support please contact HY-LINE AG, Hochstrasse 355, CH-8200 Schaffhausen, info@hy-line.ch! hy-line-group.com LEADER IN TECHNOLOGY.
- Page 8 HY-LINE AG belongs to the HY-LINE group, a group of specialized distributors. HY-LINE AG is a specialist in batteries and systems. In addition to standard batteries and charging and maintenance systems, the focus is on the development and design of custom-specific batteries and systems.
