Summary of Contents for PureLink HT-140U

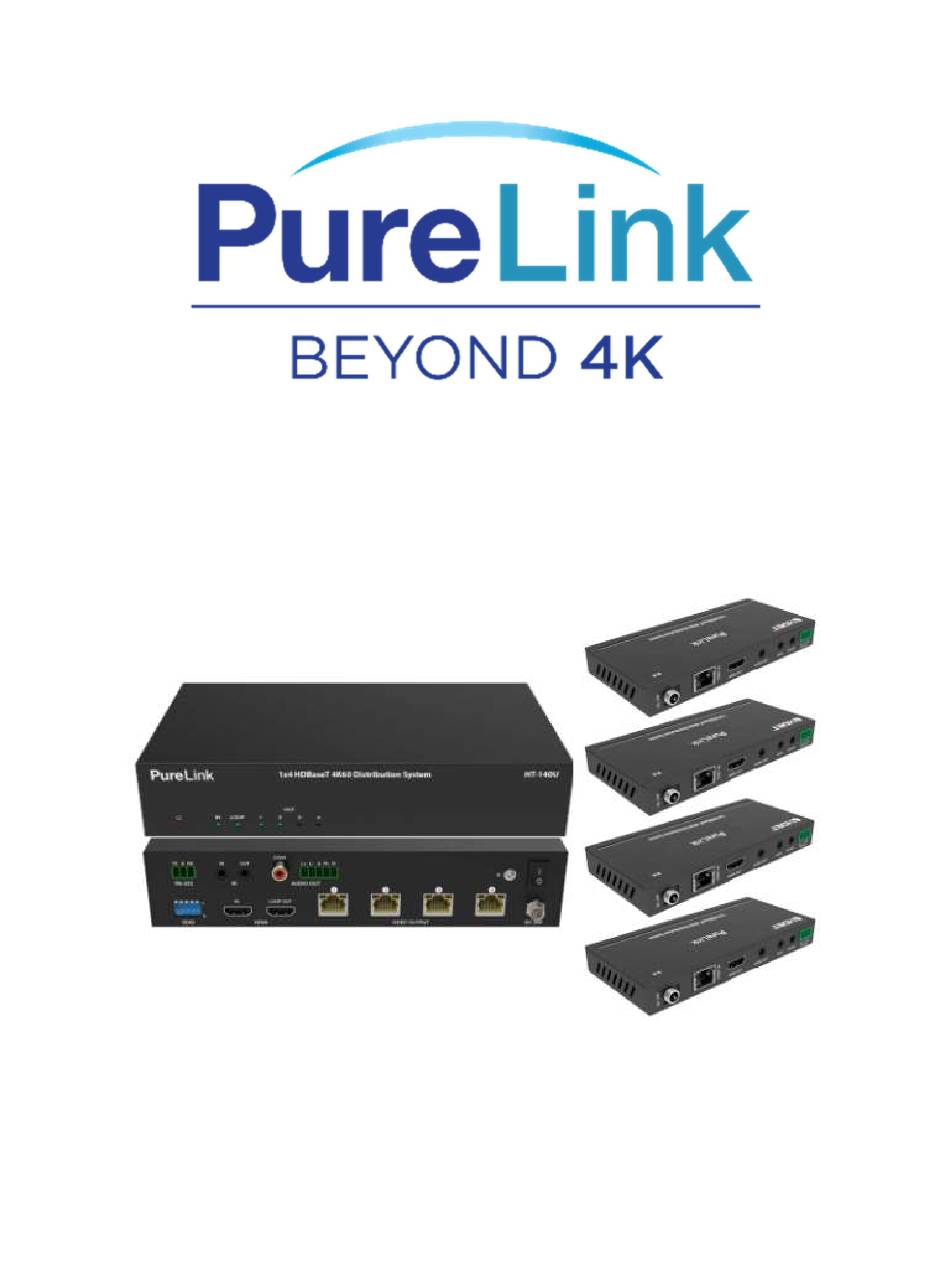

- Page 1 Purelink HT-140U User Manual V1.5 HT-140U 4K60 1x HDBaseT Distribution System...
-
Page 2: Table Of Contents
Purelink HT-140U User Manual V1.3 Contents Features ................................ 3 What’s in the Box ............................3 Product Description ............................3 Specifications ..............................4 Operation Controls & Functions ........................5 Transmitter ............................... 5 Front Panel ............................5 Rear Panel ............................. 6 HDBaseT Receiver ............................. 7 IR Blaster/Receiver Definition ........................ -
Page 3: Features
Our EDID management system makes it easy to select from over 30 EDID tables, alleviating issues of handshaking in all applications. The HT-140U Transmitter is to be used with the HT-140U-RX receivers, sold separately so you can purchase only as many as you need. -
Page 4: Specifications
Purelink HT-140U User Manual V1.3 Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 594MHz/18Gbps Video Resolution Up to 4k2k@60Hz 4:4:4 8-bit,10-bit,12-bit(1080p@60Hz) Color Depth 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 Support HDR, HDR10+, HLG, Dolby vision LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,... -
Page 5: Operation Controls & Functions
Purelink HT-140U User Manual V1.3 Operation Controls & Functions Transmitter Front Panel 1. POWER LED: When the device is powered on, the red power LED will be on. 2. IN LED: When the HDMI IN port connects an active source device, the green LED will be on. -
Page 6: Rear Panel
Purelink HT-140U User Manual V1.3 Rear Panel 1. RS-232: a. Connect to a PC or control system via a 3-pin phoenix connector cable for three functions: b. Firmware update; c. Control the Splitter via RS-232 commands; d. RS-232 signal pass-through (from transmitter to receiver or from receiver to transmitter). -
Page 7: Hdbaset Receiver
Purelink HT-140U User Manual V1.3 11. DC 24V: Plug the DC 24V power supply into the unit and connect the adaptor to an AC outlet. (Note: The transmitter can power the receiver via a CAT cable.) HDBaseT Receiver (HT-140U-RX Sold Separately) 1. -
Page 8: Ir Blaster/Receiver Definition
Purelink HT-140U User Manual V1.3 IR Blaster/Receiver Definition Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote... -
Page 9: Edid Mode
Purelink HT-140U User Manual V1.3 EDID Mode The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 11111 1080P, Stereo Audio 2.0 11110 1080P, Dolby/DTS 5.1 11101 1080P, HD Audio 7.1 11100 1080I, Stereo Audio 2.0 11011 1080I, Dolby/DTS 5.1... -
Page 10: Ascii Commands
Purelink HT-140U User Manual V1.3 ASCII Commands The product also supports ASCII command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. - Page 11 Purelink HT-140U User Manual V1.3 Get the connection status of hdmi loop out: the y output port , y=0~5(0=all, r link out y! r link connect 1~4=HDBT 1~4 , 5 = loop out) out 1! hdbt output 1: connec s reset!
- Page 12 Purelink HT-140U User Manual V1.3 Command Code Function Description Example Feedback Default Setting EDID Setting Set input EDID from default EDID z, z=1~27 1 , 1080p,Stereo Audio 2.0 2 , 1080p,Dolby/DTS 5.1 3 , 1080p,HD Audio 7.1 4 , 1080i,Stereo Audio 2.0 5 , 1080i,Dolby/DTS 5.1...
- Page 13 Purelink HT-140U User Manual V1.3 19 , 4K2K60_444, Stereo Audio 2.0 HDR 20 , 4K2K60_444, Dolby/DTS 5.1 HDR 21 , 4K2K60_444, HD Audio 7.1 HDR 22 , copy from hdmi loop out 23 , copy from hdbt output 1 24 , copy from hdbt output 2...
-
Page 14: Application Example
Purelink HT-140U User Manual V1.3 Application Example The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -
Page 15: Warranty
TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial environment in a manner consistent with its... - Page 16 Most problems can be corrected over the phone through close cooperation between Customer and a PureLink technician. To better enable PureLink to address a warranty claim, please have the Product’s serial and model numbers. If PureLink, in its sole discretion, determines that an on-site visit or other remedial action is necessary, PureLink may send a representative to Customer’s site.
