Aritech DM2010 Installation Sheet

DM2010 Manual Call Point Installation Sheet
EN IT LT
1
EN: Installation Sheet
Description

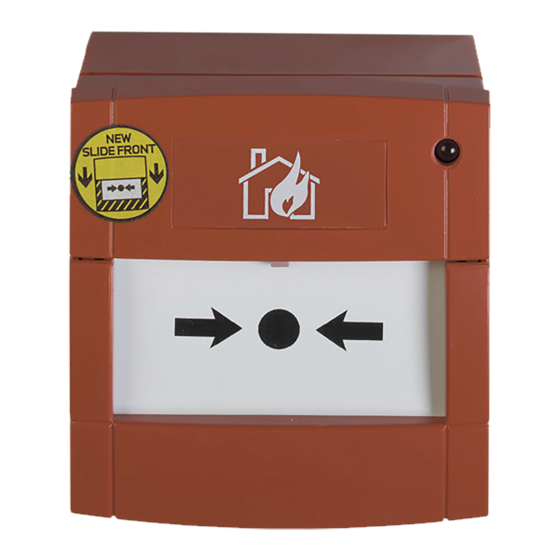

The DM2010 manual call point is designed for use in Aritech
addressable fire alarm systems and includes models for indoor
and outdoor use.
Installation
Caution:
This product must be installed by qualified personnel
adhering to the CEN/TS 54-14 standard and any other
applicable local authority laws.
Electrical connections

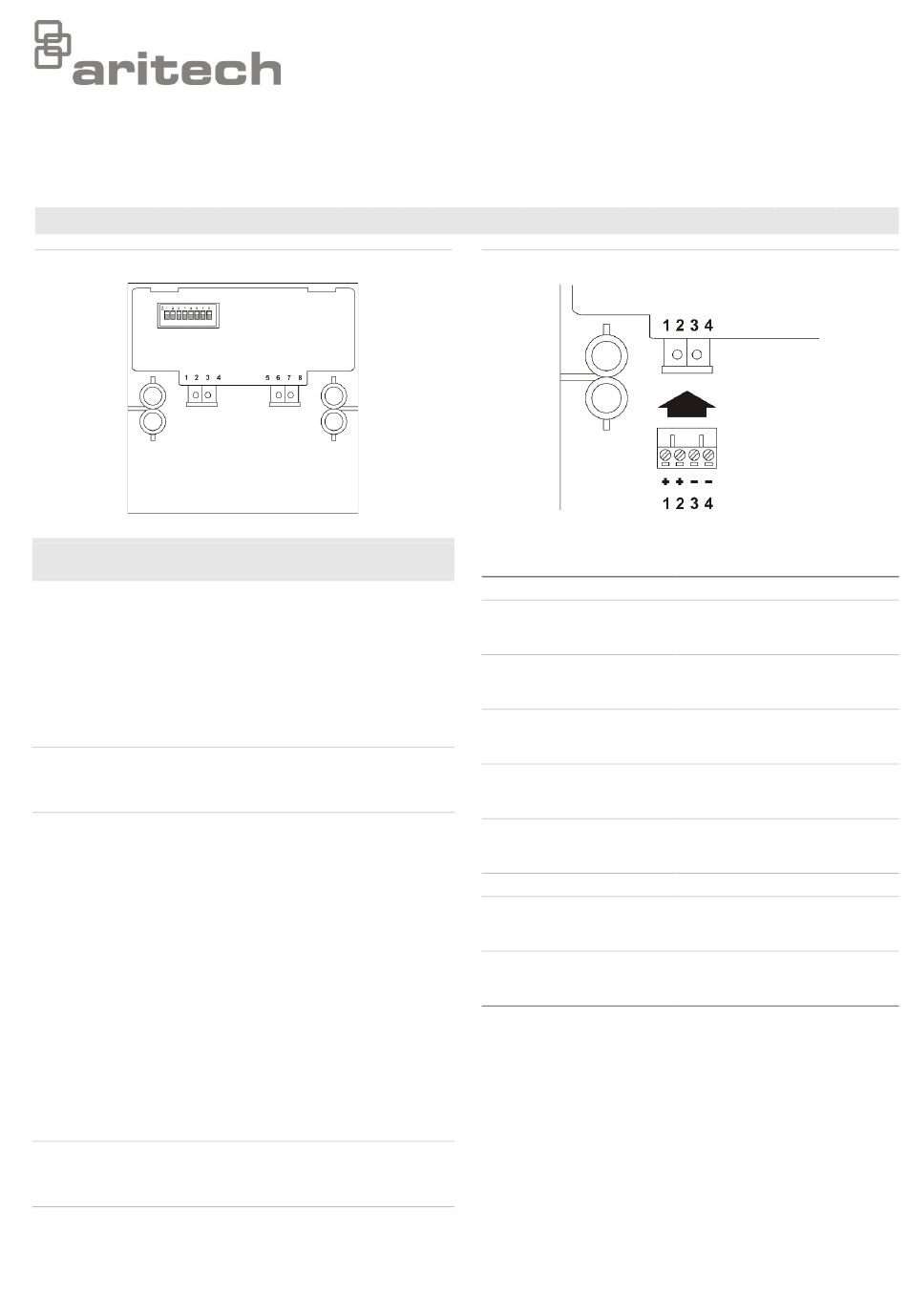

Connect to the DM2010 connection block (Figure
1. Line in (positive)
2. Line out (positive)
3. Line in (negative)
4. Line out (negative)
Addressing
Use the DIP switch (Figure 1) to allocate a device address
from 1 to 128 (see page 4).
Maintenance
Basic maintenance consists of a yearly inspection. Do not
modify internal wiring or circuitry.
Caution: When changing the resettable element from glass to
flexi, press the element after installation to confirm the
operation.
© 2022 Carrier. All rights reserved.
2
Specifications
Voltage
Current consumption
Standby
Alarm
Cable size
Minimum
Maximum
IP rating
DM2010, DM2010-18
DM2010E, DM2010E-18
Operating temperature
DM2010, DM2010-18
DM2010E, DM2010E-18
Storage temperature
DM2010, DM2010-18
2
) as follows:
DM2010E, DM2010E-18
Relative humidity
Dimensions (W × H × D)
DM2010, DM2010-18
DM2010E, DM2010E-18
Weight
DM2010, DM2010-18
DM2010E, DM2010E-18
[1] Excluding surface mount
1 / 4
17 to 28 VDC
max. 250 ųA
max. 2.5 mA
0.8 mm2
2.5 mm2
IP24D
IP67
−10°C to +55°C
−25°C to +70°C
−10°C to +70°C
−25°C to +70°C
10% to 95% noncondensing
89 x 93 x 27.5 mm [1]
97.5 x 93 x 27.5 mm [1]
180 g
350 g
