Muji MJ-HF2GL User Manual

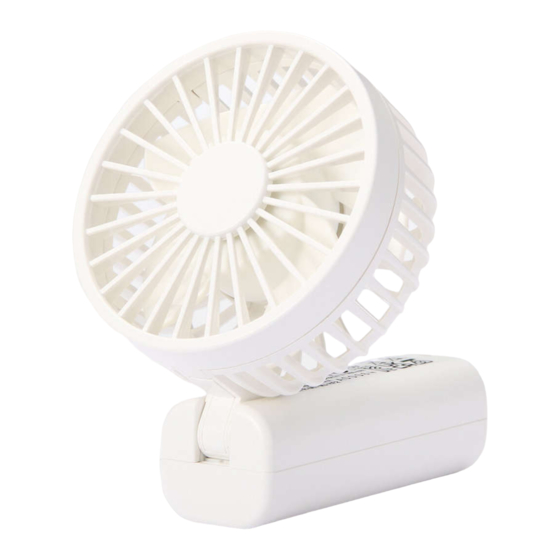

Rechargeable compact handheld fan
Hide thumbs

Advertisement

Table of Contents

Rechargeable Compact handheld fan
Model No. MJ-HF2GL
User Manual
• Thank you for your purchase.
• Read this User Manual before use to ensure correct use of the product.
Keep this User Manual after reading.

Table of Contents

For Household Use
Page
1 - 11
12
13 - 17
18 - 21
22
23
23 - 24
24 - 25
25 - 28
28
29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MJ-HF2GL and is the answer not in the manual?

Questions and answers

Related Manuals for Muji MJ-HF2GL

Summary of Contents for Muji MJ-HF2GL

  • Page 1: Table Of Contents

    For Household Use Rechargeable Compact handheld fan Model No. MJ-HF2GL User Manual • Thank you for your purchase. • Read this User Manual before use to ensure correct use of the product. Keep this User Manual after reading. Table of Contents...

  • Page 2: Safety Advice

    Safety Advice * Read this Safety Advice before use to ensure correct use of the product. * The warnings and cautions indicated here are intended to prevent harm to the users, or damage to the property. * The extent of injury and damage that may arise when the product is used incorrectly is classified and explained with the following symbols.
  • Page 3 DANGER Do not disassemble, repair, or modify. Doing so may cause overheating, fire, or electric shock. Do not put in fire, or heat up in a microwave or an oven. Doing so may cause battery leakage, rupture, or fire. Do not use in locations subject to high temperatures, such as inside vehicles in the sun, or near a heater.
  • Page 4 WARNING Do not let the Micro USB port and USB cable connector come in contact with water. Doing so may cause short circuit, resulting in electric shock, overheating, or fire. Do not let children use without supervision. Do not use or store within reach of small children. Doing so may cause unexpected accidents such as ingesting a part of the strap, or suffocation from the strap.
  • Page 5 WARNING Do not touch the USB cable during a thunderstorm. Doing so may cause an electric shock due to lightning strike. Do not use for a commercial purpose or do not leave it in public places. Continuous overload may cause product malfunction. Do not insert/remove USB cable with wet hands.
  • Page 6 WARNING Insert the USB connector securely. Not doing so may cause short circuit, resulting in electric shock, overheating, or fire. Leave some sag in the USB cable during use. If the USB cable is pulled or bent repeatedly, it may cause short circuit or cutting of the cord.
  • Page 7 CAUTION Do not use near curtains or hung laundry. They may get vacuumed in the grill, resulting in damage to the blade, or injury. Do not bring hair and strap near the grill. It may cause hair or strap to get caught, resulting in injury or damage.
  • Page 8 CAUTION Do not operate while charging. The battery generates heat, resulting in malfunc- tion, injury, or deterioration of the battery. Do not drop or drag. Doing so may cause malfunction, damage or injury. Do not use any USB cable other than the one for this product.
  • Page 9 CAUTION Do not install in the following locations. • Places with anything that is prone to be vacuumed such as near curtains. • Places where there is a risk of falling object. • Unstable surfaces. • Places with high humidity and temperatures, or exposure to water droplets.
  • Page 10 CAUTION When disconnecting the USB cable, always hold the end of the connector. Not doing so may cause malfunction. Remove the USB cable from the USB port when not charging. Not doing so may cause insulation deterioration, resulting in malfunction. Turn the power off and disconnect the USB cable before cleaning.
  • Page 11 CAUTION Use a commercially available USB-AC adapter with a rated output of DC 5.0 V and a current of 2.0 A or more, and use it properly following the instructions in the adapter’s instruction manual. Not doing so may cause malfunction. Regularly clean the product.
  • Page 12 DANGER If liquid from the rechargeable battery comes in contact with the eyes, immediately rinse with clean water and seek medical advice. Not doing so may cause damage to your eyes. WARNING Do not peel off or damage the external package. Doing so may cause overheating, rupture, or fire.

  • Page 13: Part Names

    Part Names Power / Wind Main unit speed button Air-inlet Light Air- Blade outlet (inside) Grill Handle Micro USB port Back (micro USB Type B) Accessories ● USB cable ● User Manual (This booklet) USB connector (USB Type A) USB cable Micro USB connector (micro USB Type B)

  • Page 14: Charging The Product

    Charging the Product ● Charge before first use, or first use after a long period of time. As a nature of rechargeable battery, it drains even when not in use and becomes low. CAUTION Do not operate while charging. The battery generates heat, resulting in malfunction, injury, or deterioration of the battery.
  • Page 15 ■ Charging with USB-AC adapter * USB-AC adapter is not included. CAUTION Use a commercially available USB-AC adapter with a rated output of DC 5.0 V and a current of 2.0 A or more, and use it properly following the instruction manual included with the adapter.
  • Page 16 ■ Charging with USB-AC adapter (continued) Light USB-AC adapter (commercially available) Micro USB USB connector connector * The body of the product and USB-AC adapter become warm while charging. This is normal. When charging is completed, unplug the USB-AC adapter and remove the micro USB connector from the micro USB port of the main unit.
  • Page 17 ■ Charging with USB port on a device such as PC (continued) * Please note that we will not be responsible for any data deleted or malfunction of the PC to which the product is connected, caused by use of the product. We will not be taking any actions for recovery of data or compensation of any damage.
  • Page 18 ■ Charging with USB port on a device such as PC (continued) Micro USB port Light Micro USB connector USB port connector * The body becomes warm while charging. This is normal. When fully charged, disconnect the USB connector from the USB port of the PC and pull off the micro USB connector from the micro USB port of the main unit.

  • Page 19: Operating The Product

    Operating the Product ● Using on a desk/table. Place on a levelled and stable surface. ● Using while carrying. Hold the handle firmly. Do not cover the air-outlet/inlet. A strap can be attached. CAUTION • Do not bring hair and strap near the grill. Doing so may cause hair and/or strap to get caught, resulting in injury and damage.
  • Page 20 Operating the Product Press Power / Wind speed button to turn and adjust the wind speed. • Starts operation Power / Wind on “Rhythm”. speed button CAUTION Do not operate while charging. The battery generates heat, resulting in malfunction, injury, or deterioration of the battery.
  • Page 21 Operating the Product Adjusting the wind speed • Every time the Power / Wind speed button is pressed, the wind speed changes. Wind speed can be selected from “Rhythm”, “Low”, “Medium”, and “High”. • The product turns off when the power button is pressed while operating on “High”...
  • Page 22 Operating the Product Adjusting wind direction Hold the handle and carefully ■ Range of Movement adjust the angle. Approx. 45° • The angle can be adjusted from 0° to 120°. Approx. 90° • Use at about 120° when using on a table/desk.

  • Page 23: Attaching A Strap

    Attaching a Strap Installing Strap is not included. When using a commercially available strap, choose one suitable for the weight and structure of the product. Use one with indication of maximum load. (1) Insert the strap’s loop through the attachment hole on the main unit. (2) Pull the end of the strap through the loop.

  • Page 24: Installation

    Installation CAUTION Do not install in the following locations. • Places with anything that is prone to be vacu- umed such as near curtains. • Places where there is a risk of falling object. • Unstable places/surfaces. • Places with high humidity and temperatures, or exposed to water droplets.

  • Page 25: Storing The Product

    Cleaning the Product CAUTION • Do not expose operating parts and internal electric parts to water. Doing so may cause electric shock or malfunction. • Do not use solvents such as benzine, thinner, alcohol, paraffin, or chemicals and abrasive for cleaning.

  • Page 26: Troubleshooting

    Storing the Product ● For a long-term storage, store in a place with room temperature/humidity with battery half-drained. For storage, place in a plastic bag after cleaning, and avoid direct sunlight and high temperature/humidity. * Store in an environment of 0 °C to 40 °C (32 °F to 104 °F). CAUTION Do not store in places subject to water.
  • Page 27 Troubleshooting Problem Cause Solution When operating On “Rhythm” mode, It is not a malfunc- the fan repeats 10- tion. on “Rhythm” seconds operation (on mode,the fan for 5 seconds, then off stops operating. for 5 seconds) cycle. The light does Check the power Power source of USB source.
  • Page 28 Troubleshooting Problem Cause Solution Use a USB-AC The light does If USB-AC adapter adapter with a not turn on red with a rated output rated output while charging. voltage exceeding 5 V (Continued) voltage 5V. is used, the battery may not be charged. Charging time is 5 V/500 mA USB-AC Use a USB-AC...

  • Page 29: Product Disposal

    Troubleshooting Problem Cause Solution The product As a nature of rechargeable It is not a becomes hot. battery, it may become malfunction. warm when being charged, and when the product is operating on “High” setting. If the body of the product Stop use in this case.

  • Page 30: Specifications

    Specifications Rechargeabl e battery Lithium-ion battery DC3.7 V, 1400 mAh Battery life Approx. 300 times (Discharge/Charge times) *1 Rated input DC5 V/1.4 A Rated power consumption Usage environ- 0 - 40 °C (32 - 104 °F) ment temperature Charging time Approx.
  • Page 31 4-26-3 Higashi-ikebukuro, Toshima-ku, Tokyo, JAPAN Imported to EU by MUJI Deutschland GmbH Kurfuerstendamm 236, 10719 Berlin, Germany Imported to UK by MUJI EUROPE HOLDINGS LIMITED 21a John Street, London WC1N 2BF, UK Imported to Australia by MUJI RETAIL(AUSTRALIA) PTY LTD Level 5 90 William Street Melbourne, VIC 3000, Australia Imported to USA by MUJI U.S.A.
  • Page 32 This symbol on the product, packaging, and/or accompanying document indicates that this product should not be disposed with normal household waste. This product shall be taken to the applicable collection point for recycling. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.
