1. Introduction

This system includes wireless strobe siren (hereinafter called "106AW") and one transmitter (hereinafter called " 106F ").
106AW with intelligent microprocessor, high decibels siren and high brightness flash light. Add 106F to 106AW and insert
the plug of 106F into the siren
106AW also can be used as an on-site alarm. You can add wireless accessories to the 106AW, such as remote control,
wireless magnetic door contact, wireless PIR detector, wireless smoke detector, wireless gas detector.
In the arming status, when the detector is triggered, 106AW will alarm with sound and flash light. 106AW is widely used in
banks, hospitals, power stations, schools, factories, shops and so on, to protect the personnel and property security.

2. Features

■ Wireless intelligent study coding, maximum support 20pcs remote controls, detectors or transmitters to 106AW.
■ Can work with PSTN alarm system and GSM alarm system, easy of use.
■ Compatible with PT2262 normal encoding(Resistance 1.5M-4.7M) and a million groups encoding(Resistance of
150K-470K) detectors and remote controls.
■ Built-in Ni-Hi rechargeable battery and automatically switchable upon power failure.
■ EEPROM information protection, information never lost, to ensure information security.
■ Both AC and DC, twenty-four-hour ordinary guarding without interruption.
Homcloud code: WL-RFSLS
Model n°: WL-106AW

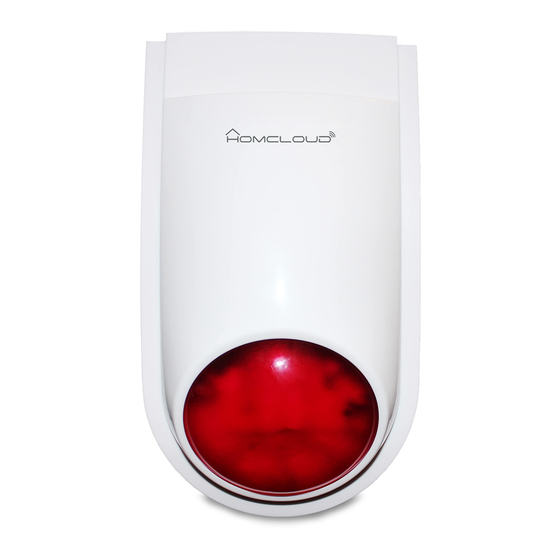

3. Wireless strobe siren picture
Wireless RF Alarm Siren Homcloud
outlet of alarm host, and then 106F and 106AW can be one set of wireless strobe siren.
