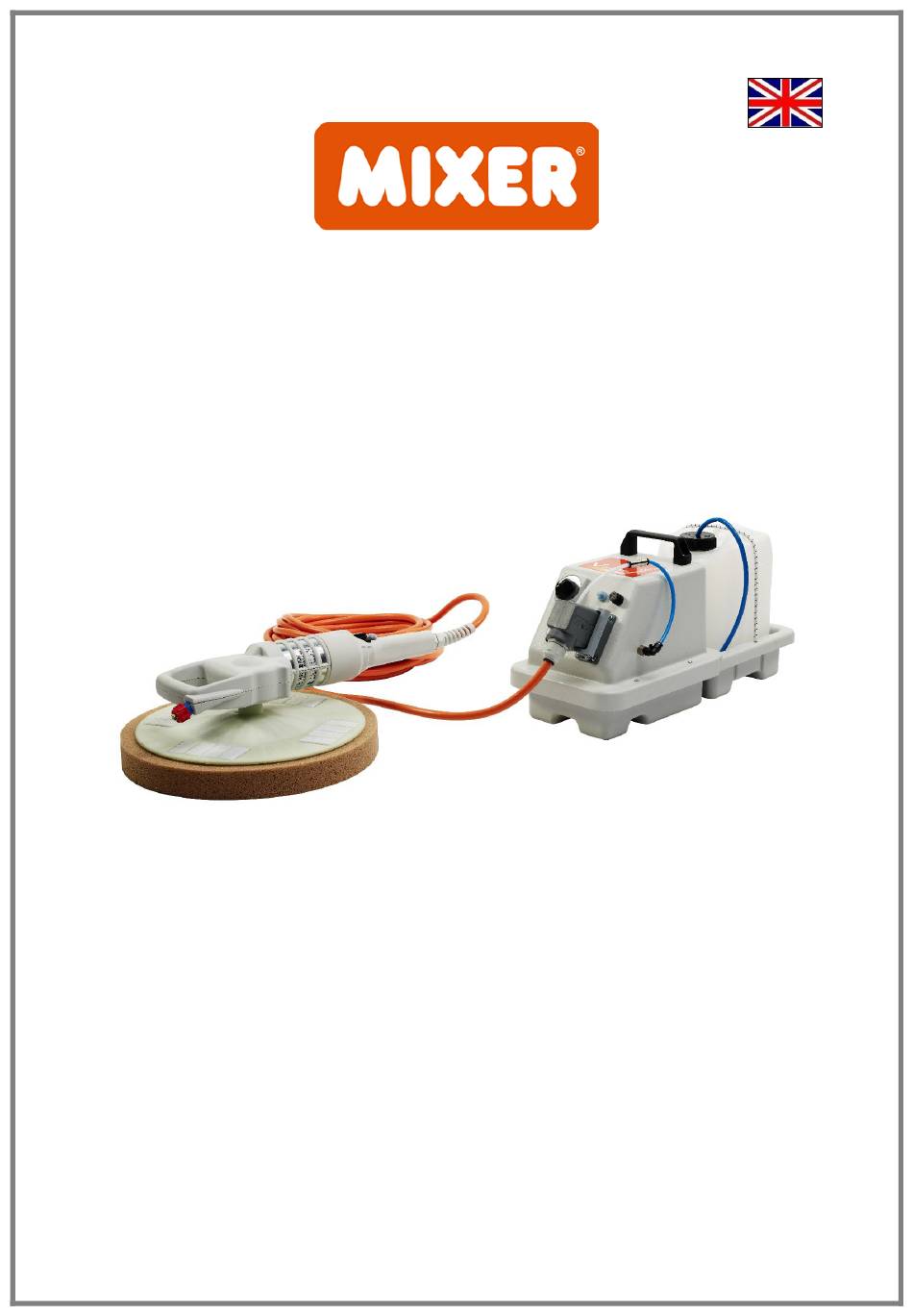

- Page 1 TROWEL MIXER VERTIGO MACHINE MANUAL OF INSTRUCTIONS ORIGINAL INSTRUCTIONS Revision n…… of …… MIXER TECHNOLOGY srl Via dei Carabinieri, 45, 36040 Torri di Quartesolo (VI) Italy www.mixersrl.com...
-
Page 2: Table Of Contents
STOP AND PAUSE OF THE MACHINE ............11 MACHINE SWITCHING OFF ..............11 CLEANING THE MACHINE ................ 11 RESET GEARMOTOR PROTECTION INTERVENTION ........12 ORIGINAL ACCESSORIES ON REQUEST............. 13 WARRANTY ................... 14 Instruction Manual Mixer Plus Mixer Technology srl pag.2... -
Page 3: Ce Marking
RESERVED RIGHTS The contents on this manual can’t be reproduced and disclosed (totally or partially) without written authorization of the Manufacturer. Instruction Manual Mixer Plus Mixer Technology srl pag.3... -
Page 4: Technical Data
TECHNICAL DATA TROWEL MIXER VERTIGO MACHINE The models available of the machine Protection grade of command and control: IP44 Protection grade of trowel: IP20 Hopper capacity: 5 litres Power cable length: 3 meters DIMENSIONS OF THE MACHINE Instruction Manual Mixer Vertigo Mixer Technology srl pag.4... - Page 5 Instruction Manual Mixer Vertigo Mixer Technology srl pag.5...
-
Page 6: Parts List
General switch (ON-OFF breaker with release coil) Spray water pipe connection Nozzle water spray Disk support handle Gearmotor “1 – 0” trowel switch Button spray water Handle Power cord trowel Sponge with velcro Disk with velcro Instruction Manual Mixer Vertigo Mixer Technology srl pag.6... -
Page 7: Use Denomination
Separate the parts making up the machine according to the different construction materials (plastic, copper, iron, etc...). Lubricant liquids and any other fluids shall absolutely not be dispersed in the environment. Instruction Manual Mixer Vertigo Mixer Technology srl pag.7... -
Page 8: Processing Phases
Connect the plug to the power source placed on the overall distribution and supply (provided by the regulator). Instruction Manual Mixer Vertigo Mixer Technology srl pag.8... -
Page 9: Control Panel
Thermal protector When it is activated, signals the failure to the (Gearmotor) trowel motor (for reset, press the button). “Thermal” Trowel power outlet It is connected the trowel power plug. Instruction Manual Mixer Vertigo Mixer Technology srl pag.9... -
Page 10: Trowel Command
8. Make sure to have read and understood in all its parts the¨ Instructions for use and maintenance ¨and the technical data sheets of pre-mixed products to be used for the processing; Instruction Manual Mixer Vertigo Mixer Technology srl pag.10... -
Page 11: Switching On Machine
6. Unplug the water spraying tube from the water spaying outlet located on the command and control panel; 7. Perform a thorough cleaning of the machine; CLEANING THE MACHINE 1) Clean with a dry cloth; Instruction Manual Mixer Vertigo Mixer Technology srl pag.11... -
Page 12: Reset Gearmotor Protection Intervention
5. Only after the removal of the cause and/or anomaly and based on mechanical and/or electric personnel opinion restart the machine according to the switching-on procedure. Instruction Manual Mixer Vertigo Mixer Technology srl pag.12... -
Page 13: Original Accessories On Request
3M00300214 Grey sponge 3M00300220 Scraping Bolded disk to scratch Trowel disk raw abs with 3M00302700 Traditional Coarse Velcro 3M00302703 Spatula disk 4 blades Smoothing plaster and marbles 3M00302709 Spatula disk 6 blades Instruction Manual Mixer Vertigo Mixer Technology srl pag.13... -
Page 14: Warranty
8) It is explicitly agreed upon, that the manufacturer shall not be held responsible for any liability following any possible damages that the purchasers may suffer resulting from loss of or diminished production due to possible construction defects subject to this warranty. Instruction Manual Mixer Vertigo Mixer Technology srl pag.14... - Page 15 Thank you for choosing our product MIXER TECHNOLOGY srl Via dei Carabinieri, 45, 36040 Torri di Quartesolo (VI) Italy www.mixersrl.com Instruction Manual Mixer Vertigo Mixer Technology srl pag.15...
