Service Notes
Tubes
Tubes are consumables, as they have a given usable lifespan. They are part of the heart of
the tone, so keeping correctly operating tubes is essential. Tubes can fail catastrophically
or gradually, and it's good to know what to look for if they start to go bad. Periodically
inspect them and look to see if anything inside the tube is glowing cherry red other than
the normal orange glow of the filament. This would indicate a situation where the tube
is conducting more current than it is capable of handling and most likely about to fail.
Two other conditions to observe are: 1) filaments not glowing or 2) a miniature fireworks
display inside the tube. Any of the above conditions indicate serious problems with the
tube and should be taken care of immediately. Tubes quite often are the cause of spurious
noise in the amp. Microphonic tubes will squeal or rattle with the vibrations induced by the
speaker cabinet. If suspected, tap each tube lightly with a pencil with the amp powered
up—the suspect tube will many times let you know. Note that there is a normal metallic
clinking when doing this, but a microphonic tube will be obviously louder.
Replacing preamp tubes will not require any adjustment, but the power tubes will need

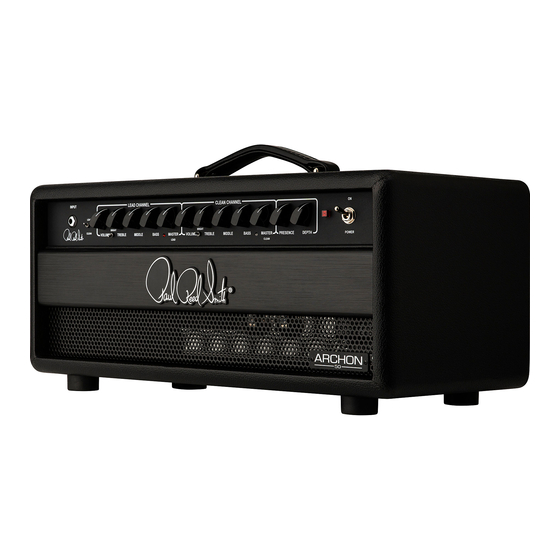

ARCHON 50 HEAD AND COMBO
rebiasing to assure proper operation. After power tube replacement, initially inspect the
USER'S MANUAL
tubes often to assure there are no "cherry red" components within the tube. Tubes today
can have a wide variety of tolerances and a re-bias is highly recommended with new ones.
Power tube bias should be adjusted to 30 mV, +/- 5 mV. If power tubes are mismatched by
less than 5 mV, average the two around 30. Mis-matched tubes beyond 5 mV will induce
noise and may cause a degradation of tone. It is always recommended to purchase and
install "matched power tube sets.
NOTE! Never power up the amplifier without power tubes installed, as voltages can
rise to levels that may damage internal components.
NOTE! Capacitors may retain an electric charge and can be dangerous even when the
unit is off, unplugged, and has not been played for an extended period of time. USE
CAUTION!!!!
