Jabra DRIVE - Car Audio Speaker Manual

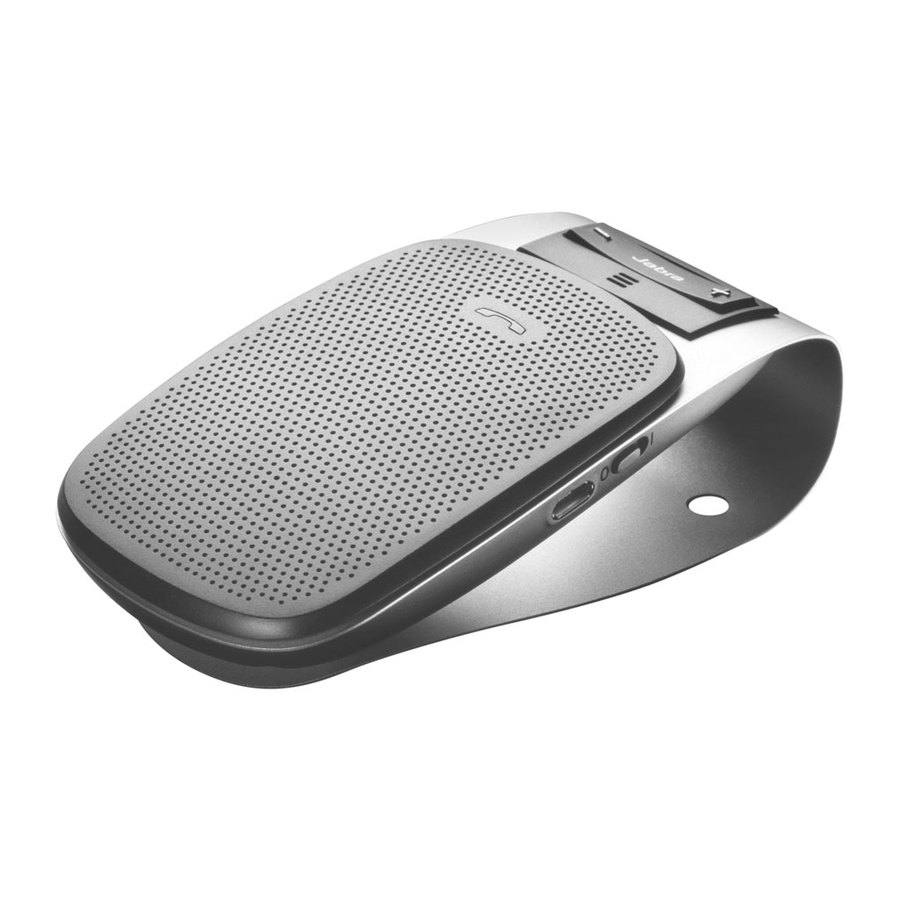

ABOUT YOUR JABRA DRIVE

1. Status light
2. Answer/end button
3. Volume control
4. Integrated Visor Clip
5. Microphone
6. On/off switch
7. Micro USB charging connector

WHAT YOUR JABRA DRIVE CAN DO

Your Jabra DRIVE lets you do all this:

• answer calls
• End calls
• reject calls*
• Voice dialing*
• Last number redial*
• Mute
• Third party calling*
• adjust volume
• Transmit mobile music, podcasts and directions from a GPS app
• advanced Multiuse™ – Stay connected to two active bluetooth devices at the same time

* Phone dependent

Specifications

• Talk time up to 20 hours/Standby time up to 30 days
• Charging time approximately 2 h. 30 min.
• Digital sound enhancement via DSP technology
• Noise cancellation through DSP
• Echo cancellation through DSP
• a2DP (advanced audio Distribution Profile) for transmitting music, podcasts and directions from a GPS app on your phone
• Jabra Status Light (battery status, call status, connection status)
• Size: H104 mm W56 mm D18 mm
• Weight 100 grams
• Operating range up to 10 meters (approximately 33 feet)
• Supported bluetooth profiles: HFP, HSP, a2DP
• bluetooth specification version 3.0
• e-SCO for enhanced audio quality
• rechargeable battery with charging option from car charger or via USb cable

HOW TO PRESS THE BUTTONS

WHAT THE LIGHT MEANS

GETTING STARTED

You should follow three steps before using your speakerphone

1. Charge your Jabra DRIVE
2. Turn your Jabra DRIVE on
3. Pair your Jabra DRIVE with your mobile phone

The Jabra DRIVEis easy to operate. The answer/end button on the speakerphone performs different functions depending on how long you press it.

CHARGING YOUR JABRA DRIVE

Make sure that your speakerphone is fully charged for two hours before you start using it.

Use the USB cable to connect Jabra DRIVE to the car charger. Plug the car charger into your car's power outlet. The status light will light up red while charging. When fully charged the status light turns green. Jabra DRIVEcan be charged outside your car by only using the USb cable. Use only the charger provided in the box - do not use chargers from any other devices as this may damage your speakerphone.

Please note: The lifetime of the battery will be significantly reduced if your device is left uncharged for a long period. We therefore recommend that you recharge your device at least once a month.

TURNING YOUR JABRA DRIVE ON AND OFF

Slide the on/off switch to turn the speakerphone on or off.

Sleep mode and Auto OFF
When not connected to a phone, the speakerphone turns off automatically after 10 minutes. Use the on/off switch to turn the speakerphone on again.

PAIRING YOUR JABRA DRIVE WITH YOUR PHONE

Jabra DRIVE is connected to a mobile phone using a procedure called 'pairing'. by following a few simple steps, a phone can be paired with the speakerphone in a matter of minutes.

1. Activate Bluetooth® on your mobile phone
   Please check the manual for your mobile phone.
2. Put the speakerphone in pairing mode
   When you turn on your Jabra DRIVEfor the first time, the speakerphone will automatically start up in pairing mode – i.e. it can be detected by your phone. When the speakerphone is in pairing mode the status light will flash rapidly blue.
3. Set your Bluetooth® phone to 'search' for the JABRA DRIVE
   Follow your phone's instruction guide. First make sure that Bluetooth® is activated on your mobile phone. Then set your phone to search for devices. This usually involves going to a 'setup,' 'connect' or 'Bluetooth®' menu on your phone and selecting the option to 'search' or 'add' a Bluetooth® device.*

* Phone dependent

4. Your phone will find the Jabra DRIVE
   Your phone will find the speakerphone under the name "Jabra DrIVE". Your phone then asks if you want to pair with the Jabra DrIVE. accept by pressing 'Yes' or 'OK' on the phone and/or confirm with the passkey or PIN = 0000 (4 zeros). Your phone will confirm when pairing is complete.

Manual pairing mode
If you wish to use the speakerphone with a different phone, or if the pairing process was interrupted, you can manually set the speakerphone to pairing mode.

Turn the speakerphone on. Press and hold the answer/end button for approximately 5 seconds until the status light stars blinking rapidly blue. Then repeat steps 2. and 3. in the above pairing guide.

CONNECTING WITH YOUR PHONE AUTOMATICALLY

Pairing is only needed the first time a speakerphone and phone are used together. When the speakerphone and phone have been paired once they will automatically connect when the speakerphone is on and Bluetooth® is activated on the phone. The speakerphone can be used when it is "connected" to the phone. If the devices are paired, but do not immediately connect, tap the answer/end button.

PLACING JABRA DRIVE IN YOUR VEHICLE

The Jabra DRIVEsits discreetly and conveniently on the sun visor using the integrated metal clip. The product can be easily taken on and off the sun visor. For optimal sound quality place the Jabra DRIVE right in front of you and speak directly into the speakerphone.

ADDITIONAL FEATURES

Play music and GPS directions*
Make sure that the speakerphone and mobile phone are connected. When you play music or GPS application directions from your mobile phone it will automatically transfer to your speakerphone. If your phone does not allow this feature, press the answer/end button to transfer the music to the speakerphone. Music or GPS directions will automatically be paused when you have an incoming call. When the call is ended it will start playing again.

Easy Voice Guidance**

• Easy voice guidance informs you about your connection and low battery status.
• Connected is announced when the in-car speakerphone reconnects with your phone.
• Low battery is announced every 10^th min when there is less than 30 min. talk time on your Jabra DrIVE.

Advanced Multiuse™

• Jabra DRIVEcan be connected to two mobile devices at the same time. To learn more about advanced Multiuse™ please go to the HOW TO HaNDLE CaLLS FrOM TWO MObILE PHONES section

* Phone dependent

** available ONLY in English

HOW TO HANDLE CALLS FROM A SINGLE PHONE

* Phone dependent

HOW TO HANDLE CALLS FROM TWO MOBILE PHONES

***active calls on the two connected phones – other phone's call is on hold Jabra DRIVE

TROUBLESHOOTING & FAQ

I hear crackling noises

Bluetooth is a radio technology, which means it is sensitive to objects between the speakerphone and the connected device. It is designed for the speakerphone and the connected device to be used within 33 feet (10 meters) of each other, with no major objects in the way (walls, etc.).

I cannot hear anything in my speakerphone

• Increase the volume in the speakerphone.
• Ensure that the speakerphone is paired to a device that is playing.
• Make sure your phone is connected to the speakerphone by tapping the answer/end button.

I am having pairing problems

• You may have deleted your speakerphone pairing connection in your mobile phone. Follow the pairing instructions.

I want to reset the pairing list in my speakerphone

The speakerphone registers a list of up to 7 mobile phones. To remove the list:

1. Put your Jabra DRIVEin the pairing mode by long press on the answer/end button;
2. The press Volume down button while holding your finger on the answer/end button.

A beep and a purple flash of the status light indicate the list was removed from the speakerphone memory. The next time you power on, the speakerphone will go into pairing mode as the first time you powered your new Jabra DRIVE on.

Will the Jabra DRIVE work with other Bluetooth equipment?

• The Jabra DRIVEis designed to work with bluetooth mobile phones. It can also work with other bluetooth devices that are compliant with bluetooth version 1.1 or higher and support a headset, hands-free and/or advance audio distribution profile.

I cannot use Reject call, call on hold, Redial or voice dialing

• These features are dependent on the ability of your phone to support a hands-free profile. Even if the hands free profile is implemented reject call, call hold and voice dialing are optional features which are not supported by all devices. Please consult your device manual for details.

Please note that some features can only be operated from the primary device e.g. voice dial using Jabra DRIVEwith 2 mobile phones.

NEED MORE HELP

1. Web: www.jabra.com
   (for the latest support info and online User Manuals)
2. E-mail:

3. Phone:

TAKING CARE OF YOUR JABRA DRIVE

• Always store the Jabra DRIVEwith the power off and safely protected.
• Avoid storage at extreme temperatures (above 45°C/113°F – including direct sunlight – or below -10°C/14°F). This can shorten battery life and may affect operation. High temperatures may also degrade performance.
• Do not expose the Jabra DRIVEto rain or other liquids.

GLOSSARY

1. Bluetooth is a radio technology that connects devices, such as mobile phones and headsets, without wires or cords over a short distance approx. 33 feet (10 meters). Get more information at www.bluetooth.com.
2. Bluetooth profiles are the different ways that bluetooth devices communicate with other devices. bluetooth phones support the headset profile, the hands-free profile or both. In order to support a certain profile, a phone manufacturer must implement certain mandatory features within the phone's software.
3. Pairing creates a unique and encrypted link between two bluetooth devices and lets them communicate with each other. bluetooth devices will not work if the devices have not been paired.
4. Passkey or PIN is a code that you enter on your mobile phone to pair it with your Jabra DrIVE. This makes your phone and the Jabra DRIVErecognize each other and automatically work together. The passkey for all Jabra products is 0000.
5. Standby mode is when the Jabra DRIVEis passively waiting for a call. When you 'end' a call on your mobile phone, the speakerphone goes into standby mode.

Dispose of the product according to local standards and regulations.

www.jabra.com/weee
