Summary of Contents for Solectek ANT-PNL-22

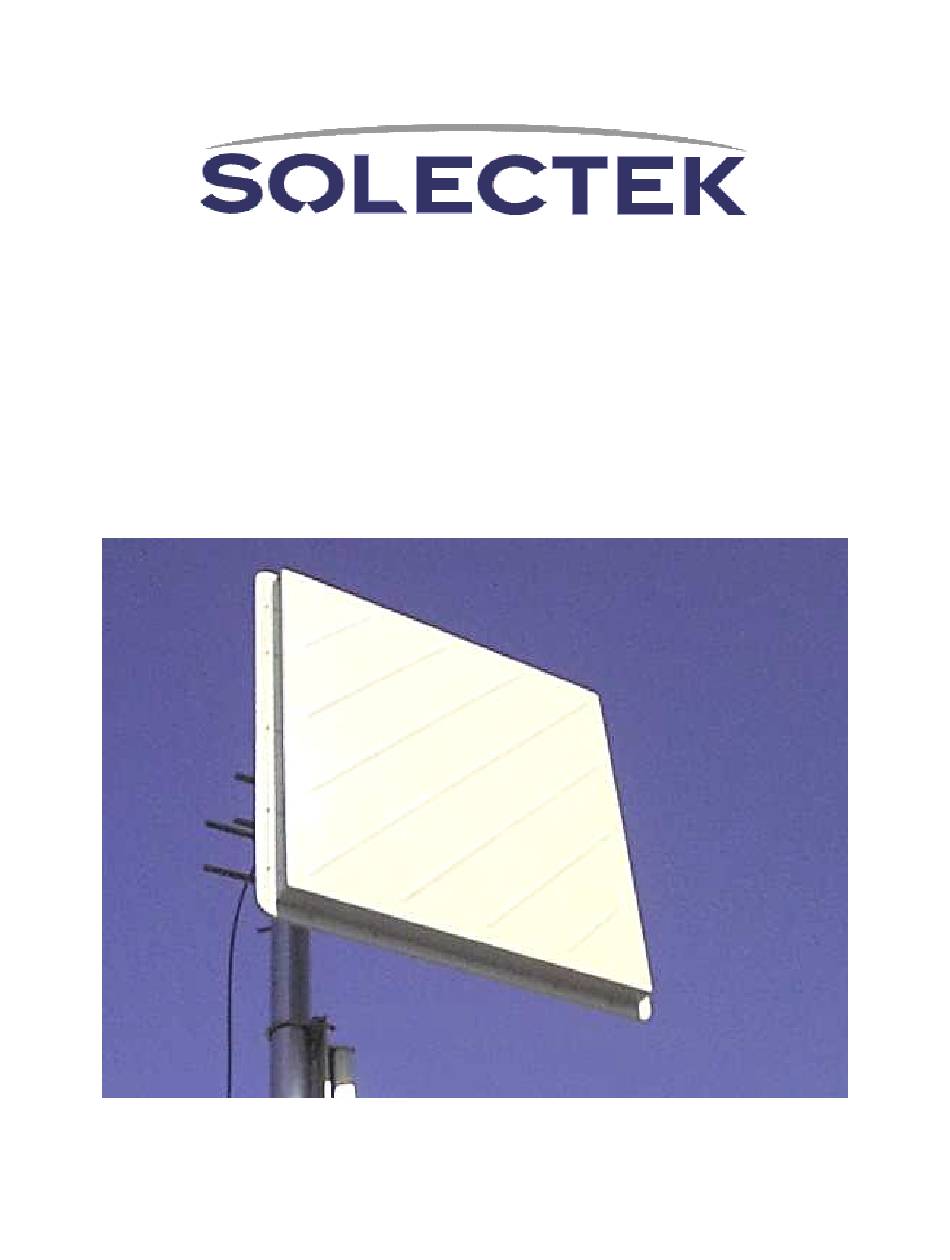

- Page 1 Wireless Products ANT-PNL-22 (Standard Mount) ANT-PNL-22-U (Universal Mount) Installation Guide Part #11243a Page 1 of 9...
- Page 2 Solectek ANT-PNL-22 Installation Guide This antenna connects to the ODU (Outdoor Unit) supplied with Solectek MP-Series and certain AB-Series wireless bridge/routers. Antenna specifications are as follows: Frequency 2.4000 to 2.4835 GHz Net Gain 21.2 dBi 3dB beam width 10 degrees Front to back ratio >32 dB...
- Page 3 Contact your Solectek Certified Reseller to resolve any shortages. This is the “Standard Mount” used on the ANT-PNL-22. The single arm allows for full elevation and azimuth adjustment when mounted on the mast. The optional “Universal Mount” used on the ANT-PNL-22-U is described starting on Page 7.
- Page 4 Install the mast clamp strap as shown. The strap makes a channel with the “V” cut in the mounting arm. The mast pipe will pass through this channel. Do not tighten the nuts. Install the antenna and pre- assembled bracket on the mast. Tighten the two nuts so the antenna is held securely to the mast.
- Page 5 Use a bubble level (carpenter’s level) to make sure the antenna is set to the vertical position before attempting the initial antenna alignment. It is usually not necessary or desirable to change this adjustment for normal operation. Once the antenna is checked with a bubble level and set vertically, tighten the “wrist bolt”...
- Page 6 Use the sealer strips supplied with the antenna to seal the connector. Peel the paper backing from the strips and stretch the material while winding it around the connector. Be sure to cover all exposed metal. This large (N- type) connector will probably require two strips for a proper, weather tight seal.
- Page 7 Stretch the black sealant material while wrapping it around the connector. It should be possible to get a good seal on this small (TNC-type) connector with only one sealant strip. If necessary, use a second strip to ensure a weather-tight seal. This is the optional “Universal Mount”.
- Page 8 After setting the elevation with the bubble level, lock the hinge bolt and the lock nuts for a permanent and secure elevation setting. Install the supplied antenna to ODU cable. The cable cannot be installed backwards, as the connectors are different on each end.
- Page 9 Use Ty-Wraps or other fastening material to hold the antenna cables securely against the mast. All Solectek antennas are set to vertical polarity at the factory. To change the polarity, locate the four small bolts on the back of the antenna which fasten the...
- Page 10 Subject to the conditions and procedures set forth below during the warranty period, Solectek will repair or replace, at Solectek's option, such Solectek products or parts thereof which, on inspection by Solectek, are found to be covered by the limited warranties set forth below. The warranty period for new hardware products, which are listed on Solectek’s U.S.
- Page 11 $300 and the return freight cost. If upon inspection by Solectek, a unit returned under warranty is found to be defect free, Solectek reserves the right to charge the customer a $500 test fee.
-
Page 12: Disclaimer Of Warranties
DISCLAIMER OF WARRANTIES EXCEPT AS EXPRESSLY SET FORTH HEREIN, SOLECTEK HEREBY EXPRESSLY DISCLAIMS ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE. WAIVER OF CONSEQUENTIAL DAMAGES SOLECTEK HEREBY DISCLAIMS ANY AND ALL SPECIAL,... - Page 13 Subject to the conditions and procedures set forth below during the warranty period, Solectek will repair or replace, at Solectek's option, such Solectek products or parts thereof which, on inspection by Solectek, are found to be covered by the limited warranties set forth below.
- Page 14 Warranty is given for twelve (12) months from the date of product shipment from Solectek for new products and ninety (90) days for all spare parts and R- part numbers. Solectek will honor this warranty upon receiving proof of purchase.
- Page 15 LOST PROFITS, LOSS OF OR DAMAGE TO ANY OTHER COMPUTER EQUIPMENT OR RELATED DATA) WHICH MAY RESULT FROM BREACH OF ANY WARRANTY, OR ARISING OUT OF THE USE OR INABILITY TO USE ANY SOLECTEK PRODUCT, EVEN IF SOLECTEK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. International Warranty...
