Backyard Expressions 914920 Assembly Instructions

DO NOT RETURN THIS PRODUCT TO THE STORE. FOR
MISSING PARTS OR QUESTIONS ABOUT THIS PRODUCT,
PLEASE EMAIL US AT ddiparts@ddicorp.com
612-888-7550

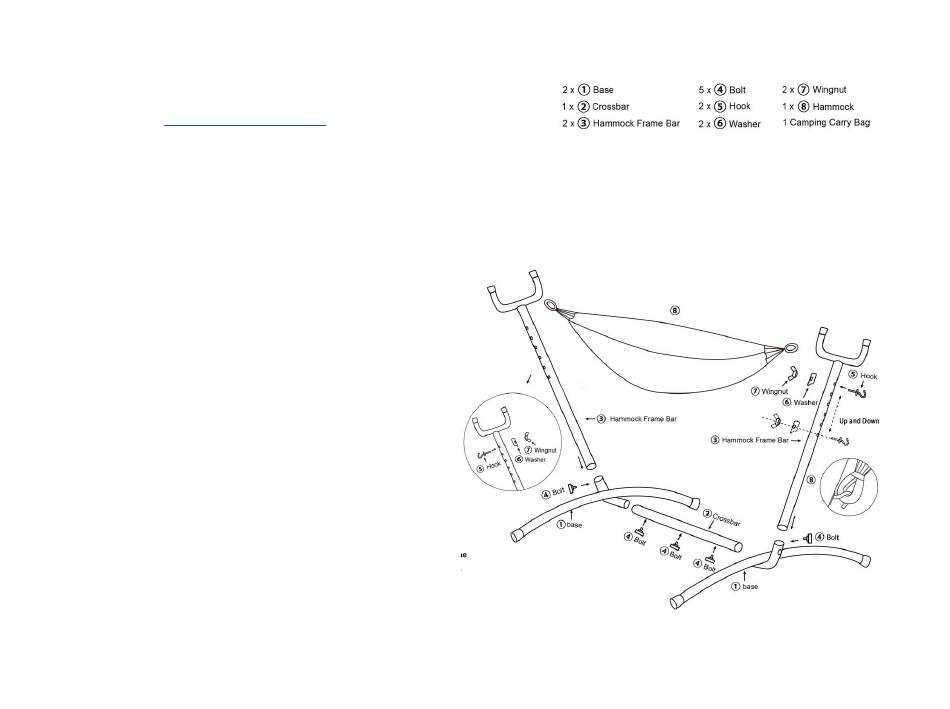

1. Connect the crossbar (2) with the bases (1),
screw the bolts (4) tightly into place.
Connect the hammock frame bar (3) to the bases (1), screw the bolts (4) tightly into place.
2.
3. Insert the hook (5) into the appropriate hole
to suit the hammock size.
4. Attach the washer (6) and screw on the wing
nut (7) to secure the hook.
5. Attach the hammock (8) to the hooks (5);
adjust hooks as necessary.
WARNING: Do not leave children unattended while on
the hammock. Not to be used as a swing. Always enter
your hammock in the middle. Do not sit or lean past
the base legs. Check the hook and wing nuts are
positioned correctly and tightened prior to each use.
Maximum weight capacity: 550 lbs.
914920 Assembly Instructions
or call us at

PARTS LIST
