Smart Switch HNS220TD Owner's Manual

HNS220TD
OWNER'S MANUAL

1. FEATURES

• Push button timer with ON/OFF and ON/RESTART operations
- Quick tap turns power ON/ OFF, or
- Sustained 2 seconds press restart the timer
• Adjustable Timer Range from 10 seconds to 15 hours
• Configurable blue LED indicator
- Indicator ON or OFF when power ON, or
- Indicator ON or OFF when power OFF
• Configurable Switch Mode
- Power ON during timing (NO - Normally Open), or
- Power OFF during timing (NC - Normally Closed)
• Suitable for a wide range of load types, including motor loads up to 8A
• Compatible with HPM and Clipsal style wall plates with push buttons provided for a perfect fit
• Very low 80mW standby power
• Remote switch compatible
• Timer set to 30 minutes out of box

2. OPERATING CONDITIONS

• Operating Voltage:
• Operating Temperature:
• Certification Standard:
• Maximum Load:
• Timer Range:
• Timer Accuracy:
• Terminals:
Note: Operation at temperature, voltage or load outside of the specifications may cause permanent damage to the unit.

3. LOAD COMPATIBILITY

Note: This manual was correct at the time of manufacture. For the latest version of the manual and any technical or
safety updates refer to the website:- www.sclick.com.au or scan the QR code with a mobile phone.

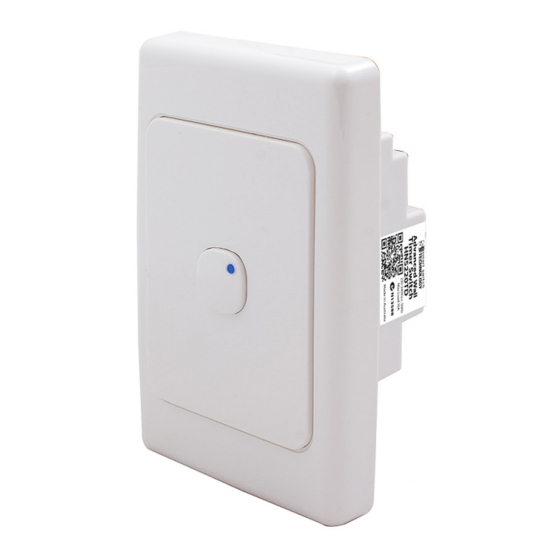

HNS220TD Advanced Wall Timer Switch 3-Wire
Scan our QR code
with your phone to go
directly to our website
for technical information
230 – 240V a.c. 50Hz
0 to +50 °C
CISPR15, AS/NZS 3100, AS/NZS 60669.2.1
10AX
10 seconds to 15 hours
± 0.5%
Screw Terminals suit 1.5mm
LOAD TYPE
Incandescent / 240V Halogen
Fluorescent Tube with Electronic or Iron Core Ballast
Compact Fluorescent
Electronic Transformer
LED
Wirewound Transformer
Fan Motors
Heating Elements
to 4.0mm stranded (bootlace terminal recomended)
2 2
COMPATIBILITY
10AX
10AX
10AX
10AX
10AX
10AX
8A
10AX
CP14731 Rev 2, 8TH June 2018
3-WIRE
SUITABLE FOR
FANS, MOTORS
OR IRON CORE
BALLASTS
