Aquarium Systems VisiTherm VTX MINI 10W/25W - Heater Manual

INTRODUCTION

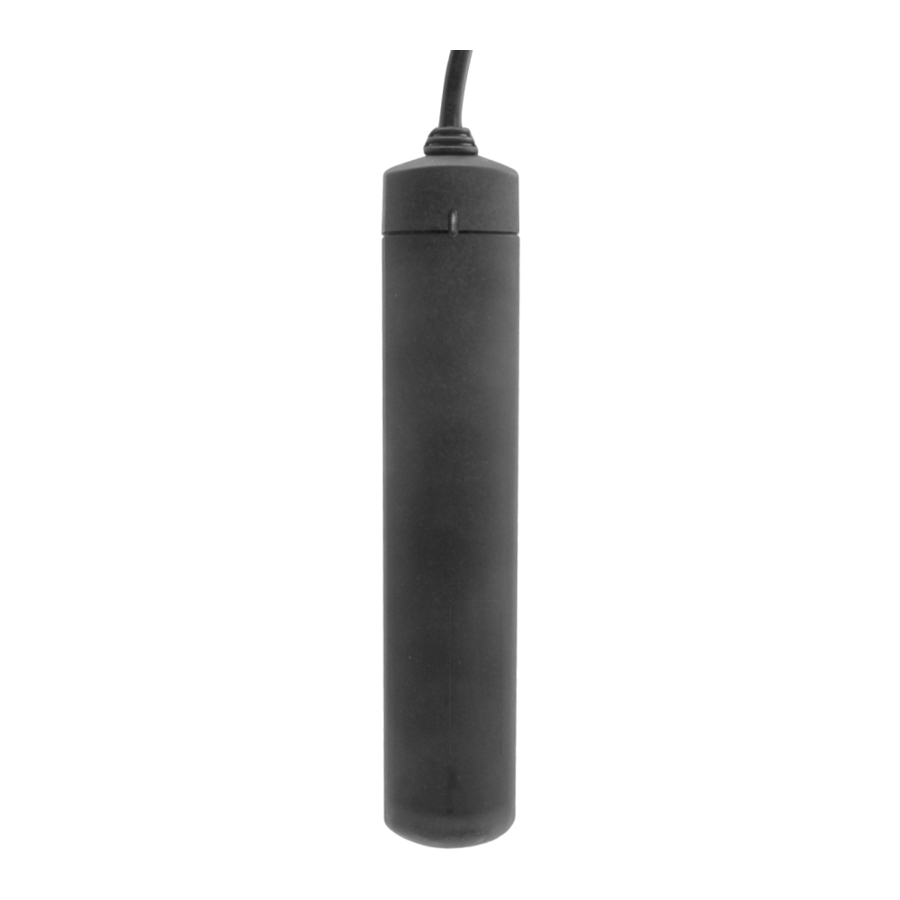

The Visitherm Mini is an automatic, submersible heater for use only in indoor aquariums and terrariums. If it is used for any other purpose, it is covered by the manufacturer's guarantee. The casing is manufactured with an extra tough polymer, making it extremely resistant to knocks and sudden temperature changes.
A red light is visible when the heater is working.

Water temperature Increase

PLEASE READ THE SAFETY INSTRUCTIONS

Visitherm Mini is in conformity with official safety standards (EN 603352-55).

1.
   Turn off or disconnect all the appliances inside the aquarium or pond before beginning any sort of installation or maintenance work..
2. Check the voltage of the heater and ensure it corresponds to the main power supply.
3. Do not plug the heater into the main supply until it is in the water.
4. The heater must be immersed to at least the "MINIMUM".
5. The supply cord must not be repaired or replaced. If it is damaged replace the entire heater.
6. The heater can be immersed up to a maximum of 1,2m in the water, which is indicated by the symbol .
7. When the heater is plugged into the mains, ensure that the lowest part of the supply cord is lower than the socket, to avoid any drops water that are on the supply cord flowing into the socket (fig. 1).

8.
   The symbol means that the heater must be used only indoor.
9. We recommend that heater and other electrical aquarium devices should be connected to power supplies with ground fault circuit interrupters ldn 30 mA.
10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
11. Children should be supervised to ensure that they do not play with the appliance because this device is not a toy.

FIGURES

1. Waterproof double insulation
2. Overheat protection
3. Reinforde plastic

OPERATING INSTRUCTIONS

Suctions cups are supplied. Fit the suckers to the heater, locating them in the specific holes (fig. 2).

Place the heater inside the aquarium in a situation with good water circulation. For safety purposes, we recommend checking the water temperature using a precision thermometer; the heater is always working. Remove the heater from the aquarium during the summer period.

MAINTENANCE

The heater requires no maintenance, except for a periodical cleaning of any deposits on the casing. TO REMOVE DEPOSITS USE ONLY WATER AND VINEGAR.
DO NOT USE DETERGENTS, SOLVENTS OR ACIDS.

DO NOT TRY TO DISASSAMBLE THIS HEATER IN ANY WAY, NOR PULL THE SUPPLY CORD.
ATTENTION: Unplug the heater from the mains before removing from the aquarium water, otherwise the thermal protection feature will operate after a few minutes. In the version provided with self resetting thermal cut off, it can be used again once the heater has cooled down.

WARRANTY

Visitherm Mini is guaranteed, in accordance with the European Directive 1999/44 CE, from defects in materials and from manufacturing for a period of 2 years from the date of purchase. If the product should not work in the connect way in the first two years from the date of purchase, return it to the area retailer. The heater will be replaced at no additional cost. FOR THE GUARANTEE SERVICE, RETURN THE APPLIANCE ENCLOSING THE PURCHASE RECEIPT AND A DETAILED ACCOUNT OF THE REASONS FOR THE CLAIM.
The heater must be packed accurately and protected from any damage during transport.
The guarantee is not valid in the event of improper use of the product, not for damage caused by tampering or negligence on the part of the purchaser with the consequential loss of fish or other animals, personal damage, change of ownership or any other damage that may arise.

WEE SYMBOL

2002/96/CE • EN50419
UK/IRL - Correct Disposal of This Product (Waste Electrical & Electronic Equipment).

(Applicable in the European Union and other European countries with separate collection systems). This marking shown on the produci or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

• Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.
• Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

www.aquariumsystems.eu
