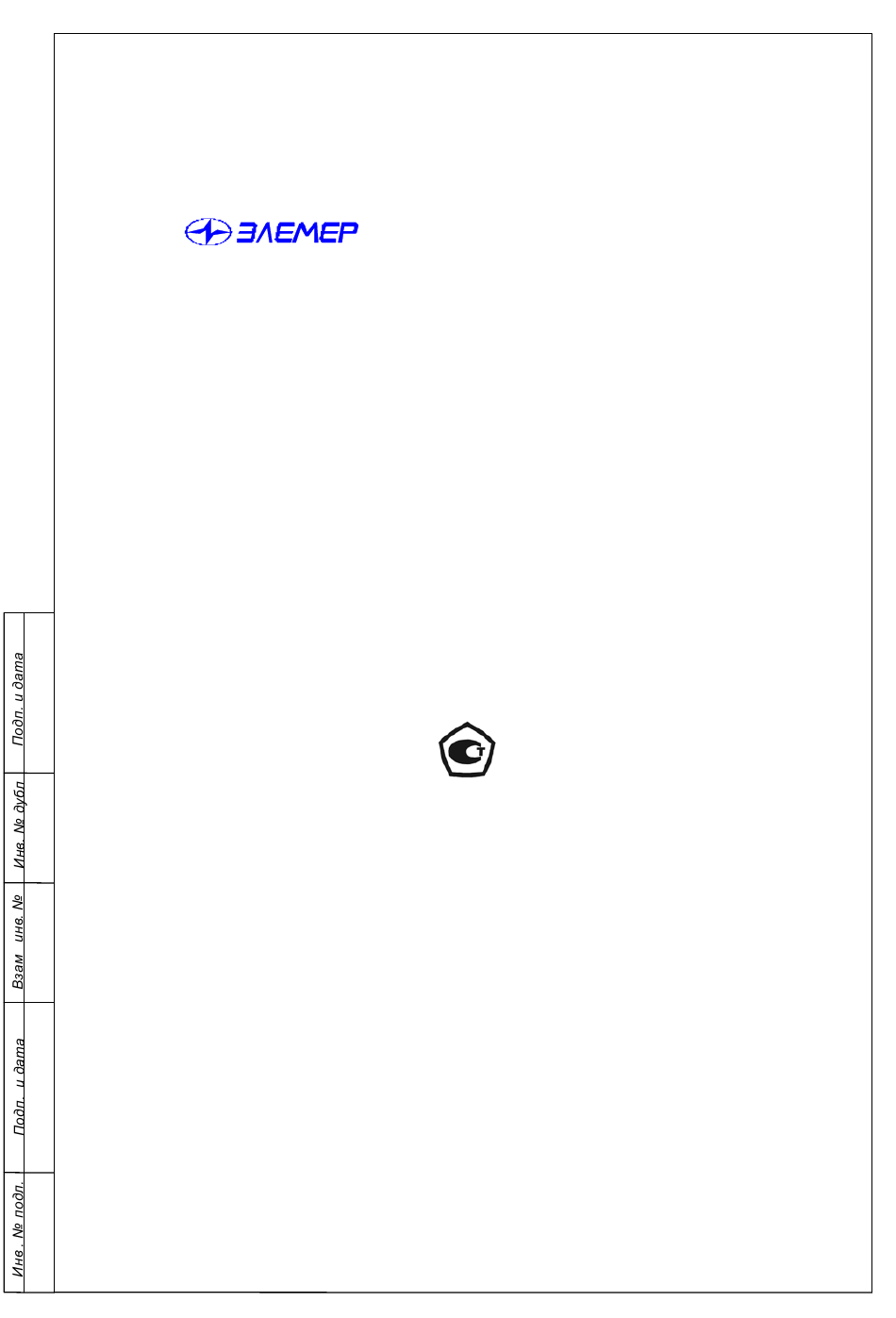

- Page 1 SAFE MEANS AND SYSTEMS OF TECHNOLOGICAL MONOTORING THE RESEARCH AND PRODUCTION ENTERPRISE MULTICHANNEL THERMOMETER ТМ 5132 OPERATION MANUAL НКГЖ.405546.001-02РЭ...
-
Page 2: Table Of Contents
THE CONTENTS 1. Introduction.......………….. 2. Specifications and operation......2.1. Purpose of the article.....……… 2.2. Technical characteristics....………. 2.3. Design and operation.....……… 2.4. Error message....………………. 2.5. Marking and sealing....………….. 2.6. Packaging........ ………….. 3. Employment of article according to purpose.. 3.1. Preparation of the article for operation..3.2. -
Page 3: Introduction
1. INTRODUCTION 1.1. The operation manual contains the items of information on design, operating principle, performances of the multichannel thermometer MT 5132 (hereinafter - MT) and instructions indispensable for correct and safe operation of the thermometer. 2. SPECIFICATIONS AND OPERATION 2.1. -
Page 4: Technical Characteristics
For the MT version with the variable MT configuration there are micro switches at the rare panel of MT with the help of which it is possible to change configuration of MT. The MT has no system signaling on input circuit opening. The procedure of settings changing is protected from unauthorised access. - Page 5 2.2.6. The limit of the tolerable additional error caused by variation of the power voltage from the nominal (220V) within the range (187 …242) does not exceed 0,5 limit of the tolerable basis error. The table 2.1 Type of the Range of Input parameters Limits...
- Page 6 2.2.7. The limit of tolerable additional error of MT, caused by the effect of constant magnetic fields and (or) variation fields of the circuit frequency of up to 400 А/м voltage, does not exceed 0,5 limit of the tolerable basic error. 2.2.8.
-
Page 7: Design And Operation
- 1 mOhm at relative humidity (95± 3) % and temperature of ambient air (35± 3) ºC . 2.2.16. MT is stable to the effect of temperature of ambient air variation from minus 10 ºC up to +50 ºC. 2.2.17. Overall dimensions, mm, not more then: the front desk - 96 х... - Page 8 2.3.1.7. The module of the interface is intended for connection to the computer. The circuits of MT connection to the computer - pursuant to the appendix Б. 2.3.1.8. In the figure 2.1 the appearance of TM 5132 is presented. Figure 2.1 2.3.2. On the front panel of MT are situated: - the main display - four-digit LED indicator of a measured value or a setting;...
- Page 9 - buttons "^" and "V", permitting to scan values of measurements or settings, increasing or decreasing a channel number; - the key ">", permitting to select one from four indication modes: 1) cyclic scanning of measurements on all channels; 2) scanning of measurements on any selected channel; 3) scanning of the setting 1 on any selected channel;...
-
Page 10: Error Message
The table 2.3 – Designation of the contacts of connector РП14-30 Number of contacts group for connection Normally-closed Normally– opened Group of contacts of relays (external contacts contacts actuating devices) 1a, 1b, 1c 1b, 1c 1a, 1b 2a, 2b, 2c 2b, 2c 2a, 2b 3a, 3b, 3c... - Page 11 Table 2.5 Method of Error code Malfunction Course elimination “Err 0” Emergency condition of Malfunction of the Only industrial the instrument micro controller conditions “Err 1” Emergency condition of Malfunction of the Only industrial the instrument micro controller conditions “Err 2” Error circuit The network number...
-
Page 12: Marking And Sealing
Notes: In case of any errors with the codes “Err 0” … “Err 5” MT is automatically assigned: number of the instrument – “0”, and the speed of interchange – “9600”; after elimination of courses of malfunction, values of these parameters are reinstated. 2.5. -
Page 13: Employment Of Article According To Purpose
3. EMPLOYMENT OF ARTICLE ACCORDING TO PURPOSE 3.1. Preparation of the article for operation. 3.1.1. Safety measures instructions. 3.1.1.1. As to the method of protection of operators from electric shocks MT corresponds to the class II according to GOST 12.2.007.0-75. MT has a clamp of measuring earthing according to GOST 12.2.007.0-75. -
Page 14: Employment Of The Article
with a web and commutation circuits - via РП 14-30 connector, according to the figure A .1 of the Appendix A. The purpose of the contact connectors Connections are performed in the form of cable ties. Laying and terminating cables should meet the requirements acting "... -
Page 15: Method Of Testing
4. METHOD OF TESTING 4.1. MT is tested by bodies of the State Metrological Service or Metrological Service of Consumers having the right of verification. The requirements of verification, order, main stages of verification are stipulated in ПР 50.2.006-94 "ГСИ. Verification of measuring facilities. Organisation and procedure of verification"... - Page 16 True readings of the measured value At for the ranges of input signals 0... 5, 0…20 and 4... 20 мА are calculated from the formula (4.1), (4.2) and (4.3) accordingly: √ Аt = А х (4.1) макс input i √ √...
- Page 17 4.1.9.4. Set a hysteresis on both settings. 4.1.9.5. Connect to clamps of relay channels of MT the indication circuit of a closed /open conditions of channels (for example, circuits of light emitting diodes power supply). 4.1.9.6. Change sequentially values of an input signal of MT from one setting to another, make sure that all relays operate properly, both on indication on the front panel of MT and on indicators connected to clumps of channels.
-
Page 18: Technical Maintenance
5. TECHNICAL MAINTENANCE 5.1. Technical maintenance of MT is reduced to observance the operating rules, stowage and transportation rules explained in the present operation manual, to routine inspections, periodic checks and repair works. 5.2. The routine inspections are carried out in the order established at the places of MT operation, but not less often then twice a year and include: 1) external examination;... -
Page 19: Storage
6. STORAGE 6.1. The storage conditions for MT in transportation packing in a warehouse of the manufacturer and consumer should correspond to conditions of I GOST 15150-69. Aggressive impurities should not be present in the air. 6.2. Disposition of MT in warehouses should ensure a free access to it. 6.3. -
Page 20: Appendixes: A. The Electrical Connections Circuit
Appendix A The electric diagram of MT 5132 connections Terminal blocks 1 series of 12 contacts c b a 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 Connector DB9 for Connector РП... - Page 21 Prolongation of Appendix A Table A.1 – Designation of clamps contacts Number of contact Name of a signal Channel number of a clamp...
- Page 22 Appendix Б The diagram of connection of MT 5132 to a computer The three-wire diagram of hooking up of MT 5132 to a computer ( up to 10 MT 5132 with the communication line of up to15 m length) ТМТ 5132 ЭВМ...
- Page 23 C1 – connector PC4 1,2 - L 3,4 - G * As the booster of the interface RS 232 it is possible to employ ПИ 232 produced by SRC "ELEMER" Figure Б.2...
- Page 24 Continuation of the Appendix Б Two-wire diagram of connection of MT 5132 to the computer with the aid of the converter of the interface RS 485/RS 232* In MT 5132 for the interface RS 485 the connector DB9 (socket) with the following functional designation of contacts is installed: outlet 6 - R +;...
