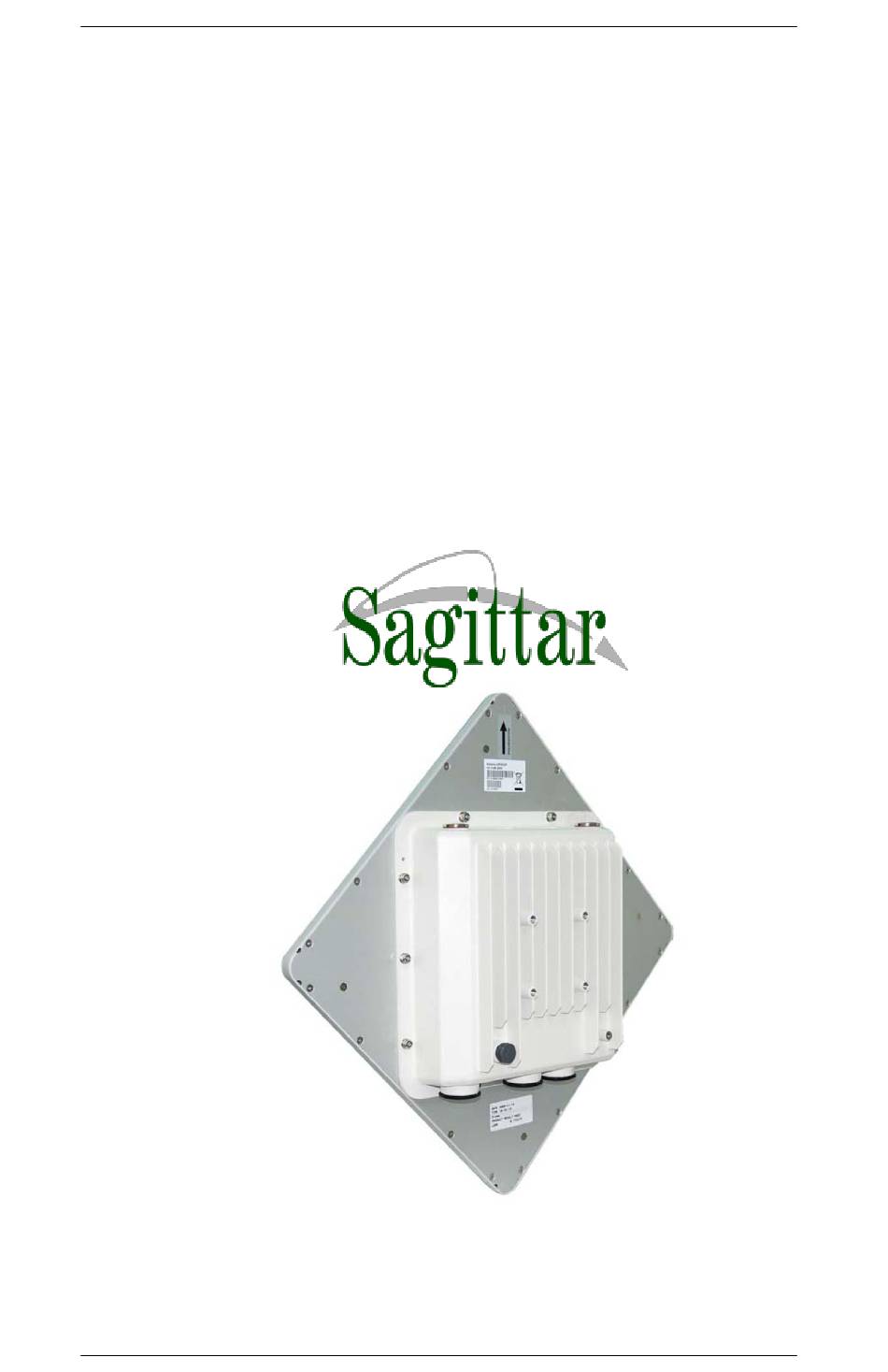

The SGT-LD-5-23 is a high-performance outdoor-deployable radio bridge that provides radio connectivity amongst multiple network locations. The SGT-LD-5-23 has support for Base Station, CPE, PTP and PTMP connectivity modes. Moreover, the SGT-LD-5-23 has a built-in 23dBi flat-panel antenna that can be used for connections in excess of 40km. With high throughput and long-distance transmission, the SGT-LD-5-23 is an ideal backhaul solution for Carriers, Enterprises and Service Providers.
Please seek assistance from a professional installer who is well trained in RF and network installation and who is knowledgeable regarding local regulations. The SGT-LD-5-23 is provided through distribution to system installers who employ services of trained professional technicians – the SGT-LD-5-23 is not sold directly through retail stores. Safety Precautions To ensure your safety and install the hardware properly, please read and follow these safety precautions.
Installation Precautions To keep the SGT-LD-5-23 in good condition while you are installing it (and for subsequent high performance), please read and follow these installation precautions. Users MUST use a suitable and well-installed surge arrestor and grounding kit with SGT-LD-5-23; otherwise, random lightning can cause fatal damage to the SGT-LD- 5-23.
Page 6
Mounting Kit Wall/Pole Mounting Bracket 1. T-Form Bracket ×1 2. Articulation Pole ×1 3. Pole Mount Bar ×1 Fasteners 4. M8×80 Screw ×2 M8×90 Screw ×1 5. M8 Washer ×3 6. M8 Spring Washer ×3 7. M8 Nut ×1 8. M5×16 Screw ×4 9.
Chapter 3 System Installation Assemble the Mounting Bracket Place the main bracket into the seating and use a spanner to fasten the bracket to the SGT-LD-5-23 with M5×16 screws and M5 washers provided in the hardware packets; Assemble the main bracket by...
Pole Mounting Install the main bracket and the pole mount bar over the top of the pole by securing the drill holes of the pole mount bar to the main bracket ones and insert two M8×80 screws, spring washers and washers through the drill holes and main bracket;...
Page 9
Connect Up Before installing the Ethernet cable with a waterproof RJ-45 connector, it is recommended that the Cat-5 RJ-45 cable be used for the bridge to power injector connections. PoE+Data To connect to the hole labelled , open the black cover in advance by using a coin or a slotted screwdriver and then screw in the body of the gland and tighten.
Page 10
Ground the wire The SGT-LD-5-23 is shipped with a grounding wire. The unit must be properly grounded to protect against power surges. The grounding point can be found on the bottom of the unit. It is supplied with an appropriate grounding lug for attachment to the ODU (Outdoor Unit).
Page 11
Warning: Make sure that the PoE is correctly connected to the RJ-45 port on the SGT- DO NOT connect to the port labelled “Warning!! LD-5-23 labelled PoE+Data. POE”, otherwise the SGT-LD-5-23 will be severely damaged!
SGT-LD-5-23. As the default IP address of this unit is 192.168.1.1, you may choose from 192.168.1.2 to 192.168.1.254. 2. Test the link status between your PC and the SGT-LD-5-23. Start a command prompt and execute a continuous ping command “ping 192.168.1.1 –t”. If pinging to the wireless bridge is successful (as shown below), open an Internet browser and enter the bridge’s...
Page 13
Note: Considering convenient configuration, it is recommended to configure local and remote SGT-LD-5-23 respectively on two computers. TTL time may vary depending on the operating system.
Page 14
How to Establish Wireless Bridge Mode The SGT-LD-5-23 supports four operating modes, which are Base Station, CPE, Peer-to- Peer (CSMA) and Peer-to-Peer (TDMA). Normally, Wireless Bridge is the standard mode on this unit. Here, we will illustrate how to establish wireless bridge connectivity with the SGT-LD-5-23.
Page 15
SGT-LD-5-23 as 192.168.1.1 and remote SGT-LD-5-23 as 192.168.1.2 and set the IP Subnet Mask on both as 255.255.255.0. Warning: Each IP address must be unique within a LAN, otherwise IP collisions may occur. Open “...
Page 16
” in “ ” About System and record its wireless MAC address. Login to the Web-based interface of the local SGT-LD-5-23 and open “ Peer-to-Peer ” in “ ”; input the WLAN MAC address of the remote one into the “ Setup...
Page 17
Use ping to check if the link between the two SGT-LD-5-23 is connected. To get a better wireless connectivity, antenna alignment is strongly recommended after both SGT-LD-5-23’s are installed a long distance apart. Login to the Web-based interface of the local SGT-LD-5-23 and open “...
Page 18
Adjust the local antenna after fixing the remote one. During the adjustment, observe “ ” in the remote SGT-LD-5-23. Fix the local antenna when it reaches your Current RSSI expected RSSI. Congratulations! You have completed configuration of the SGT-LD-5-23’s and they can be...
: Check the availability of power to the bridge by observing the LED status on the power injector - Green: The SGT-LD-5-23 is connecting to the backhaul network. -Off: The SGT-LD-5-23 is disconnected from the wired network; check if the power cord and Ethernet cables to the network and bridge are correctly connected.
