User's Manual / Datasheet
_________________________________________________________________________________________
Falcon Nano Inc.
Preliminary/For Reference Only
MAX10 System on Module
(For use as a Production Module and/or
Development Kit with built in USB and WiFi)
MAX10-SoM User's Manual Rev 1.1 Page 1 of 17
MAX10-SoM
Advertisement
Table of Contents
Summary of Contents for Zephyr FALCON nano MAX10-SoM

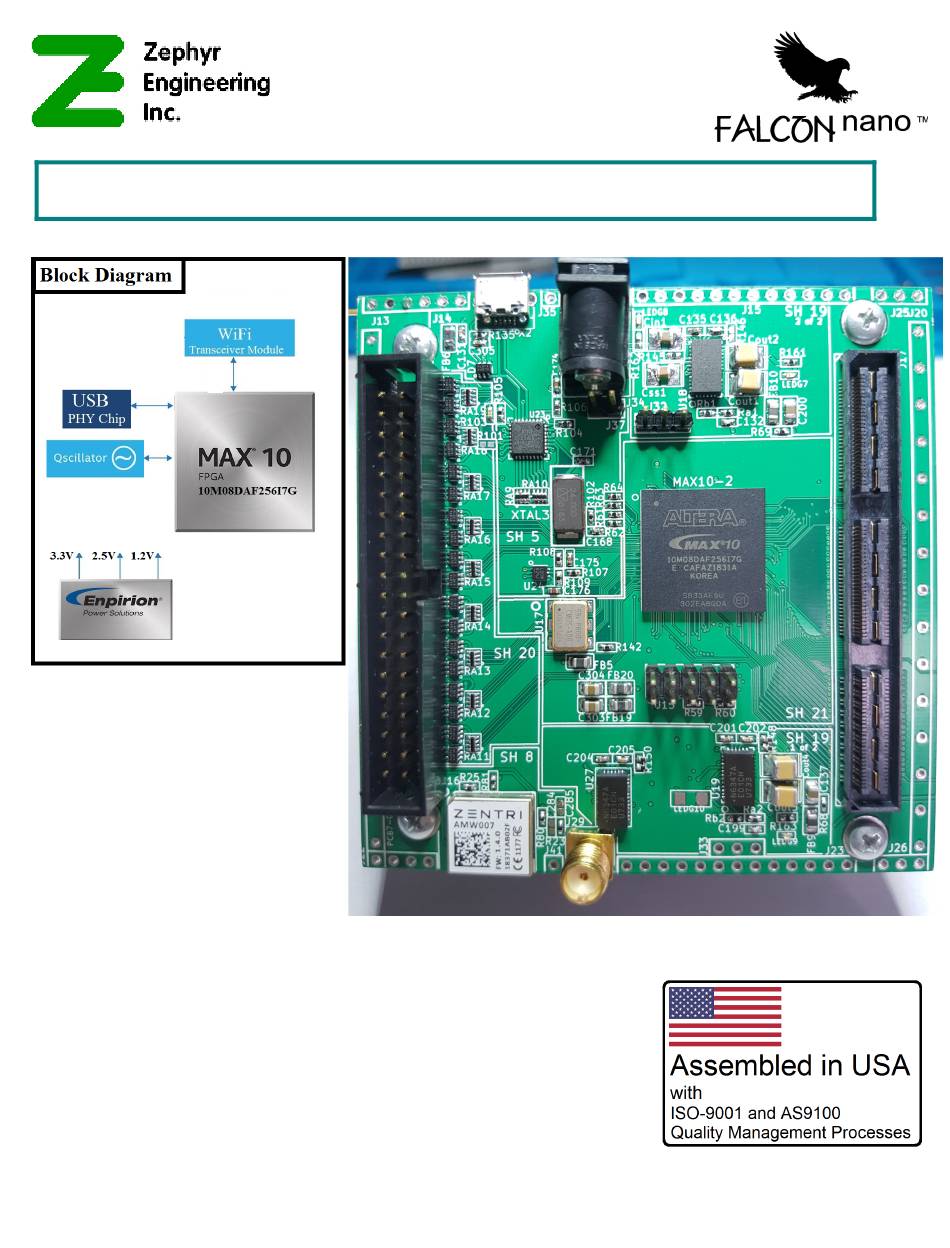

- Page 1 MAX10 System on Module (For use as a Production Module and/or Development Kit with built in USB and WiFi) User's Manual / Datasheet MAX10-SoM _________________________________________________________________________________________ Falcon Nano Inc. Preliminary/For Reference Only MAX10-SoM User's Manual Rev 1.1 Page 1 of 17...
-
Page 2: Table Of Contents
Contents 1.0 Introduction ......................... 3 2.0 Features ..........................3 3.0 Applications ........................3 3.1 Functional Block Diagram of Sample Applications ..........4 4.0 MAX10-SoM Part Numbers ....................5 5.0 Customization (Hardware and/or Software) ............... 5 6.0 Compatibility with Intel PSG Daughter Cards ..............6 7.0 Specifications ........................ -
Page 3: Introduction
1.0 Introduction The MAX10 System on Module, part number MAX10-SoM, is a board level solution for applications which require an FPGA. The MAX10-SoM provides all the functionality of the Intel 10M08DAF256I7G. It is suitable for both development work on a bench top or to be embedded into products for production. -
Page 4: Functional Block Diagram Of Sample Applications
Illustration 1: Functional Block Diagram of Sample Applications _________________________________________________________________________________________ Falcon Nano Inc. Preliminary/For Reference Only MAX10-SoM User's Manual Rev 1.1 Page 4 of 17... -
Page 5: Max10-Som Part Numbers
4F : 40 pin and FMC NC : no GPIO connectors 5.0 Customization (Hardware and/or Software) Zephyr Engineering Inc and Falcon Nano Inc can customize the MAX10-SoM hardware or develop software to meet your specific requirements. Contact your local distributor, Zephyr or Falcon Nano. _________________________________________________________________________________________ Falcon Nano Inc. -
Page 6: Compatibility With Intel Psg Daughter Cards
6.0 Compatibility with Intel PSG Daughter Cards The MAX10-SoM is hardware compatible with the following Intel PSG (Altera) daughter cards: Product Name Distributor/ Link for more details Manufacturer https://www.arrow.com/en/products/p0288/terasic- Servo Motor Kit Arrow/ technologies Terasic SDI-HSMC Card Arrow/ https://www.arrow.com/en/products/p0498/terasic- technologies Terasic AD/DA Data Conversion Card Arrow/... -
Page 7: Specifications
7.0 Specifications FPGA: Intel PSG 10M08DAF256I7G (unless specified otherwise, see 4.0 MAX10-SoM Part Numbers above for alternatives.) Power Systems: Enpirion EN6347AQ. 5.0, 3.3, 2.5 and 1.2 VDC Input Power: 2.5 to 6.6 VDC, 4 Amp (max continuous operating current), barrel connector jack 2.00 mm ID, 5.50 mm OD. -
Page 8: Pin Outs
8.0 Pin Outs The pin outs listed are for the MAX10-SoM with 8k logic elements. Consult factory for the 2k and 50k logic element versions. 8.1 40 Pin Connector - JP2 40 Pin Connector - JP2 MAX10 MAX10 40 pin 40 pin connector other... -
Page 9: Hsmc Connector - J17, Pins 1-40
8.2 HSMC Connector - J17, Pins 1-40 HSMC Connector - J17, Pins 1-40 MAX10 MAX10 HSMC HSMC connector other Description Bank connector other Description Bank IO,DIFFOUT_B27p IO,DIFFOUT_B27p IO,DPCLK3,DIFFOUT_R26p IO,DPCLK2,DIFFOUT_R26n _________________________________________________________________________________________ Falcon Nano Inc. Preliminary/For Reference Only MAX10-SoM User's Manual Rev 1.1 Page 9 of 17... -
Page 10: Hsmc Connector - J17, Pins 41-100
8.3 HSMC Connector - J17, Pins 41-100 HSMC Connector - J17, Pins 41-100 MAX10 MAX10 HSMC HSMC connector other connector other Description Bank Description Bank IO,DIFFOUT_B1p IO,DIFFOUT_R20p IO,DIFFOUT_B1n IO,DIFFOUT_R20n VCC3P3 VCC6 IO,DIFFOUT_B3p IO,DIFFOUT_R22p IO,DIFFOUT_B3n IO,DIFFOUT_R22n VCC3P3 VCC6 IO,DIFFOUT_B5p IO,DIFFOUT_R23p IO,DIFFOUT_B5n IO,DIFFOUT_R23n VCC3P3 VCC6... -
Page 11: Hsmc Connector - J17, Pins 101-160
8.4 HSMC Connector - J17, Pins 101-160 HSMC Connector - J17, Pins 101-160 MAX10 MAX10 HSMC HSMC connector other Description Bank connector other Description. Bank IO,DIFFOUT_B11p IO,DIFFOUT_R3p IO,DIFFOUT_B11n IO,DIFFOUT_R3n VCC3p3 VCC6 IO,DIFFOUT_B13p IO,DIFFOUT_R11n IO,DIFFOUT_B13n IO,DIFFOUT_R11p VCC3p3 VCC6 IO,DIFFOUT_B2p IO,DIFFOUT_R10n IO,DIFFOUT_B2n IO,DIFFOUT_R10p VCC3p3 VCC6... -
Page 12: Hsmc Connector - J17, Pins 161-172
8.5 HSMC Connector - J17, Pins 161-172 HSMC Connector - J17, Pins 161-172 MAX10 HSMC connector other Description. Bank _________________________________________________________________________________________ Falcon Nano Inc. Preliminary/For Reference Only MAX10-SoM User's Manual Rev 1.1 Page 12 of 17... -
Page 13: Leds - Led1 & Led2
8.6 LEDs - LED1 & LED2 LEDs - LED1 & LED2 MAX10 MAX10 LED1 other Description Bank LED2 other Description Bank VCCIO3p3 VCCIO3p3 IO,DIFFOUT_T16p IO,DIFFOUT_T17n IO,DIFFOUT_T17p 8.7 DIP switches - S1 DIP switches - S1 MAX10 MAX10 DIP switches other Description. -
Page 14: Usb Phy Circuit: Microchip Technology Usb3300 And Usb-Micro-B Connector
8.9 USB PHY Circuit: Microchip Technology USB3300 and USB-Micro-B Connector USB PHY Circuit: Microchip Technology USB3300 and USB-Micro-B Connector MAX10 Connector, USB- data other USB3300 MICRO-B Description Bank IO,DIFFOUT_T26n IO,DIFFOUT_T23n IO,DIFFOUT_T20p IO,DIFFOUT_T20n IO,DIFFOUT_T22n IO,DIFFOUT_T22p IO,DIFFOUT_T23p IO,DIFFOUT_T26p Reset IO,DIFFOUT_T19n NXTB IO,DEV_OE,DIFFOUT_T18p STPB IO,DIFFOUT_T21p DIRB... -
Page 15: Wifi Modules: Silicon Labs Wgm160P
8.10 WiFi Modules: Silicon Labs WGM160P WiFi Modules: Silicon Labs WGM160P MAX10 WiFi Module WiFi other Description Bank WGM160P UART RX IO,DIFFOUT_T1n 47/PE6 UART TX IO,DIFFOUT_T2n 46/PE7 SWDIO IO,DIFFOUT_T8n 45/PF1 SWCLK IO,DIFFOUT_T8p 44/PF0 Reset IO,DIFFOUT_T12n 34/RESETn UART CTS IO,DIFFOUT_T3p 26/PB6 UART RTS IO,DIFFOUT_T1p 25/PB5... -
Page 16: Initial Testing And Troubleshooting
It is ready for your custom program to be downloaded and the MAX10-SoM installed into your final product. (Contact your local distributor, Zephyr Engineering or Falcon Nano if you wish to have your custom program installed in your MAX10-SoM before it is shipped to you.) If your project is still in the development stage, we recommend the following. -
Page 17: Limited Warranty
10.0 Limited Warranty Effective July 29, 2019 This warranty supersedes all previous Falcon Nano Inc. warranties and is exclusive, with no other guarantees or warranties expressed or implied. There are no warranties which extend beyond the description on the face hereof. Falcon Nano Inc.
