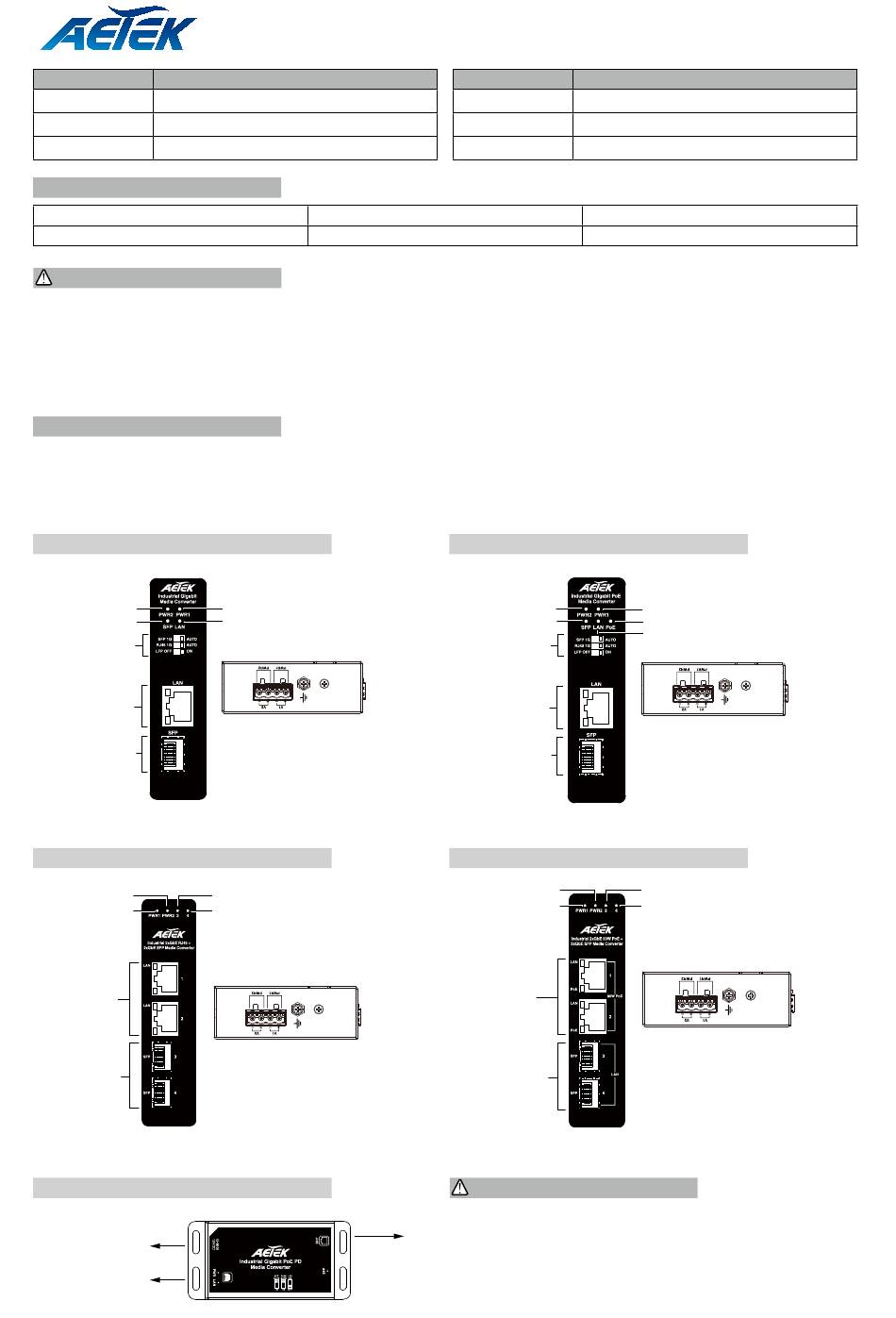

AETEK M30-022-91-V2 Quick Installation Manual

Model Description
M30-011-01 1xGbE RJ45 + 1xGbE SFP
M30-011-30 1xGbE 30W PoE + 1xGbE SFP
M30-022-01 2xGbE RJ45 + 2xGbE SFP
PACKAGE CONTENTS
* 1x PoE Media Converter
* 1x DIN rail bracket (M31 No include)
IMPORTANT:
1. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use fiber optic cables nd transceiver compliant with the following: Multi-mode: 50/125um, 62.5/25um, 850nm;
Single-mode : 9/125um ,1310nm.
4. DC input: 48V~56VDC. for 30W 802.3 at/af. DC Input:52~56VDC for 90W PoH / 90W bt.
Follow the printed polarity for V+, V-, and Ground.
CONNECTION
1. Pull out the 4-pin terminal block.
2. Connect wires to V+ and Ground.
3. Connect SFP ransceiver to the fiber port.
4. install the 4-pin terminal block. You can connect redundant power line pairs for fault tolerance.
M30-011-01
Power input 2
SFP status LED
DIP Switch
GbE PoE
LAN ports
GbE SFP ports
M30-022-01
Power input 2
Power input 1
GbE PoE
LAN ports
GbE SFP ports
M31-011-01
Connect 12V/2W
Power Adapter(Option)
Connect to PoE Switch
PoE Media Converter
Quick Installation Guide
* 1x Quick Installation Guide
Power input 1
LAN status LED
VDC or VAC
VDC: 12V ~ 56V
VAC: 18V ~ 36V
SFP status LED 3
SFP status LED 4
VDC: 12V ~ 56V
Model Description
M30-022-90 2xGbE 90W PoH PoE + 2xGbE SFP
M30-022-91-V2 2xGbE 90W bt PoE + 2xGbE SFP
M31-011-01 1xGbE 30W PoE PD + 1xGbE SFP
M30-011-30
Power input 2
SFP status LED
DIP Switch
GbE PoE
LAN ports
GbE SFP ports
M30-022-90 / M30-022-91-V2
Power input 2
Power input 1
GbE 90W PoH/
90W bt PoE
LAN ports
GbE SFP ports
IMPORTANT:
1.Solid or stranded (AWG): 12-24/14-22.
Wire strip length: 7-8mm
SFP Slot
Torque: 5lb-In/0.5Nm/0.56Nm.
2.WARNING
- Always ground the power source to maintain a clean power input.
- Always shut off power source before connecting power wires.
P/N: A625011603G
* 1x 4-pin terminal block
Power input 1
PoE status LED
LAN status LED
VDC: 48V ~ 56V
SFP status LED 3
SFP status LED 4
DC: 48V ~ 56V for 30W at/af
DC: 52 ~ 56VDC for 90W PoH / 90W bt
