MKD6XXXCM
User Manual

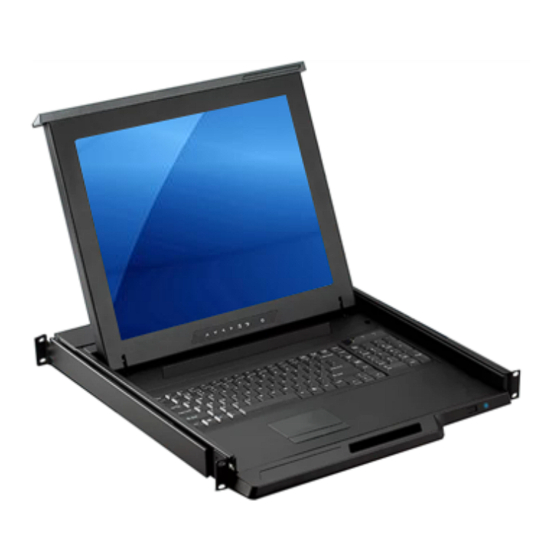

Integrated Matrix Cat6 KVM for LCD Console Drawers
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2022 Acnodes Corp.
Tel: 909.597.7588
Fax: 909.597.1939
Rackmount KVM Console Drawers
Integrated Matrix Cat6 KVM Switch
3 Type User Consoles

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MKD6 CM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acnodes MKD6 CM Series

Summary of Contents for Acnodes MKD6 CM Series

  • Page 1 Integrated Matrix Cat6 KVM for LCD Console Drawers All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
  • Page 2 Legal Information First English printing, August 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > Matrix Cat6 IP KVM Package Contents KVM Port & Cat6 Dongle Connection IP & Remote Console Connection KVM Cascade Specifications < Part. 2 > Matrix Cat6 KVM Package contents KVM Port & Cat6 Dongle Connection Remote Console Connection P.10 KVM Cascade...

  • Page 4: Package Contents

    < Part 1 > Matrix Cat6 Matrix Cat6 IP KVM < 1.1 > Package Contents Matrix Cat6 IP KVM KVM Rear Kit back • Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver ) x 1 •...

  • Page 5: Kvm Port & Cat6 Dongle Connection

    < 1.2 > KVM Port & Cat6 Dongle Connection Matrix Cat6 IP KVM DG-CU DG-PU DG-HU DG-DU DG-VU USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-CU USB-C CAT 5 / 6 cable DG-PU max. 40 meters Cat6 KVM port Drawer KVM Rear Kit DG-HU...

  • Page 6: Ip & Remote Console Connection

    < 1.3 > IP & Remote Console Connection Matrix Cat6 IP KVM Receiver For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Drawer KVM Rear Kit Remote Console IP Console Frequency Frequency Max.
  • Page 7 How to use a receiver to connect a remote console Matrix Cat6 IP KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.19 Drawer KVM Rear Kit Remote Console...

  • Page 8: Kvm Cascade

    Matrix Cat6 IP KVM < 1.4 > KVM Cascade ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CM8-CMC cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MKCS1602 / MKCS3202. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 9: Specifications

    Matrix Cat6 IP KVM < 1.5 > Specifi cations Matrix Cat6 IP KVM KVM Port ▀ Number of ports : 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console : Nil for LCD console drawer version...

  • Page 10: Part 2 > Matrix Cat6 Kvm

    < Part 2 > Matrix Cat6 KVM Matrix Cat6 KVM < 2.1 > Package Contents Matrix Cat6 KVM - 1 Remote Console KVM Rear Kit back • Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver ) x 1 •...
  • Page 11 Matrix Cat6 KVM 16-Port Matrix Cat6 KVM - 1 Remote Console Remote Console 1 Power Cascade 32-Port Matrix Cat6 KVM - 1 Remote Console 16-Port Matrix Cat6 KVM - 2 Remote Consoles Remote Console 1 Power Remote-2 Cascade 32-Port Matrix Cat6 KVM - 2 Remote Consoles 16-Port Matrix Cat6 KVM - 3 Remote Consoles Remote Console 1 Remote-3...

  • Page 12: Kvm Port & Cat6 Dongle Connection

    < 2.2 > KVM Port & Cat6 Dongle Connection Matrix Cat6 KVM DG-CU DG-PU DG-HU DG-DU DG-VU USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-CU USB-C CAT 5 / 6 cable DG-PU max. 40 meters Cat6 KVM port Drawer KVM Rear Kit DG-HU HDMI...

  • Page 13: Remote Console Connection

    < 2.3 > Remote Console Connection Matrix Cat6 KVM For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Drawer KVM Rear Kit Remote Console Frequency Max. Cat6 Cable Resolution Support ( Hz ) Length ( M ) 1920 x 1080 1920 x 1200...
  • Page 14 Matrix Cat6 KVM How to use a receiver to connect a remote console Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.17 Drawer KVM Rear Kit Remote Console Local computer...

  • Page 15: Kvm Cascade

    Matrix Cat6 KVM < 2.4 > KVM Cascade ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CM8-CMC cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MKCS1602 / MKCS3202. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 16: Specifications

    Matrix Cat6 KVM < 2.5 > Specifi cations Matrix Cat6 KVM ▀ KVM Port Number of ports : 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console : Nil for LCD console drawer version ▀...
  • Page 17 < Part 3 > Usage Matrix Cat6 KVM Usage < 3.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications Front Panel - Port LED Indications 16 ports...
  • Page 18 Matrix Cat6 KVM Usage < 3.2 > Password The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”...

  • Page 19: Part. 3 > Matrix Cat6 Kvm Usage

    Matrix Cat6 KVM Usage < 3.3 > KVM OSD OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter...

  • Page 20: Kvm Hotkey & Remote Console Hotkey

    Matrix Cat6 KVM Usage < 3.4 > KVM Hotkey & Remote Console Hotkey Local / IP Remote Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port...
