Summary of Contents for Spartan FH08-24

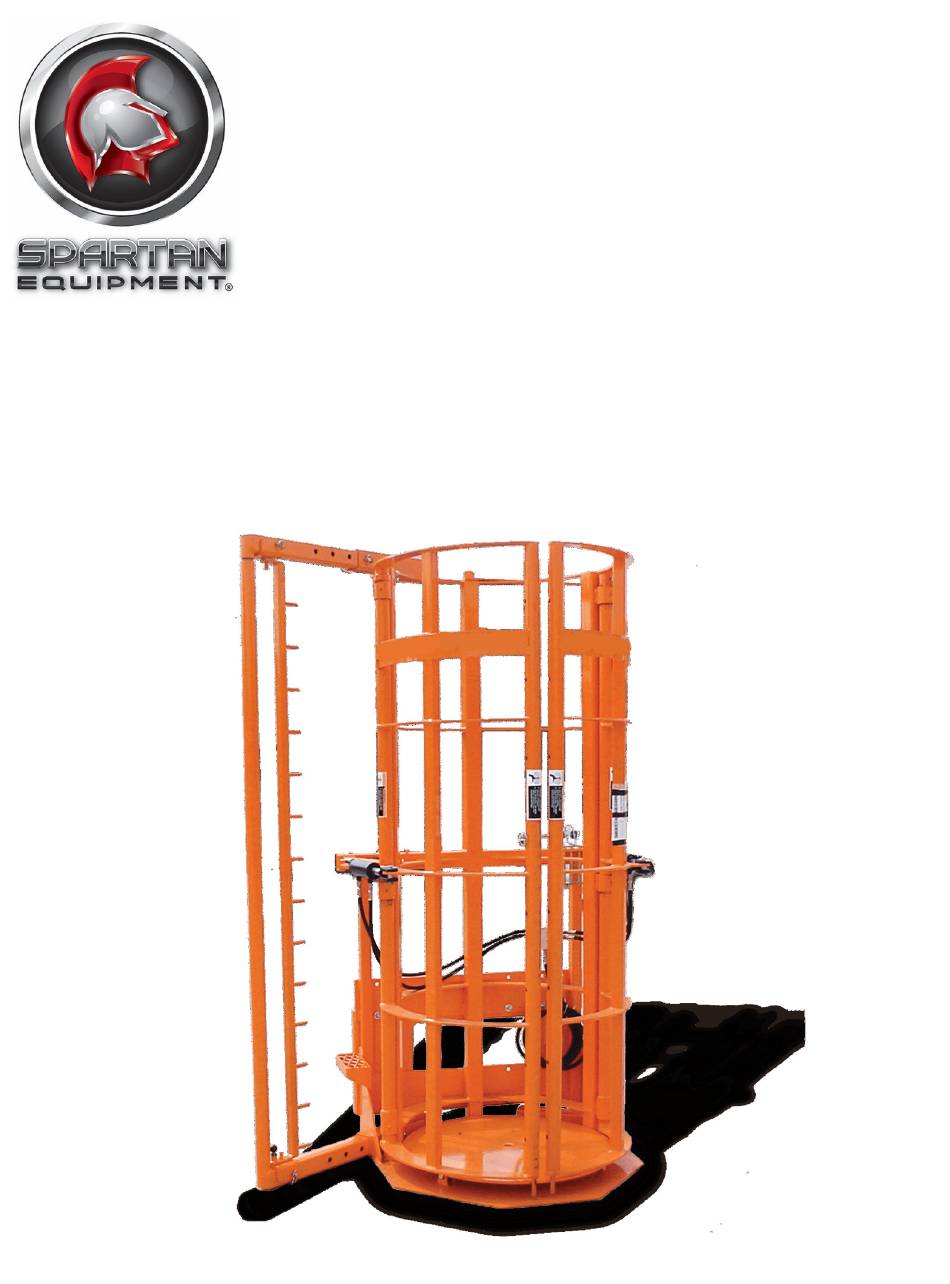

- Page 1 FH08-24 FH08-36 Fence Installer...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION............................3 ABOUT THIS MANUAL..........................3 GENERAL INFORMATION........................... 3 SAFETY INFORMATION..........................3 SAFETY PRECAUTIONS..........................4 MACHINE DESCRIPTION..........................5 OPERATING SAFETY ..........................6 MAINTENANCE............................7 OPERATING INSTRUCTIONS........................8-9 FH 0 8 -2 4 -CLS…............................10 FH08-36-CLS. -
Page 3: Introduction
Congratulations on purchasing one of the finest pieces of construction equipment on the market today! If this is your first Spartan Equipment product, you will not be disappointed. If you have previously owned a Spartan Equipment product, you will find the same high quality and dependability that you have come to expect from Spartan Equipment. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS WARNING Failure to obey the following safety instructions could result in DEATH or SERIOUS INJURY. Read and understand entire manual before operating the Fence Hog. For your safety and the safety of others, replace any missing or damaged warning decals by contact- ing the manufacturer at 1-800-417-9272. -
Page 5: Machine Description
Powered by the hydraulic used in the Skid-Steer Loader, the uniquely designed cage mechanism opens and tilts to retrieve the fence roll from the ground. For the fence contractor, this means no more unrolling fence by hand and using extra men to stand it up. FH08-24 / FH08-36... -
Page 6: Operating Safety
Fence Hog. 4. Consult lift equipment manufacturer’s specifications to ensure load capacity is not exceeded. Model Empty Weight With 4ft. Extension FH08-24 1150lbs. (521.6 kg) 1500lbs. (680.4 kg) FH08-36 1350 lbs. (612.3 kg) 1775lbs. -
Page 7: Maintenance
Fence Installer. Using the parts reference table in this manual, record part number, serial number, and component. Contact your local Fence Installer dealer or Spartan Equipment at 1-888-888-1085 with the serial number, part number, and component. Warning Decals - for your safety and the safety of others, replace any damaged or missing... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Loading Wire 1. Attach the Fence Installer to your skid steer. Consult skid steer owner’s manual for attachment procedure. 2. Connect hydraulic hoses to skid steer auxiliary hydraulic couplers. 3. Using the auxiliary hydraulics, cycle all hydraulic motions to verify the Fence Installer is operating correctly. - Page 9 OPERATING INSTRUCTIONS Installing Fence 1. After loading a roll of wire, move the skid steer parallel to the row of fence posts and attach the beginning of the roll to the first fence post. 2. Slowly drive the skid steer along the fence line and the roll will start to unwind. Continue to desired point.
-
Page 10: Fh08-24-Cls
FH08-24-CLS ITEM QTY PART NUMBER DESCRIPTION ITEM QTY PART NUMBER DESCRIPTION FH-518 Brake Rod FH24-A-1 Frame Welded Assembly FH-547 Brake Rod Spacer FH-A-9 Universal Attachment Plate 09-409 Knob Spring 09-208 1/2" -13 Nylon Nut FH-A-4 Drive Forward Outrigger 09-107 1/2" Flat Washer... -
Page 11: Fh08-36-Cls
FH08-36-CLS PART PART ITEM DESCRIPTION ITEM DESCRIPTION NUMBER NUMBER FH-518 Brake Rod FH36-A-1 Welded Gate and Frame Assembly FH-547 Brake Rod Spacer FH-A-9 Universal Skidsteer Attachment Plate 09-409 Knob Spring 09-208 1/2" -13 Nylon Nut FH-A-4 Drive Forward Outrigger 09-107 1/2"... -
Page 12: Fh24-2X (24" - 2 Ft Extension)
FH24-2X (24” - 2 FT. EXTENSION) FH24-2X PARTS LIST ITEM PART NUMBER DESCRIPTION FH24-2X-A-1 2ft. Extension Welded Frame and Gate Assembly 09-208 1/2" -13 Nylon Nut 09-328 1/2" -13 x 2" GR8 Bolt FH-A-5 2ft. Extension Drive Forward Arm Assembly FHS-A-4 2ft. -
Page 13: Fh24-4X (24" - 4 Ft Extension)
FH24-4X (24” - 4 FT. EXTENSION) PARTS LIST PART ITEM QTY DESCRIPTION NUMBER FH24-4X-A-1 4ft. Extension Welded Frame and Gate Assembly 02-708 Hydraulic Cylinder FH24-4X 09-107 1/2" Flat Washer 09-208 1/2" -13 Nylon Nut 09-328 1/2" -13 x 2" GR8 Bolt FHS-A-5 4ft. -
Page 14: Fh36-2X (36" - 2 Ft Extension)
FH36-2X (36” - 2 FT. EXTENSION) FH36-2X PARTS LIST PART ITEM QTY DESCRIPTION NUMBER FH36-2X-A-1 2ft. Extension Welded Frame and Assembly 09-208 1/2" -13 Nylon Nut 09-328 1/2" -13 x 2" GR8 Bolt FH-A-5 2ft. Extension Drive Forward Arm Assembly FHS-A-4 2ft. -
Page 15: Fh36-4X (36" - 4 Ft Extension)
FH36-2X (36” - 4 FT. EXTENSION) FT. EXTENSION) PARTS LIST ITEM QTY PART NUMBER DESCRIPTION FH36-4X-A-1 Welded Frame and Gate Assembly 02-708 Hydraulic Cylinder 09-107 1/2" Flat Washer FH36-4X 09-208 1/2" -13 Nylon Nut 09-328 1/2" -13 x 2" GR8 Bolt FHS-A-5 4ft Extension Chain Link Stretcher Bar FH-A-8... -
Page 16: Fhs99(Chain Link Streching)
FHS99 (CHAIN LINK STRETCHER) FHS99 PARTS LIST ITEM PART NUMBER DESCRIPTION FHS-A-1 Chain link Stretcher Welded Assembly 09-109 5/8" Flat Washer FHS-A-3 Stretcher Lower Mount 09-425 Bent Pin 09-361 3/8" x 3/8" x 5/16" Thread Shoulder Screw 09-800 Return Spring FHS-10 Stretcher Lower Cable Guard 09-352... -
Page 17: Fhwp
FHWP FHWP PARTS LIST ITEM PART NUMBER DESCRIPTION FH-WP-12 Mount Plate 09-381 1/2" -13 x 5" Grade 8 (Zinc) 09-396 1/2" -13 x 2 1/2" Grade 5 Carriage Bolt 09-208 1/2" -13 Nylon Nut 09-806 Spring Snap Chain Clip 20-111 3/16"... -
Page 18: Fhws99-24 (Woven Wire Stretcher)
FHWS99-24 (WOVEN WIRE STRETCHER) PARTS LIST DETAIL A PART ITEM DESCRIPTION NUMBER FHS-A-7 Woven Wire Stretcher Welded Assembly FHS-A-2 Stretcher Upper Mount FHS-A-3 Stretcher Lower Mount FHS-17 Woven Wire Stretcher Handle 09-109 5/8" Flat Washer 09-425 Bent Pin FHS-10 Stretcher Lower Cable Guard FH-A-2 Woven Wire Centering Bar FH24-A-3... -
Page 19: Fhws99-36 (Woven Wire Stretcher)
FHWS99-36 (WOVEN WIRE STRETCHER) DETAIL A PARTS LIST PART ITEM QTY DESCRIPTION NUMBER FHS-A-7 Woven Wire Stretcher Welded Assembly FHS-A-2 Stretcher Upper Mount FHS-A-3 Stretcher Lower Mount FHS-17 Handle For Woven Wire Stretcher 09-109 5/8" Flat Washer 09-425 Bent Pin FHS-10 Stretcher Lower Cable Guard FH-A-2... -
Page 20: Ta Schematic
TA SCHEMATIC... -
Page 21: Tilt
TILT TILT PARTS LIST PART ITEM DESCRIPTION NUMBER TA-A-2 Back Half Mount Plate Assembly TA-A-3 Front Half Mount Plate Assembly TA-A-1 Upper Cylinder Mount Assembly 02-704 Hydraulic Cylinder TA-7 Upper Cylinder Mount Back Plate TA-27 Bolt on Stiffener Angle 09-325 1/2"-13 x 1 3/4"... -
Page 22: Notes / Service Records
NOTES NOTES SERVICE RECORDS SERVICE PERFORMED DATE INITIALS... -
Page 23: Warranty
WARRANTY Limited Warranty Spartan Equipment products are warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase, when operated and maintained in accordance with the operating and maintenance instructions supplied with the unit. Warranty is limited to the repair of the product and/or replacement of parts. This warranty is extended only to the original purchaser and is not transferable. Repairs must be done by an authorized dealer. Products will be returned to the dealer at the customer’s expense. Include the original purchase receipt with any claim. This warranty does not cover the following: 1) Normal maintenance or adjustments 2) Normal replacement of wearable and service parts 3) Consequential damage, indirect damage, or loss of profits 4) Damages resulting from: • Misuse, negligence, accident, theft or fire • Use of improper or insufficient fuel, fluids or lubricants • Use of parts or aftermarket accessories other than genuine Spartan Equipment parts • Modifications, alteration, tampering or improper repair performed by parties other than an authorized dealer • Any device or accessories installed by parties other than an authorized dealer 5) Engines. Engines are covered by the manufacturer of the engine for the warranty period they specify. For the details of your engine warranty, see your engine owner’s manual. Information about engine warranty and service is also available in the FAQ ... -
Page 24: Warranty Registration
NOTES NOTES (888) 888-1085 support@spartanequipment.com www.spartanequipment.com...
