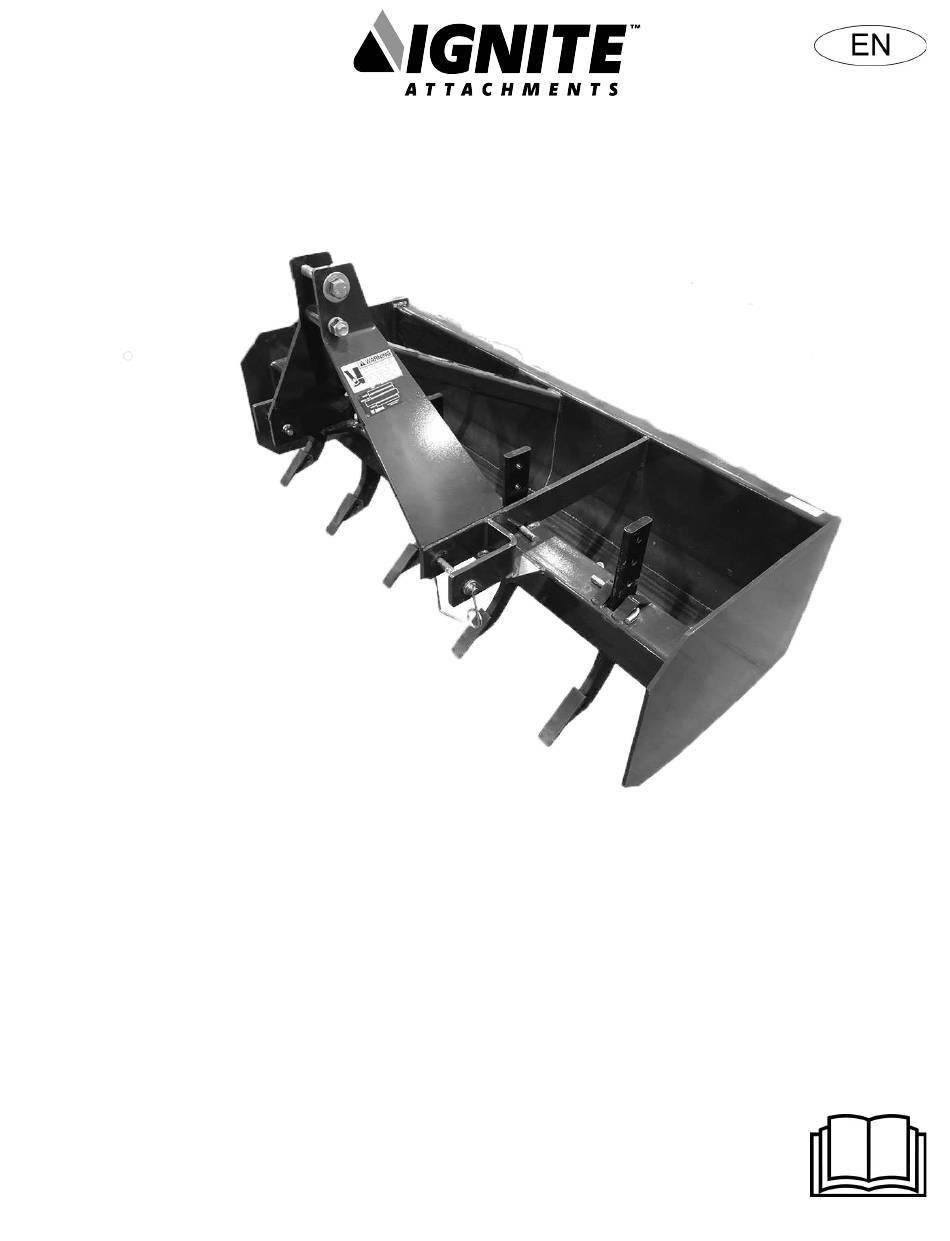

Operation & Maintenance Manual
7495908enUS (A)
October 2022
Three-Point Box Blade
Blade Box 48 S/N: B63Y00101 & Above
Blade Box 60 S/N: B63Z00101 & Above
Blade Box 72 S/N: B64100101 & Above
Printed in USA
Original Instructions
© 2022 Ignite Attachments.
All Rights Reserved.

Advertisement

Table of Contents
loading

Summary of Contents for Ignite Blade Box 48

  • Page 1 Operation & Maintenance Manual Three-Point Box Blade Blade Box 48 S/N: B63Y00101 & Above Blade Box 60 S/N: B63Z00101 & Above Blade Box 72 S/N: B64100101 & Above Printed in USA © 2022 Ignite Attachments. 7495908enUS (A) Original Instructions All Rights Reserved.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS FOREWORD ................................3 MANUFACTURER ............................. 3 North America ............................... 3 SERIAL NUMBER LOCATION ........................... 3 Implement Serial Number ..........................3 IMPLEMENT IDENTIFICATION .......................... 4 Rear O Implement............................4 Front Of Implement ............................4 STANDARD ITEMS ............................5 SAFETY AND TRAINING RESOURCES ........................
  • Page 4 TABLE OF CONTENTS MAINTENANCE SAFETY WARNINGS ......................20 TROUBLESHOOTING ............................. 21 Troubleshooting The Implement ........................21 SERVICE SCHEDULE ............................. 22 Maintenance Intervals ........................... 22 CUTTING EDGE .............................. 22 Removing And Installing The Cutting Edge ......................22 SCARIFIER TEETH ............................23 Removing And Installing Scarifier Teeth ......................
  • Page 5: Foreword

    FOREWORD MANUFACTURER SERIAL NUMBER LOCATION North America Implement Serial Number Ignite Attachments Figure 1 2741 20th Avenue South Moorhead, MN 56560 P142002f Always use the serial number of the three-point box blade when requesting service information or when ordering parts. Earlier or later models (identification made by serial...
  • Page 6: Implement Identification

    FOREWORD IMPLEMENT IDENTIFICATION REF. Description Rear O Implement Backfill Blade Figure 2 P142002c REF. Description Three-Point Hitch (Category 1) Mainframe Scarifier Scraper Blade Front Of Implement Figure 3 C217604a...
  • Page 7: Standard Items

    FOREWORD STANDARD ITEMS The three-point box blade is equipped with the following standard items: • Category I hitch • Two reversible / interchangeable blades • Adjustable / replaceable scarifier shanks.
  • Page 8: Safety And Training Resources

    SAFETY AND TRAINING RESOURCES SAFETY INSTRUCTIONS • Operate the implement only from the operator’s position. Safe Operation Is The Operator’s • Operate the implement according to the Operation & Responsibility (Implement) Maintenance Manual. • When learning to operate the implement, do it at a Safety Alert Symbol slow rate in an area clear of bystanders.
  • Page 9: Fire Prevention

    SAFETY AND TRAINING RESOURCES FIRE PREVENTION Silica dust can cause lung disease and is known to the state of California to cause cancer. Cutting or drilling concrete containing sand or rock containing quartz may result in exposure to silica dust. NA3505 Do not exceed Permissible Exposure Limits (PEL) to silica dust as determined by OSHA or other job site Rules...
  • Page 10: Fueling

    (if equipped). Welding And Grinding Always clean the machine and implement, disconnect the battery, and disconnect the wiring from the Ignite Attachments controllers before welding. Cover rubber hoses, battery, and all other flammable parts. Keep a fire extinguisher near the machine when welding.
  • Page 11: Publications And Training Resources

    7495908 P217312 For the latest information on Ignite Attachments products and the Ignite Attachments Company, visit our website at Igniteattachments.com P142002d REF. DECAL Crush Warning Located near 3 point hitch, both sides...
  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS DAILY INSPECTION Figure 6 Implement Mounting Frame Figure 5 c138256 • Inspect the three-point hitch linkage, PTO shaft splines, guards, and shields. Replace if damaged or missing [Figure 6]. P142002e Repair broken or loose parts. Inspect the lower implement mounts (Item 1) and upper mount (Item 2) [Figure 5] and all welds for wear and See your machine Operation &...
  • Page 13: Operating Procedure With Compact Tractors

    The chart shows the approved box blade models for compact tractors based on horsepower. Warranty on this implement is void if used on a non- approved carrier. Contact your Ignite Attachments representative for a current list of compatible carriers. Setting Up The Ballast...
  • Page 14 OPERATING INSTRUCTIONS Figure 8 Figure 9 P142006a P142005a Drive the compact tractor to the implement and align Install the lower implement pin (Item 1) through the the lower links (Item 1) with the implement lower lower mounts and lower link (Item 2) [Figure 9] (both mounts (Item 2) [Figure 8] (both sides).
  • Page 15 OPERATING INSTRUCTIONS Figure 11 The lift link (Item 1) [Figure 12] is used to adjust the side to side level of the implement. See the compact tractor Operation & Maintenance Manual for detailed information on adjusting the lift link. Adjusting The Top Link Figure 13 c138245a 10.
  • Page 16: Control Functions Three-Point Hitch (Implement)

    OPERATING INSTRUCTIONS Adjusting The Sway Bar Driving The Implement And Tractor To Worksite Figure 14 WARNING GENERAL HAZARD Steering and braking can be affected by the loader attachment, implements, front wheel assist and the rear differential lock. Always install the correct ballast. Do not exceed the Loader or Three-Point Hitch lift capacities.
  • Page 17: Operating The Scraper Blade

    OPERATING INSTRUCTIONS Raise the three-point box blade to the travel position Watch for and avoid obstructions and obstacles that [Figure 15]. See the compact tractor Operation & may cause damage to the box blade and compact Maintenance Manual for detailed information on tractor.
  • Page 18: Adjusting The Scarifier Teeth

    OPERATING INSTRUCTIONS Adjusting The Scarifier Teeth Figure 18 Figure 16 138244a Place the top link (Item 1) into the storage position P142022b bracket (Item 2) [Figure 18]. Remove the retaining pin (Item 1), locking pin (Item Figure 19 2), and adjust the scarifier (Item 3) [Figure 16] to the desired position.
  • Page 19: Lifting The Implement

    OPERATING INSTRUCTIONS Figure 20 LIFTING THE IMPLEMENT Use chains that are in good condition and of adequate size to lift the implement. Figure 21 P142006c Slowly drive the compact tractor away from the implement [Figure 20] C141660a Remove the front ballast from the compact tractor (if equipped).
  • Page 20: Transporting The Implement On Atrailer

    OPERATING INSTRUCTIONS TRANSPORTING THE IMPLEMENT ON A TRANSPORTING THE IMPLEMENT AND TRAILER MACHINE ON A TRAILER Fastening The Implement On A Trailer Transporting The Attachment And Machine On A Trailer Figure 22 WARNING INSTABILITY HAZARD Wood ramps can break and cause personal injury. Use adequately designed ramps of sufficient strength to support the weight of the machine loading onto a transport vehicle.◂...
  • Page 22: Preventive Maintenance

    Maintenance procedures which are given in the Operation & Maintenance Manual can be performed by the owner/operator without any specific technical training. Maintenance procedures which are not in the Operation & Maintenance Manual must be performed ONLY BY QUALIFIED SERVICE PERSONNEL. Always use genuine Ignite Attachments replacement parts.
  • Page 23: Troubleshooting

    PREVENTIVE MAINTENANCE TROUBLESHOOTING Troubleshooting The Implement WARNING INSUFFICIENT INSTRUCTIONS HAZARD Untrained operators or failure to follow instructions can cause serious injury or death. • Read and understand the Operation & Maintenance Manual and decals on machine. • Follow warnings and instructions in the manuals when making repairs, adjustments or servicing.
  • Page 24: Service Schedule

    PREVENTIVE MAINTENANCE SERVICE SCHEDULE Maintenance Intervals Maintenance work must be done at regular intervals. Failure to do so will result in excessive wear and early failures. Explanation of the service intervals: • 10: Every 10 hours or daily (before starting the machine). •...
  • Page 25: Scarifier Teeth

    PREVENTIVE MAINTENANCE The cutting edge (Item 1) [Figure 24] is reversible. SCARIFIER TEETH When the cutting edge becomes worn or damaged, Removing And Installing Scarifier Teeth lower the box blade until it is 25,0 – 51,0 mm (1–2 in) off the ground. Use a safety stand or wood blocks to Figure 25 support the box blade.
  • Page 26: Storage And Return To Service

    PREVENTIVE MAINTENANCE STORAGE AND RETURN TO SERVICE Implement Storage Sometimes it may be necessary to store your Ignite Attachments implement for an extended period of time. Below is a list of items to perform before storage. • Thoroughly clean and wash the implement.
  • Page 27: Specifications

    Where applicable, specifications conform to SAE and ISO standards and are subhject to change without notice. Figure 26 P142024a DESCRIPTION BLADE BOX 48 BLADE BOX 60 BLADE BOX 72 Overall Width (A) 1254 mm (49.38 in) 1553 mm (61.13 in) 1857 mm (73.13 in)
  • Page 28: Performance Specifications

    SPECIFICATIONS PERFORMANCE SPECIFICATIONS DESCRIPTION BLADE BOX 48 BLADE BOX 60 BLADE BOX 72 Working Width 1270 mm (50 in) 1562 mm (61.5 in) 1867 mm (73.5 in) Number of Shanks Shank 0 – 76 mm (0 – 3 in) 0 – 102 mm (0 – 4 in) 0 –...
  • Page 29: Warranty

    WARRANTY IMPLEMENT WARRANTY A statement explaining the terms and conditions of the warranty coverage that applies to your implement is available by visiting Igniteattachments.com.
  • Page 30 ALPHABETICAL INDEX backfill blade return to service ............24 operating...............15 ballast setting up .............. 11 safety rules ..............6 scarifier teeth adjusting ...............16 removing and installing...........23 call before you dig ............6 serial number compact tractor location ..............3 approved models ........... 11 service schedule ............22 cutting edge silica dust exposure removing and installing...........22...
  • Page 32 Reference Information Product Serial Number: Engine Serial Number: Dealer Information: WARNING Cancer and Reproductive Harm. This product can expose you to chemicals including lead and lead compounds, mineral oils, and phthalates which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
