INCU™ II Skin Temperature

Introduction

The INCU™II Skin Temperature Heater Assembly (the Product or Accessory)

uses a controlled temperature environment to test the skin temperature sensors

of incubators or radiant warmers. The Accessory connects to the INCU™II

Incubator Analyzer (the Analyzer). To use the Accessory, see Skin Temperature

Sensor Accuracy.

Intended Use

The intended use for the Analyzer and skin temperature heater is to test in

compliance with standards, perform preventative maintenance, repair

verification, and routine verification of baby incubators and radiant warmers. The

intended user is a trained biomedical equipment technician who performs

periodic preventative maintenance checks on baby incubators and radiant

warmers in service. Users can be associated with hospitals, clinics, original

equipment manufacturers and independent service companies that repair and

service medical equipment. The end user is an individual, trained in medical

instrumentation technology.

This Product is intended to be used in the laboratory environment, outside of the

patient care area, and is not intended for use on patients, or to test devices while

connected to patients. This Product is not intended to be used to calibrate

medical equipment. It is intended for over the counter use. Designed around

AAMI and IEC standards that specify incubator and radiant warmer sound levels,

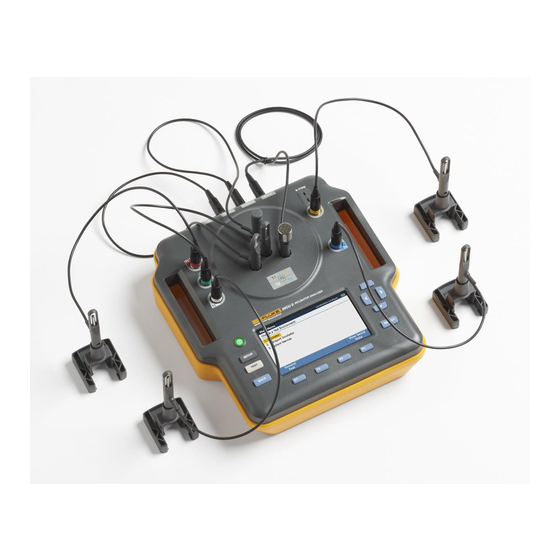

airflow, and thermal characteristics, the INCU II simultaneously measures airflow,

relative humidity, sound, and five independent temperatures. The skin

temperature heater measures the temperature of the incubator and radiant

warmer skin temperature sensor.

Safety

A Warning identifies hazardous conditions and actions that could cause bodily

harm or death. A Caution identifies conditions and actions that could damage

the Product, the equipment under test, or cause permanent loss of data.

PN 4754298 January 2016, Rev. 1

Specifications are subject to change without notification.

All product names are trademarks of their respective companies.

Fluke Corporation

P.O. Box 9090

Everett, WA 98206-9090

U.S.A.

Heater Assembly

Fluke Europe B.V.

P.O. Box 1186

5602 BD Eindhoven

The Netherlands

Instructions

ООО «Флюк СИАЙЭС»

125167, г. Москва,

Ленинградский проспект дом 37,

корпус 9, подъезд 4, 1 этаж

Table of Contents

Need help?

Do you have a question about the INCU II and is the answer not in the manual?

Questions and answers

Summary of Contents for Fluke INCU II

Page 1 It is intended for over the counter use. Designed around AAMI and IEC standards that specify incubator and radiant warmer sound levels, airflow, and thermal characteristics, the INCU II simultaneously measures airflow, relative humidity, sound, and five independent temperatures. The skin temperature heater measures the temperature of the incubator and radiant warmer skin temperature sensor.
Page 2 Warning To prevent possible electrical shock, fire or personal injury, follow these guidelines: • Read all safety information before you use the Product. • Carefully read all instructions. • Use the Product only as specified, or the protection supplied by the Product can be compromised.
Page 3 Set Up the Accessory Table 2 shows the Accessory indicators and connections. Important note: Set the calibration factors before first use. Table 2. The Accessory  Power button  Power indicator  Connector to the Analyzer  Power cord...
Page 4 Skin Temperature Sensor Accuracy 201.12.1.103 (Baby Incubator) 201.12.1.103 (Transport Incubator) 201.12.1.101 (Radiant Warmer) Use the Accessory to compare the skin temperature sensor indication to a calibrated temperature sensor. Pass Criteria Skin temperature sensor indication = Analyzer measurement ±0.3 °C Prepare for the Test To get accurate results: •...
Page 5 Note The test will not start if the temperature is ≥30 °C. On the Analyzer, use  and  to enter the temperature shown on the DUT and then push . Maintenance The Accessory needs little maintenance or special care. Treat the Analyzer as a calibrated measurement instrument.
Page 6 Warranty and Product Support Fluke Biomedical warrants this instrument against defects in materials and workmanship for one year from the date of original purchase. During the warranty period, we will repair or at our option replace, at no charge, a product that proves to be defective, provided you return the product, shipping prepaid, to Fluke Biomedical.
