Notes and Warnings Symbol Definitions Regulatory Information The following symbols are used throughout this manual The equipment discussed within this manual has been test- ed to the following standards: This symbol is intended to alert the installer of shock hazards within the enclosure . Service should only be •...

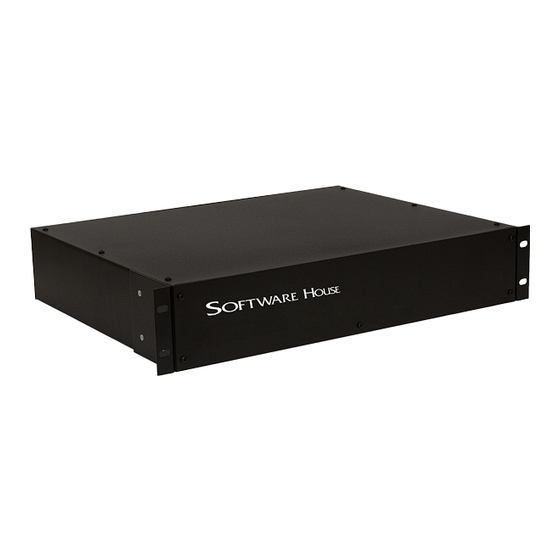

PSX Rackmount Power Supply - Installation and Operation Manual Introduction Product Description rackmount series of power supplies provide DC terminal strips for field wiring, input and output surge sup- power for lifesafety applications . Designed to fit neatly into pression, automotive blade fuses for improved reliability, standard 19"...
Installation and Operation Section 1 – Installation The following pages cover the installation of the PSX Series rack-mountable power supplies . 1 .1 Mounting the Rack Mount Supply into a Standard 19" Rack Use the following procedure when mounting an PSX series NOTE: Use rails or other appropriate support for heavy supply into a standard EIA 19"...
PSX Rackmount Power Supply - Installation and Operation Manual 1 .2 PSX Rackmount Power Supply Overview MAIN OUTPUT 2 MAIN OUTPUT 1 AC Power 10-100 Base-T — — — PSX-GCM / PSX-ISU ...
Page 7
(if present) . The ethernet cable is plugged into this jack . This jack • Off - Fuse ruptured or jumper missing is only present on PSX series power supplies with a model number end- • Flashing - Door unlocked due to input or FAI ing in "N" . See Section 2 . 2 and the corresponding NetLink manual for...
1.3.2 Configuring for a 230VAC Input Voltage minal, move it to the NC terminal, and tighten the terminal . The PSX series is factory set for a 120VAC input . If the PSX NOTE: This must be done on BOTH power supplies in dual- is to be used with a 230VAC input, jumper JP1 must be cut on supply models.
Page 9
Installation and Operation PSX-75 Earth GND Battery DETECT PSX-150 Voltage SELECT PSX-250 230VAC jumper Figure 3 - Configuring the Internal PSX Power Supplies in a Rackmount System cut jumper for 230VAC AC Input AC ON...
PSX Rackmount Power Supply - Installation and Operation Manual 1 .4 Making the Wiring Connections DC2+, DC2– Field wiring connections are made on the rear panel after installing the PSX enclosure into the rack . Field wiring connections are made The DC2 output may optionally be controlled by the FAI in- to the removable terminal strips, which accept AWG 12-22 wire .
Installation and Operation 1 .5 FAI Connections This section provides more detailed information on the connection and usage of the FAI input . Activation with a Normally Open Relay Contact Latching the FAI Input FAI Activates when the Latching of the FAI Input FAI INPUT FAI INPUT FAI INPUT...
Section 2 – Power and Network Connections 2 .1 Main AC Power Connection To connect the PSX Series to the main AC power source, plug The PSX Series is preconfigured for a 120VAC input . one end of the included computer-style AC cord into the AC See section 1 .3 .2 to set for a 230VAC input .
Installation and Operation Section 3 – Configuration and Usage This section describes the final configuration as well as operation details for the PSX series power supplies . 3 .1 Removing the Faceplate of the Enclosure Use the following steps to remove the faceplate of the rack- mount enclosure and gain access to the front boards .
PSX Rackmount Power Supply - Installation and Operation Manual 3 .3 Configuring the Zones - PSX-ISU Each output zone is configurable for one of two selections which vary by model type . Selections are made by moving the zone's corresponding jumper (marked as B1 and B2 on the PC Board) .
Installation and Operation 3 .5 Status LEDs - PSX-ISUSE Each front board has nine LEDs (see figure 11) . VOLTAGE SELECT JUMPERS The eight green LEDs indicate the status of the zone’s output . • On Steady – Door Locked (Fuse or PTC Intact) • Flashing –...
PSX Rackmount Power Supply - Installation and Operation Manual Section 4 – Specifications 4 .1 Electrical Specifications Specifications PSX-GCM-RB PSX-ISU 150W PSX-ISU 250W AC Input Voltage 120/230VAC 120/230VAC 120/230VAC ±15% at 50-60Hz ±15% at 50-60Hz ±15% at 50-60Hz Power 100 Watts 200 Watts 300 Watts Standby...
Page 17
Specifications Section 4 – Specifications 4 .1 Electrical Specifications - continued Specifications PSX-ISUSE 150W PSX-ISUSE 250W AC Input Voltage 120/230VAC 120/230VAC ±15% at 50-60Hz ±15% at 50-60Hz Power 200 Watts 300 Watts Standby Current 100mA 100mA Rated Current for UL603 Proprietary Current 2 .5A maximum from 2 .5A maximum from...
PSX Rackmount Power Supply - Installation and Operation Manual Section 4 – Specifications 4 .2 Temperature Specifications All Models Ambient Temperature 0°C to 49°C (32°F to 120°F) Ambient Humidity 93% at 32°C (90°F) maximum Storage Temperature –30°C to 70°C (–22°F to 158°F) 4 .3 Mechanical Specifications Size (Without Ears) 17 .5"...
Page 19
c o I n t e r n a t i o n a l C o m p a n y User Certificate www.swhouse.com The trademarks, logos, and service marks displayed on this document are registered in the United States [or other countries]. Any misuse of the trademarks is strictly prohibited and Tyco International Ltd. will aggressively enforce its intellectual property rights to the fullest extent of the law, including pursuit of criminal prosecution wherever necessary.
