PAUTBAC II :

Page : 1

USER AND MAINTENANCE

N° Notice

: 10798 Rev-Q

MANUAL

User and Maintenance Manual

Notice N° 10798 Rev-Q

October 2021

PAUTBAC II

User and maintenance manual

www.seres-ol.com

This document is the property of Seres OL and cannot be reproduced without permission

Table of Contents

Need help?

Do you have a question about the PAUTBAC II and is the answer not in the manual?

Questions and answers

Summary of Contents for Seres OL PAUTBAC II

Page 1: User And Maintenance Manual

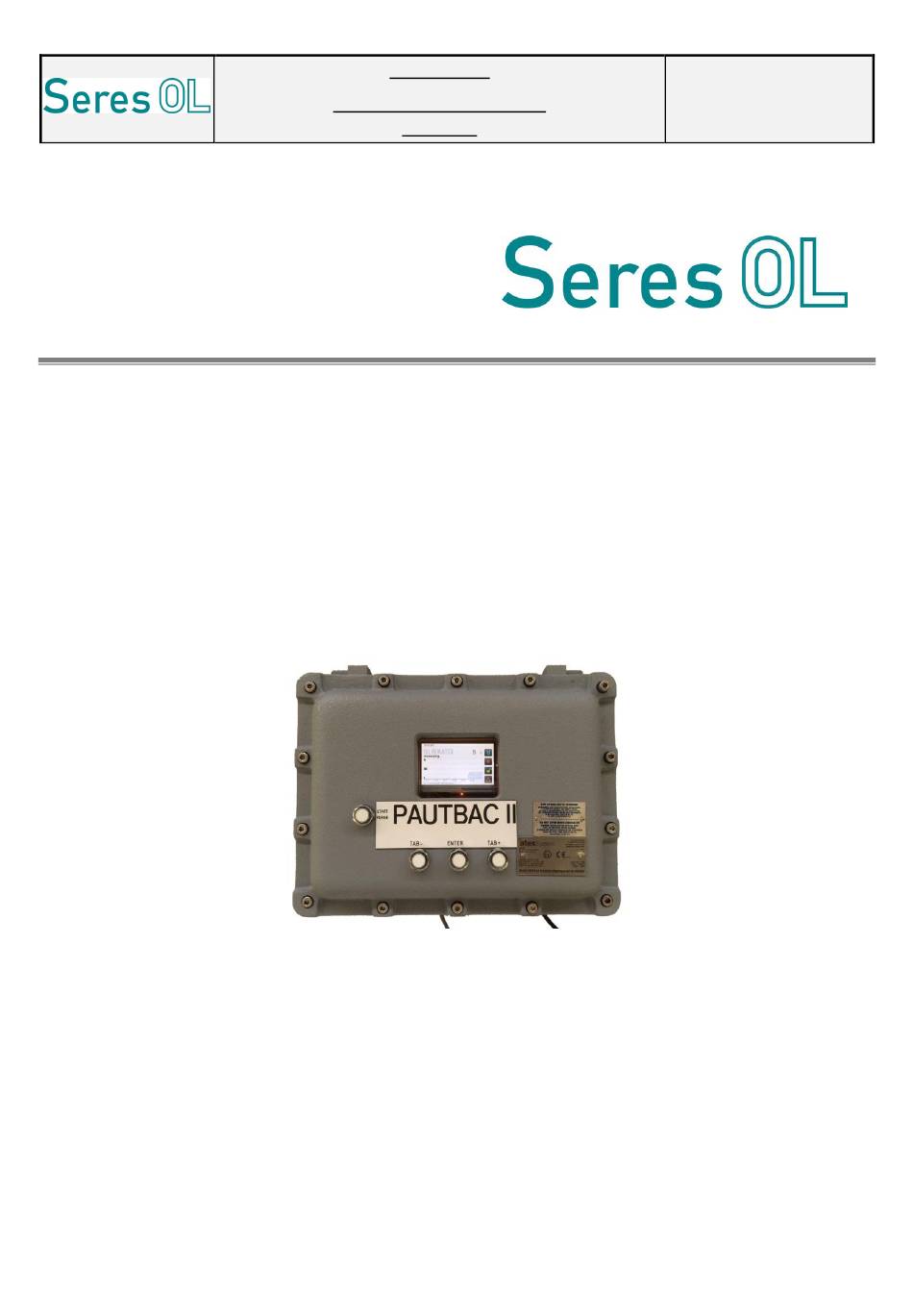

USER AND MAINTENANCE N° Notice : 10798 Rev-Q MANUAL User and Maintenance Manual Notice N° 10798 Rev-Q October 2021 PAUTBAC II User and maintenance manual www.seres-ol.com This document is the property of Seres OL and cannot be reproduced without permission...
Page 2: List Of Versions And Approvals
Update UE-ISO-ATEX declaration – INOX DALIA Nicolas QSSE 10/2020 Cabinet option Deleted Update ISO Certificate LENOBLE Laure QSSE 02/2021 Addition of the purge operating diagram LENOBLE Laure QSSE 10/2021 This document is the property of Seres OL and cannot be reproduced without permission...
Page 3: Table Of Contents
TROUBLESHOOTING ................................28 MAINTENANCE MENU ................................ 32 ................................32 ARDWARE TEST ..................................33 EASURES ................................33 OFTWARE UPDATE LIST OF SPARE PARTS ................................34 ANNEXES ..................................... 35 This document is the property of Seres OL and cannot be reproduced without permission...
Page 4: Warranty Conditions
The equipment warranty won’t be guaranteed by the manufacturer in case of nonobservance of the standards and regulations reported in points 8.1 and hereafter in this book. This document is the property of Seres OL and cannot be reproduced without permission...
Page 5: International Symbols Recognised By Seres
Alternative current IEC 417, No. 5041 Be careful, hot surface ISO 3864, No. B.3.1 Be careful, see documents ISO 3864, No. B.3.6 Be careful, electric shock risks This document is the property of Seres OL and cannot be reproduced without permission...
Page 6: After Sale Service Contact
Information on the company SERES OL 219 Avenue de Provence 13730 SAINT VICTORET FRANCE Tel: +33 (0)4 42.97.37.37 Web: www.seres-ol.com SIRET : 85323753500028 NAF 2651B TVA Intracommunautaire FR84853237535 This document is the property of Seres OL and cannot be reproduced without permission...
Page 7: The Book
Once the access code is entered, if there is no action within 10 minutes, the code will be asked again automatically except during calibration. If the code is unknown, press Cancel and the main page will appear automatically. This document is the property of Seres OL and cannot be reproduced without permission...
Page 8 If the code is unknown, press Cancel and the main page will appear automatically. THE PAGE IS TO BE CUT AND KEPT IMPERATIVELY This document is the property of Seres OL and cannot be reproduced without permission...
Page 9: Measuring Principle
-1 Electrical connection -2 Box for the main electronic board of the measuring chamber -3 Temperature probe -4 Sample outlet -5 Sample probe -6 Sample inlet This document is the property of Seres OL and cannot be reproduced without permission...
Page 10: Principle Diagram
PAUTBAC II : Page : 10 USER AND MAINTENANCE N° Notice : 10798 Rev-Q MANUAL Principle diagram (INOX CABINET OPTION IS DELETED) This document is the property of Seres OL and cannot be reproduced without permission...
Page 11: Principle Diagram (On Rain Water Of Tanks With Floating Roofs)
PAUTBAC II : Page : 11 USER AND MAINTENANCE N° Notice : 10798 Rev-Q MANUAL (ON RAIN WATER OF TANKS WITH FLOATING ROOFS) 4.4 Principle diagram This document is the property of Seres OL and cannot be reproduced without permission...
Page 12: Technical Specifications
5.1.3 Power cables carateristics Cable gland: Not delivered, box with M20 threaded hole (Plugs included) Cable terminals sections:  Power  3mm² maxi  I/O signals 1.5mm² maxi This document is the property of Seres OL and cannot be reproduced without permission...
Page 13: Electrical Connections
PAUTBAC II : Page : 13 USER AND MAINTENANCE N° Notice : 10798 Rev-Q MANUAL Electrical connections : This document is the property of Seres OL and cannot be reproduced without permission...
Page 14: Dimension
Hydraulic connection: Bride PN20 type ASA150 5.3.1 Electrical specifications Consumption : Typical : 15 VA - Maximum 30 VA Input power supply : 90~240 V, 50/60 Hz This document is the property of Seres OL and cannot be reproduced without permission...
Page 15 PAUTBAC II : Page : 15 USER AND MAINTENANCE N° Notice : 10798 Rev-Q MANUAL 5.3.2 ATEX box This document is the property of Seres OL and cannot be reproduced without permission...
Page 16 PAUTBAC II : Page : 16 USER AND MAINTENANCE N° Notice : 10798 Rev-Q MANUAL 5.3.3 Mesuring chamber This document is the property of Seres OL and cannot be reproduced without permission...
Page 17: User's Manual
-The “Resume/Stop” button allows pausing or resuming the cycle. -The "login" button allows locking or unlocking the tactile screen. .The "alarm list" button displays all alarms and conditions. This document is the property of Seres OL and cannot be reproduced without permission...
Page 18: List Of Menus
Set the analogue output (0-24mA) Configuration of the RS232 output Configuration of the JBUS output Setting the valve and start time Choice of language Choice of operating mode This document is the property of Seres OL and cannot be reproduced without permission...
Page 19 Display the software version and Seres reference numbers 6.2.1 User settings After login identification, press and you get first screen then press Settings and you will arrive on this screen. This document is the property of Seres OL and cannot be reproduced without permission...
Page 20 You may achieve a more accurate setting of the 4/20mA by changing the "low point" and "high point" values and by pressing the buttons below to test your changes This document is the property of Seres OL and cannot be reproduced without permission...
Page 21 Reading Alarm "Emergency stop " 0x0040 1028 Reading Alarm "Memory default " 0x0040 1029 Reading Alarm "Pot mes. default " 0x0040 1030 Reading Alarm "Pot temp. default " 0x0040 1031 This document is the property of Seres OL and cannot be reproduced without permission...
Page 22 Writing Rain Max purge timing 0x0080 word Default configuration: RTU - 1 start bit, 8 data bits, 1 stop bit, no parity - 19200 baud This document is the property of Seres OL and cannot be reproduced without permission...
Page 23 PAUTBAC II : Page : 23 USER AND MAINTENANCE N° Notice : 10798 Rev-Q MANUAL 6.2.1.6 Purge timing setting General diagram of the purge operation This document is the property of Seres OL and cannot be reproduced without permission...
Page 24 Purging frequency: incrementing the time of opening after each closing 1h to 999 h 6.2.1.7 Setting of the language You have a choice of 4 languages: French, English, Chinese and Russian. For this, you must press the relevant button. This document is the property of Seres OL and cannot be reproduced without permission...
Page 25 The MES.txt file created on the key contains the time and date stamp, the state of the cycle, the measurement value and the status of alarms. This document is the property of Seres OL and cannot be reproduced without permission...
Page 26 Never save any settings under the Seres password. 6.2.2.4 Restoring factory settings (SERES settings) Validate for all factory settings to be restored. You will lose all your own settings. This document is the property of Seres OL and cannot be reproduced without permission...
Page 27 This screen shows the name of the detector, the software version as well as SERES information. This information is useful when an intervention on the device is required This document is the property of Seres OL and cannot be reproduced without permission...
Page 28: Troubleshooting
In these windows, alarms of each type appear only once The display "Started” and “Ended" allows to classify chronologically these alarms The red light means that the alarm is in progress This document is the property of Seres OL and cannot be reproduced without permission...
Page 29  The analyzer failure relay is activated. It moves from “NC” to “NO” and stay in this position until the alarms disappear. The contact of this relay is available on the X10 connector terminals 7-8-9. This document is the property of Seres OL and cannot be reproduced without permission...
Page 30 The analyzer failure relay is activated. It moves from “NC” to “NO” When the problem is solved, the unit goes back into its normal cycle (Difference with blocking failure) This document is the property of Seres OL and cannot be reproduced without permission...
Page 31 The buzzer alarm will be activated and the cycle will be stopped.  A user action will be required.  The analyzer failure relay is activated. It moves from “NC” to “NO" This document is the property of Seres OL and cannot be reproduced without permission...
Page 32: Maintenance Menu
24V is present at the corresponding output. 8.1.3 Dry contact inputs test From Harware test -> Input Tor: Inputs: Command the input to be tested and check that the button changes state. This document is the property of Seres OL and cannot be reproduced without permission...
Page 33: Measures
If you want to load the program, press the button. Updating in progress… You have to remove the USB key « Remove USB to reboot » to reboot the system. This document is the property of Seres OL and cannot be reproduced without permission...
Page 34: List Of Spare Parts
PAUTBAC II : Page : 34 USER AND MAINTENANCE N° Notice : 10798 Rev-Q MANUAL 9 List of Spare Parts This document is the property of Seres OL and cannot be reproduced without permission...
