SmartRecorder™ 4 Troubleshooting Guide

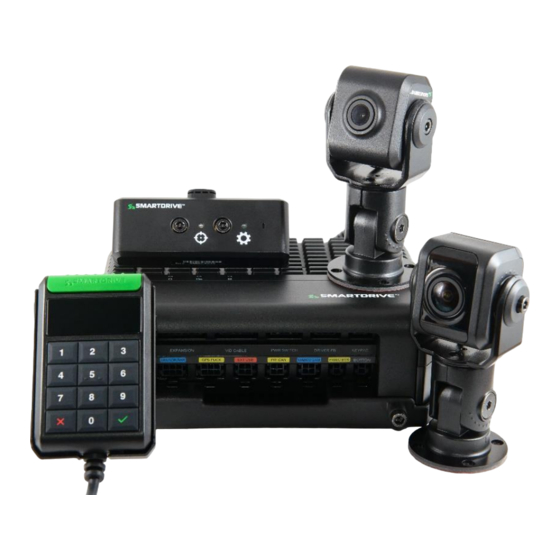

SmartRecorder™ 4 with Accessories
Maintenance and Diagnostics Guide
vs 1.1 (February 2018)
The SmartRecorder 4™ (SR4) System captures and stores exception-based videos of your vehicles and drivers
on the road. The SR4 is triggered by unsafe accelerations, excessive speeds, and manual activations. When
triggered, the system records multiple videos, audio, and vehicle movements, providing a comprehensive view
about what caused the event. The system automatically sends the events to the SmartDrive Expert Review
Center for analysis and presentation to the fleet supervisor.
Note – This is a preliminary version of the SmartRecorder 4 Troubleshooting Guide. Contents of this guide are
subject to change without notice. For the latest version of this guide please check with your SmartDrive
representative.
The information contained herein is strictly confidential and is supplied exclusively to SmartDrive
Customers with the understanding that this information will be held confidentially and not disclosed to third
parties without the prior written consent of SmartDrive Systems, Inc.
SmartDrive, the SmartDrive Logo, SmartDrive Safety and SmartRecorder4 are registered trademarks or
trademarks of SmartDrive Systems.
All other brands and product names are trademarks or registered trademarks of their respective owners.
Information supplied by SmartDrive is believed to be accurate and reliable. SmartDrive Systems assumes no
responsibility for any errors in this document. SmartDrive Systems reserves the right, without notice, to makes
changes in product design or specifications.
1
Copyright © 2018 SmartDrive Systems, Inc. All rights reserved. This information is intended for the use of SmartDrive
customers only. Any other use without the express written consent of SmartDrive Systems, Inc. is strictly prohibited.
