Fransgård
User Manual
GB
S-220-1
Snow Blower
S-220-3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-220-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fransgard S-220-1

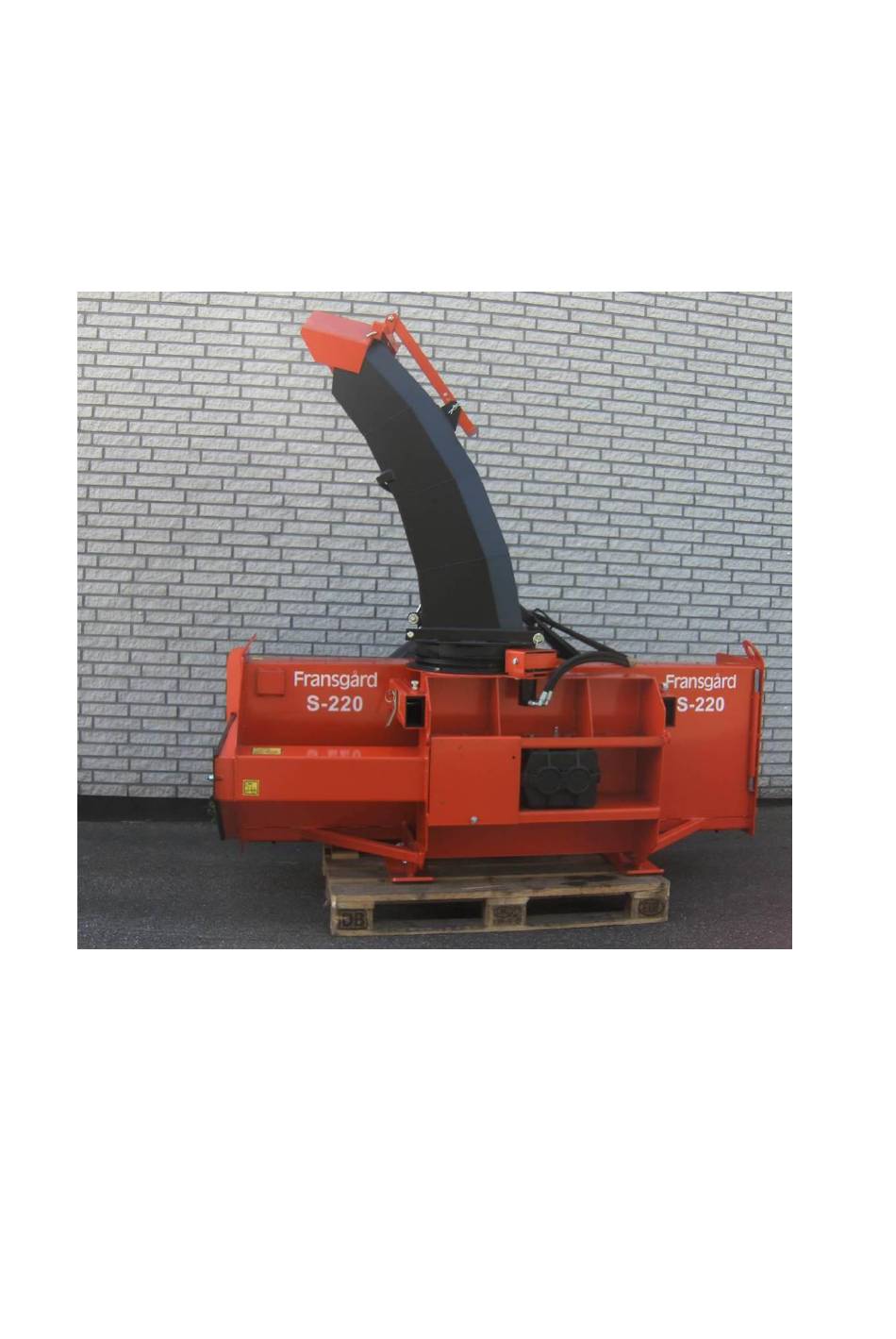

  • Page 1 Fransgård User Manual S-220-1 Snow Blower S-220-3...
  • Page 2 Fransgård Maskinfabrik A/S Fredbjergvej 132 DK-9640 Farsø, Denmark Phone : +45 98 63 21 22 Fax: : +45 98 63 18 65 www.fransgard.dk mail@fransgard.dk...

  • Page 3: Table Of Contents

    Table of Contents Page Introduction ................2 General information about the machine ......... 3 Tractor requirements .............. 4 Transport ................5 Assembly ................6 Hitching up the machine............5 Fitting additional equipment ..........7 Starting up the machine ............9 Unhitching ................

  • Page 4: Introduction

    Introduction Fransgård machines have been developed for the professional user who values high capacity and reliability and wants to perform the task easily and efficiently. Fransgård snow blowers are only intended for use as follows: The removal of snow from roads and public spaces – they must therefore only be used for this purpose.

  • Page 5: General Information About The Machine

    General information about the machine Shut down the tractor engine and remove the ignition key before touching the machine. Always remember to shut down the tractor engine before lubricating, adjusting, maintaining or repairing the machine. You should also remove the ignition key so that you can be sure no one will restart the tractor before you have finished.

  • Page 6: Tractor Requirements

    Tractor requirements The tractor driver should use ear defenders if full closure of the cab is not possible. In order to retain full control of the tractor in all conditions, at least 20% of the tractor’s total weight must be distributed over the front axle.

  • Page 7: Transport

    Transport When moving the machine, this must only be performed as indicated in the drawing. 2200 mm 2010 mm 1250 mm Weight : 560 kg...

  • Page 8: Assembly

    Assembly Fit the rotating collar to the frame. Fit the oil pump. Adjust the oil pump so that it is as near to the rotating collar as possible. Then check that the rotating collar can be rotated by hand through 360 degrees unhindered. Fit the chute to the rotating collar.
  • Page 9 Set the top link so that the machine stands on its skid shoes and the points of the wear strips are approx. 10 mm from the ground. Fit the hydraulic hoses in the tractor’s hydraulic flow and return unions. Before activating the hydraulic system, you should check that all hydraulic connections are tight and all hoses and fittings are undamaged.

  • Page 10: Fitting Additional Equipment

    The shaft must be of a size and quality that will meet the approval requirements of Fransgård Maskinfabrik A/S; if necessary, contact your dealer/importer. Make sure the shaft’s protective guard is intact and that the two shaft halves can slide together. The length of the power take-off shaft must be properly adjusted;...
  • Page 11 Fitting electric chute flap control: Fit as indicated on the spare parts pages. Secure the mounting plates to the tractor cab in a central location and fit the control box to the plates. Insert the cable with its plug into the cigarette lighter or the fuse box, max.

  • Page 12: Starting Up The Machine

    The snow blower is supplied ready for use from the factory, in other words fully lubricated and with the appropriate quantity of oil in the gearbox: S-220-1: 2.2 litres S-220-3: 3.2 litres Type: TEXACO MEROPA 320 or MOBIL GEAR 632.

  • Page 13: Unhitching

    Unhitching After using the machine, unhitch it as follows: REMEMBER: The tractor power take-off must always be disconnected when working near the machine and on the power take-off shaft. - Position the machine on a level surface. - Disconnect the hydraulic hoses. - Disconnect the power take-off shaft and hang it on the hook.

  • Page 14: Lubrication

    Frequent and thorough cleaning of the implements is recommended to extend machine service life. After use, clean the machine of snow, as any frozen snow may otherwise cause problems on subsequent start-up. Remember: Do not spray water directly on the bearings or bearing housings.

  • Page 15: Safety

    Safety As stated, the machine requires skilled operation; in other words, you should read this user manual before hitching the machine to the tractor. Even if you have had a similar machine before, you must still read the manual, as it covers a number of aspects, including your own safety.

  • Page 16: Operating Hazards

    Before raising or lowering the machine, you should check that no one is near the machine. Do not use the machine for work other than that for which it is designed. Do not stand between the tractor and machine while hitching or unhitching. Only use original spare parts.

This manual is also suitable for:

S-220-3
