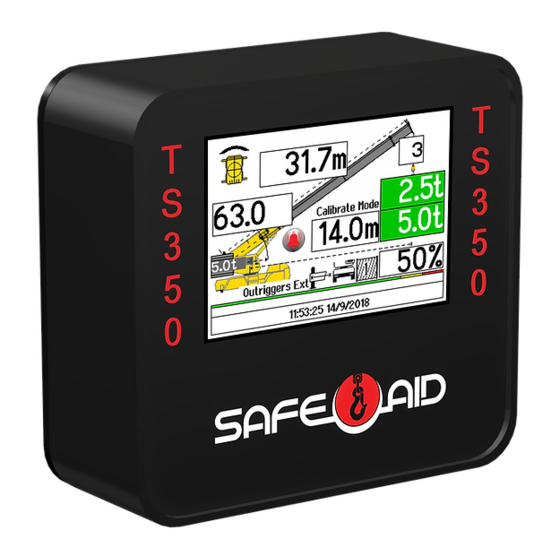

SAFE-AID TS350

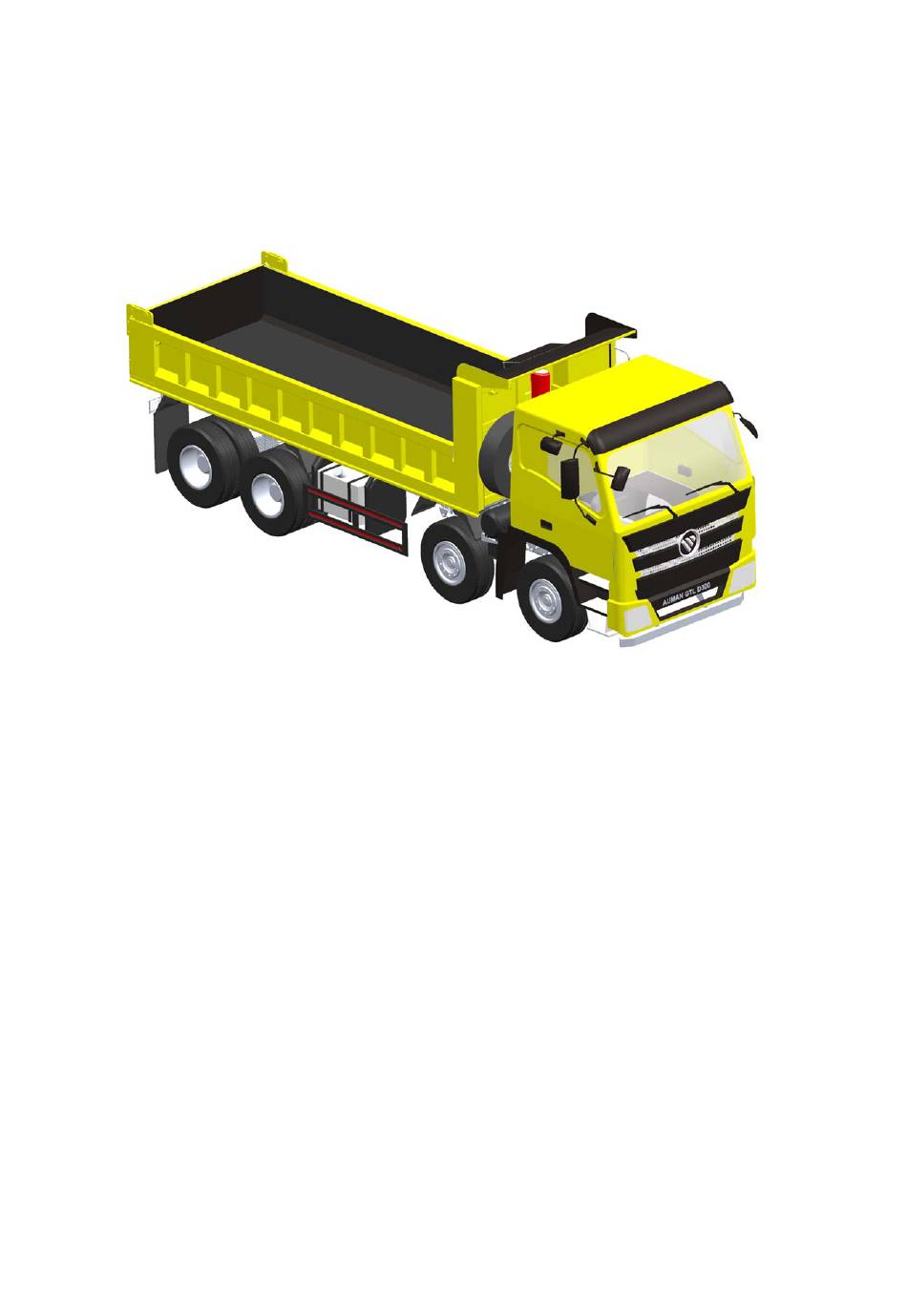

DUMP TRUCK LEVEL INDICATOR
Operators Manual - Version I
! WARNING !
THE PURPOSE OF THIS MANUAL IS TO PROVIDE THE USER WITH THE OPERATING
PROCEDURES ESSENTIAL FOR THE PROMOTION OF PROPER MACHINE OPERATION FOR ITS
INTENDED USE. THE IMPORTANCE OF PROPER USAGE CANNOT BE OVERSTRESSED. ALL
INFORMATION IN THIS MANUAL SHOULD BE READ AND UNDERSTOOD BEFORE ANY
ATTEMPT IS MADE TO OPERATE THE MACHINE.
SINCE THE MANUFACTURER HAS NO DIRECT CONTROL OVER MACHINE APPLICATION AND
OPERATION, CONFORMANCE WITH GOOD SAFETY PRACTICE IN THIS AREA IS THE
RESPONSIBILITY OF THE USER AND HIS OPERATING PERSONNEL.
ALL PROCEDURES ARE BASED ON THE USE OF THE SYSTEM UNDER PROPER OPERATING
CONDITIONS, WITH NO DEVIATIONS FROM THE ORIGINAL DESIGN. ALTERATION AND OR
MODIFICATION OF THE EQUIPMENT IS STRICTLY FORBIDDEN WITHOUT PRIOR WRITTEN
APPROVAL FROM ELEC-MECH (PTY) LTD.
BEFORE OPERATING A MACHINE EQUIPPED WITH A SAFE-AID TS350 THE OPERATOR MUST
READ THE INFORMATION IN THIS MANUAL CAREFULLY. CORRECT FUNCTIONING OF THE
SYSTEM DEPENDS UPON ROUTINE DAILY INSPECTION AND ANY SUSPECTED FAULTS OR
APPARENT DAMAGE SHOULD BE IMMEDIATELY REPORTED TO THE RESPONSIBLE PERSON
BEFORE USING THE MACHINE.
Advertisement
Table of Contents
Summary of Contents for ELEC-MECH SAFE-AID TS350
- Page 1 MODIFICATION OF THE EQUIPMENT IS STRICTLY FORBIDDEN WITHOUT PRIOR WRITTEN APPROVAL FROM ELEC-MECH (PTY) LTD. BEFORE OPERATING A MACHINE EQUIPPED WITH A SAFE-AID TS350 THE OPERATOR MUST READ THE INFORMATION IN THIS MANUAL CAREFULLY. CORRECT FUNCTIONING OF THE SYSTEM DEPENDS UPON ROUTINE DAILY INSPECTION AND ANY SUSPECTED FAULTS OR APPARENT DAMAGE SHOULD BE IMMEDIATELY REPORTED TO THE RESPONSIBLE PERSON BEFORE USING THE MACHINE.
-
Page 2: Table Of Contents
Contents SYSTEM USE ............................3 SYSTEM STARTUP ..........................3 OPERATING SCREEN......................... 4 ERRORS & ALARMS .......................... 5 SET DATE & TIME ..........................7 PRE-OPERATION CHECKS ....................... 7 TOUCH SCREEN CALIBRATION ..................... 8 INSTALLATION DETAILS ....................... 10 ... -
Page 3: System Use
SYSTEM USE The Safe-Aid TS350 unit is designed with ease of operation in mind. The system goes directly into its monitoring screen requiring no input from the operator. All inputs to the system are done by the operator via the touch screen. The touch... -
Page 4: Operating Screen
OPERATING SCREEN The current machine information can be viewed from here. In operating mode, you can see all the current parameters. X & Y axis of machine where is X is left to right of machine and Y is front to back. The positive angle will be shown which will be shown on the position where the machine is highest. -
Page 5: Errors & Alarms
Park Brake On – automatically monitored by a pressure switch therefore should be confirmed as working before starting work. Fail safe operation so will show as off in case of switch failure. Date & Time – The TS350 system has an internal real time clock which displays date a time on the main running screen in the top left-hand corner This must be checked monthly and set as and when required as the data logger uses this for setting the logged information –... - Page 6 Load Bin Down - must be down when park brake is off after a pre-set time delay. Loadbed Up Error displayed when park brake is disengaged, and the load bed is not down. Park Brake – monitored when engaged. Page 6 SAFE AID TS350 DUMP TRUCK LEVEL INDICATOR OPERATORS’...
-
Page 7: Set Date & Time
SET DATE & TIME The date and time can be adjusted as required, if the date and time does not save the battery for the real time clock is no longer working (see Real Time Clock battery replacement). Use the following steps to adjust the date & time: 1. -
Page 8: Touch Screen Calibration
TOUCH SCREEN CALIBRATION If the screen is not responding correctly to touch, the touch screen may need to be calibrated. Make sure that the Front Facia (Sticker) is in good condition (no dents or damage) as this can affect the touch screen. Replace Front Facia if damaged. - Page 9 Page 9 SAFE AID TS350 DUMP TRUCK LEVEL INDICATOR OPERATORS’ MANUAL VERSION 1...
-
Page 10: Installation Details
INSTALLATION DETAILS Installation Done By: Notes: ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Reg No. 1983/011830/07 Tel No: +27 (0) 11 792-1084 P.O. Box 2704 Randburg 2125 South Africa Email: info@elecmech.co.za www.elecmech.co.za Page 10 SAFE AID TS350 DUMP TRUCK LEVEL INDICATOR OPERATORS’ MANUAL VERSION 1...
