OPERATING AND INSTALLATION INSTRUCTIONS
Hawker Electronics Limited
57 The Avenue,
Rubery Industrial Estate,
Birmingham, B45 9AL.
Tel: +44(0)121-453-8911
Fax: +44(0)121-453-3777
www.hawker-electronics.co.uk
e-mail: info@hawker-electronics.co.uk

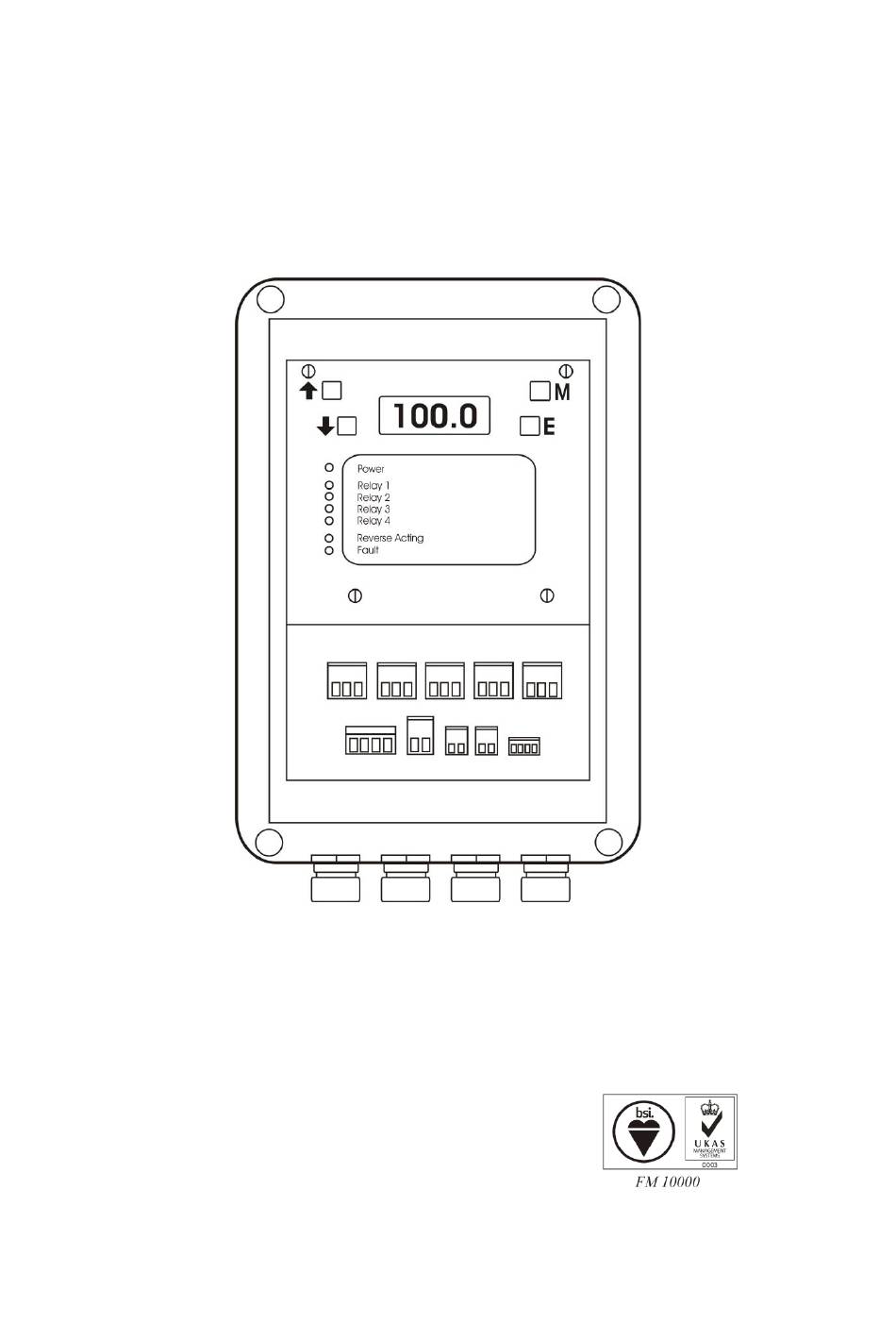

FLEXILEVEL 3
Indicator and Controller
O&M 96
Issue A
Aug 2020
Advertisement
Table of Contents
Related Manuals for Hawker FLEXILEVEL 3
Summary of Contents for Hawker FLEXILEVEL 3
- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS FLEXILEVEL 3 Indicator and Controller Hawker Electronics Limited O&M 96 57 The Avenue, Issue A Rubery Industrial Estate, Aug 2020 Birmingham, B45 9AL. Tel: +44(0)121-453-8911 Fax: +44(0)121-453-3777 www.hawker-electronics.co.uk e-mail: info@hawker-electronics.co.uk...
-
Page 2: Table Of Contents
Contents Introduction ..........................3 Installation ........................... 3 Mounting and application environment ................... 3 Cleaning and maintenance ....................... 4 Electrical connections – Terminal block descriptions ............... 4 General modes of operation ......................7 Program mode ......................... 8 3.1.1 Viewing existing programmed values ................... 8 Software programming menu descriptions ................ -
Page 3: Introduction
The tank sensor is usually a 2 wire loop powered device that operates with 24VDC supplied from the FXL3. Hawker tank sensors include the MiniSonda, Flexicap and submersible pressure transmitters. Installation This manual should be read in its entirety before installation. -
Page 4: Cleaning And Maintenance
The controller is not intended to be fitted outdoors in direct sunlight or where power washing, rain or other liquid ingress, or chemical corrosion, may occur. The controller may be further installed inside a control panel or other protective housing if required. The maximum operating temperatures must be taken into consideration. - Page 5 keep low voltage signal cables away from hazardous voltage and high current cables. The FXL3 comes with several factory fitted cable glands attached; the user can fit additional glands if required, unused glands can be sealed to maintain the box integrity. Care should be taken not to damage the PCB if drilling the box.
- Page 6 Iout (TB5) Retransmission output mA current. This current output is linearly proportional to the value displayed on the LCD e.g. Tank Level. This current can be used to drive external equipment. The external load should require a mA current input and be low impedance. Multiple loads should be connected in series, see retransmission drive specification in data sheet for load resistance etc.
-
Page 7: General Modes Of Operation
shield (not connected to earth) it can be connected to TB3 pin 4 (-mA). If using an externally powered device see its specific instructions regarding the screen connection. Relay Contacts Relay 1, 2, 3, 4 and Fault Relay (TB6, 7, 8, 9 and 10) Single pole changeover volt free contacts are provided to operate external equipment. -
Page 8: Program Mode
Before the FXL3 can be used some parameters have to be programmed by the user. In all cases this will be at least the tank empty, tank full, LCD low and LCD high values. Other options are configurable via the software menus, these are explained below. Program mode To enter program mode hold the M key for 3s. - Page 9 OPLo Use the UP & DOWN keys to adjust (fine tune) the low mA/Volts retransmission value. This value precisely calibrated at Hawker Electronics factory but the user can adjust if necessary. OPHi Use the UP & DOWN keys to adjust (fine tune) the high mA/Volts retransmission value. This value precisely calibrated at Hawker Electronics works but the user can adjust if necessary.
-
Page 10: Program Mode - Programming Flow Chart
Program mode - Programming flow chart Page 10 of 18... - Page 11 Page 11 of 18...
- Page 12 Page 12 of 18...
-
Page 13: Run Mode - Description
Run mode - Description This is the normal working mode after the unit has been commissioned. When in RUN mode the power LED will be ON and the LCD will display a tank level or volume. The relays will operate at the user programmed ON/OFF points. -
Page 14: Extra Functions Flow Chart
3.5.1 Extra functions flow chart Flexilevel3 LCD Extra Features Menu Tank Cycle and mA Meter Flexilevel3 Button access from Run Mode Pressing M from most menus escapes Press for 3s tCyC: Use the Flexilevel3 UP/DOWN keys to simulate a changing liquid level. This will simulate a varying input mA current instead of using the real tank sensor output. -
Page 15: Display Messages & Led Indicators
Display messages & LED indicators FACIA LED Description General Power LED is ON when AC or DC power is supplied to the product RLY1-4 Relays 1 to 4, LED is ON when the relay is energised, OFF when de- energised Reverse Acting LED is ON when in Reverse Acting retransmission mode Errors ----... -
Page 16: Display Abbreviations With Brief Description
Display abbreviations with brief description Abbreviation Full Form Brief Description CCod Change Code Change the program access code CodE Code Enter the program access code dECP Decimal Point Decimal Point Position for display Error Incorrectly programmed value Forward Retransmission mA is forward acting, i.e. follows input direction IAct Current Acting Retransmission mA direction compared to the input, see ‘For’... -
Page 17: Technical Data
Technical data Data taken at 20°C, 230VAC powered unit, loop powered sensor attached, LCD 0-100.0%, 4-20mA I/O. All relays energised. Due to continuing development specifications are subject to change without notice. Input Supply: 230VAC, 110VAC ±10% 50/60Hz, 24VDC ±10% Input Power: VAC 8VA, VDC 4.5W Inrush Current: 2.7A@24VDC 10ms, 145mA@230VAC 10ms... -
Page 18: Declaration Of Conformity
EU DECLARATION OF CONFORMITY Product Model: Flexilevel 3 (FXL3) Manufacturer: Hawker Electronics Ltd, 57 The Avenue, Rubery Industrial Estate, Rubery, Birmingham, B45 9AL This declaration of conformity is issued under the sole responsibility of the manufacturer. Object of the declaration:...
