Related Manuals for AndyMark am-4846
Summary of Contents for AndyMark am-4846

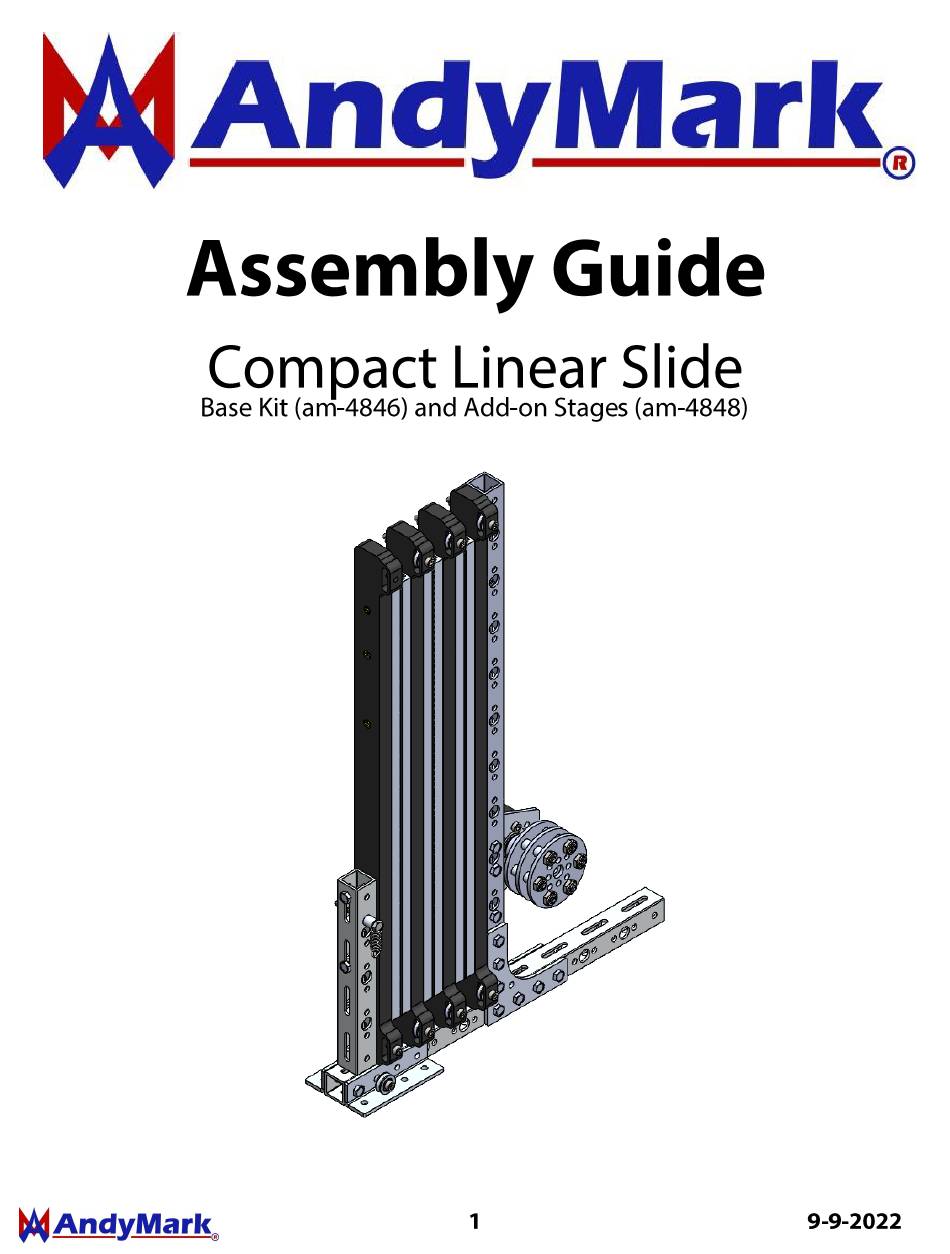

- Page 2 Recommended Tools: Tool Product Number Qty Product Photo Parts Used: Component Product Number Qty Product Photo Linear Slide Base Kit (am-4846)
- Page 4 Double Spool Assembly (am-4849)
- Page 5 Add-on Stage Kit (am-4848)
- Page 6 NOTE: STEPS WITH RED BORDERS ARE DIFFERENT WHEN BUILDING WITH ADDITIONAL STAGES. IF YOU INTEND TO CONSTRUCT A LIFT WITH STAGES BEYOND THE BASE KIT’S SINGLE STAGE, PAY CLOSE ATTENTION TO THESE STEPS.
- Page 7 NOTE: AndyMark recommends the use of threadlocker (am-3171) when attaching these screws. Set Screw...
- Page 8 NOTE: If you intend to add more stages, repeat this step for as many stages as you intend to add! Through-Hole NOTE: AndyMark recommends the use of threadlocker (am-3171) when attaching these screws.
- Page 10 Default Configuration Two-Stage Configuration NOTE: If adding additional stages, shift the upright further away from the angle gusset by 2 holes for each additional stage.
- Page 11 Default Configuration Multi-Stage Configuration...
