Summary of Contents for KAKA Industrial RM24

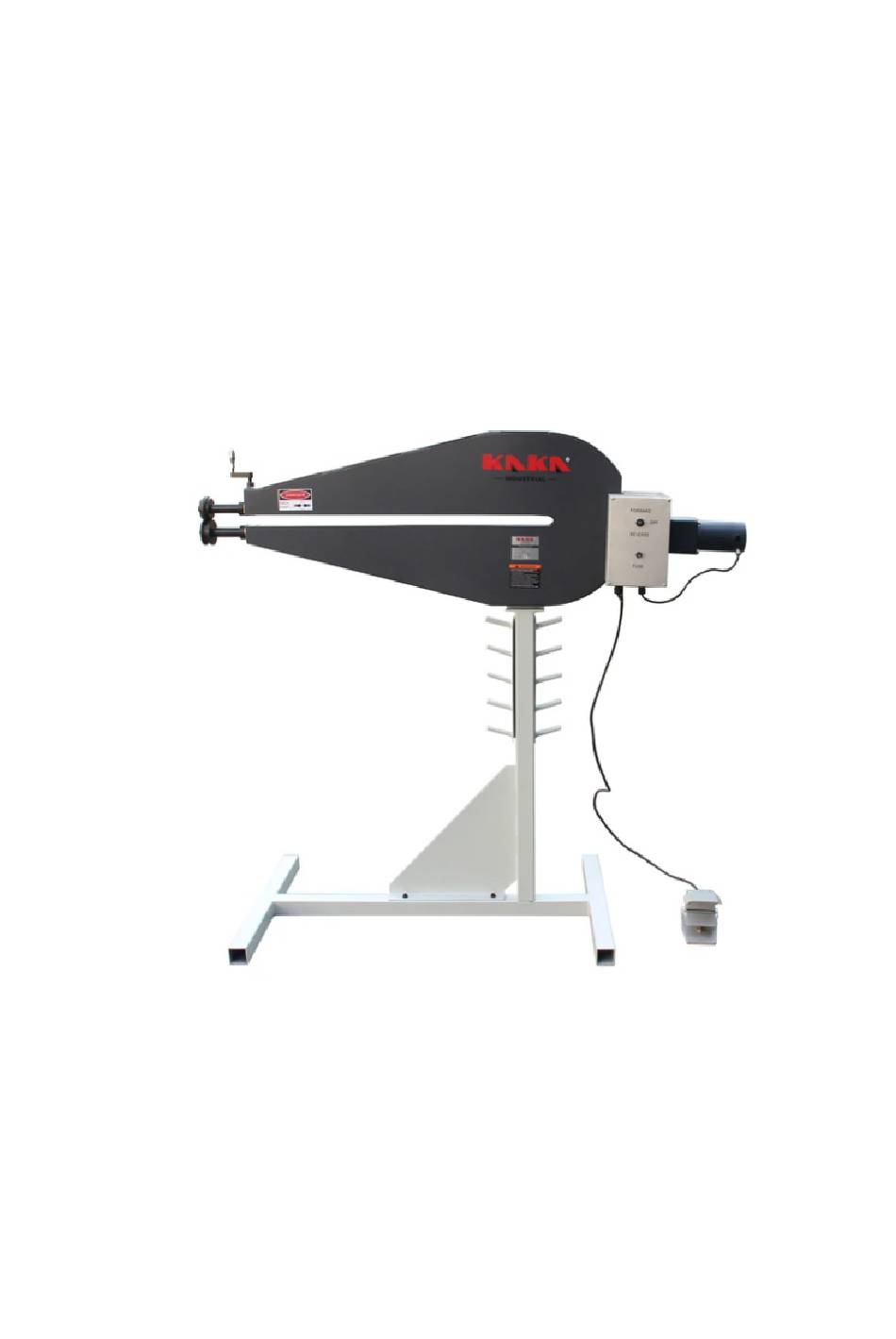

- Page 1 BEAD ROLLER MACHINE MODEL: RM24 / RM36 / RM42 OPERATING MANUAL...
- Page 2 SAFETY The purpose of the safety section of this manual is to inform operators and maintenance personnel of the precautions to be taken while operating or servicing the machine. The following are a few basic guidelines to follow, but as with any type of machinery good judgment and a safe attitude should be applied at all times.
- Page 3 NOTE: THESE SAFETY RULES ARE FOR YOUR BENEFIT TO HELP PREVENT INJURY TO YOURSELF AND/OR YOUR CO-WORKERS. REVIEW ALL SETUP AND OPERATING PROCEDURES, WHETHER COVERED OR NOT, IN THIS MANUAL TO HELP INSURE SAFE OPERATION OF THE MACHINE. MACHINE SET UP 1.
- Page 4 13. Machine is now ready for use. OPERATION 1. Step down on the foot pedal to determine if the rolls are turning in the direction you are going to feed the metal from. 2. Release the foot pedal. 3. If the rolls are not turning in the proper direction, flip the forward / reverse switch.
- Page 5 6X20 Upper shaft Lower shaft Bolt M8X7X9.9X5.5 Copper collar B Upper shaft back block Frame Bolt M8X7X9.9X5.5 Handle mount Handle M6X50 Upper shaft front block Spring roll pin 3X14 Copper collar A Set collar Upper die Washer Allen bolt M10X25 Allen bolt M12X60 Base...
