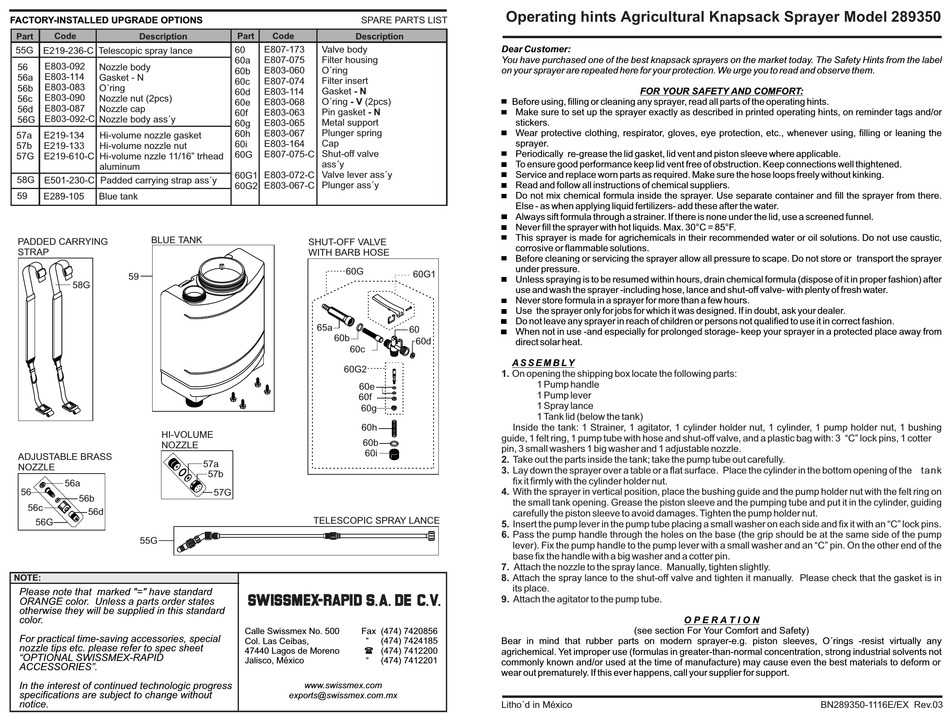

Swissmex-Rapid 289350 Operating

FACTORY-INSTALLED UPGRADE OPTIONS
Code
Part Description
55G E219-236-C Telescopic spray lance
56 E803-092 Nozzle body
E803-114
56a Gasket - N
E803-083
56b O´ring
E803-090
56c Nozzle nut (2pcs)
E803-087
56d Nozzle cap
E803-092-C Nozzle body ass´y
56G
57a E219-134 Hi-volume nozzle gasket
57b E219-133 Hi-volume nozzle nut
57G E219-610-C Hi-volume nzzle 11/16" trhead
aluminum
58G
E501-230-C Padded carrying strap ass´y
59
E289-105 Blue tank
BLUE TANK
PADDED CARRYING
STRAP
59
58G
HI-VOLUME
NOZZLE
ADJUSTABLE BRASS
NOZZLE
56a
56
56b
56c
56d
56G
55G
NOTE:
Please note that marked "=" have standard
ORANGE color. Unless a parts order states
otherwise they will be supplied in this standard
color.
For practical time-saving accessories, special
nozzle tips etc. please refer to spec sheet
"OPTIONAL SWISSMEX-RAPID
ACCESSORIES".
In the interest of continued technologic progress
specifications are subject to change without
notice.

SPARE PARTS LIST

Code
Part Description
Valve body
60 E807-173
E807-075 Filter housing
60a
O´ring
60b E803-060
E807-074 Filter insert
60c
Gasket - N
60d E803-114
60e E803-068 O´ring - V (2pcs)
Pin gasket - N
60f E803-063
60g E803-065 Metal support
E803-067 Plunger spring
60h
60i E803-164 Cap
E807-075-C Shut-off valve
60G
ass´y
E803-072-C Valve lever ass´y
60G1
60G2 E803-067-C Plunger ass´y
SHUT-OFF VALVE
WITH BARB HOSE
60G
65a
60b
60c
60G2
60e
60f
60g
60h
60b
60i
57a
57b
57G
TELESCOPIC SPRAY LANCE
Calle Swissmex No. 500 Fax (474) 7420856
Col. Las Ceibas, " (474) 7424185
 (474) 7412200
47440 Lagos de Moreno
Jalisco, México " (474) 7412201
www.swissmex.com
exports@swissmex.com.mx
Operating hints Agricultural Knapsack Sprayer Model 289350
Dear Customer:
You have purchased one of the best knapsack sprayers on the market today. The Safety Hints from the label
on your sprayer are repeated here for your protection. We urge you to read and observe them.
Before using, filling or cleaning any sprayer, read all parts of the operating hints.
Make sure to set up the sprayer exactly as described in printed operating hints, on reminder tags and/or
stickers.
Wear protective clothing, respirator, gloves, eye protection, etc., whenever using, filling or leaning the
sprayer.
Periodically re-grease the lid gasket, lid vent and piston sleeve where applicable.
To ensure good performance keep lid vent free of obstruction. Keep connections well thightened.
Service and replace worn parts as required. Make sure the hose loops freely without kinking.
Read and follow all instructions of chemical suppliers.
Do not mix chemical formula inside the sprayer. Use separate container and fill the sprayer from there.
Else - as when applying liquid fertilizers- add these after the water.
Always sift formula through a strainer. If there is none under the lid, use a screened funnel.
Never fill the sprayer with hot liquids. Max. 30°C = 85°F.
This sprayer is made for agrichemicals in their recommended water or oil solutions. Do not use caustic,
corrosive or flammable solutions.
Before cleaning or servicing the sprayer allow all pressure to scape. Do not store or transport the sprayer
under pressure.
60G1
Unless spraying is to be resumed within hours, drain chemical formula (dispose of it in proper fashion) after
use and wash the sprayer -including hose, lance and shut-off valve- with plenty of fresh water.
Never store formula in a sprayer for more than a few hours.
Use the sprayer only for jobs for which it was designed. If in doubt, ask your dealer.
Do not leave any sprayer in reach of children or persons not qualified to use it in correct fashion.
60
When not in use -and especially for prolonged storage- keep your sprayer in a protected place away from
60d direct solar heat.
A S S E M B L Y
1. On opening the shipping box locate the following parts:
1 Pump handle
1 Pump lever
1 Spray lance
1 Tank lid (below the tank)
Inside the tank: 1 Strainer, 1 agitator, 1 cylinder holder nut, 1 cylinder, 1 pump holder nut, 1 bushing
guide, 1 felt ring, 1 pump tube with hose and shut-off valve, and a plastic bag with: 3 "C" lock pins, 1 cotter
pin, 3 small washers 1 big washer and 1 adjustable nozzle.
2. Take out the parts inside the tank; take the pump tube out carefully.
3. Lay down the sprayer over a table or a flat surface. Place the cylinder in the bottom opening of the tank
fix it firmly with the cylinder holder nut.
4. With the sprayer in vertical position, place the bushing guide and the pump holder nut with the felt ring on
the small tank opening. Grease the piston sleeve and the pumping tube and put it in the cylinder, guiding
carefully the piston sleeve to avoid damages. Tighten the pump holder nut.
5. Insert the pump lever in the pump tube placing a small washer on each side and fix it with an "C" lock pins.
6. Pass the pump handle through the holes on the base (the grip should be at the same side of the pump
lever). Fix the pump handle to the pump lever with a small washer and an "C" pin. On the other end of the
base fix the handle with a big washer and a cotter pin.
7. Attach the nozzle to the spray lance. Manually, tighten slightly.
8. Attach the spray lance to the shut-off valve and tighten it manually. Please check that the gasket is in
its place.
9. Attach the agitator to the pump tube.
Bear in mind that rubber parts on modern sprayer-e.g. piston sleeves, O´rings -resist virtually any
agrichemical. Yet improper use (formulas in greater-than-normal concentration, strong industrial solvents not
commonly known and/or used at the time of manufacture) may cause even the best materials to deform or
wear out prematurely. If this ever happens, call your supplier for support.
Litho´d in México

FOR YOUR SAFETY AND COMFORT:

O P E R A T I O N
(see section For Your Comfort and Safety)
BN289350-1116E/EX Rev.03
