Introduction
Thank you for purchasing 3NNet KVM switch. 3NNet KVM switch can save your MONEY, TIME,
SPACE, EQUIPMENT and POWER.
Controlling multiple PCs from One Keyboard, Mouse and VGA Monitor. 3NNet KVM switch is
loaded with features such as hot-key, front panel push button and auto scan control. It has complete
keyboard and mouse emulation for simultaneous PCs boot-up process.
Features
2/4 port KVM switch is compact size design, easy portable.
Support Microsoft Intellimouse, Logitech Net Mouse, etc...
Support DOS,Win3.X,Win95/98/98SE/2000/ME/XP,WinNT,Netware,Unix,Linux
Hot Plug - Add or Remove Connected PCs for Maintenance Without Powering Down the
KVM switch or PCs.
Very High Video Quality - Up To 2048X1536, Bandwidth: 400MHz
No Software Required - easy PC selection via Push Buttons, Hot Keys
Auto Scan Mode for monitoring PCs
Keyboard status restored when switching PCs
LED Display for easy status monitoring
Buzzer sound for switching port confirmation.
Package Contents

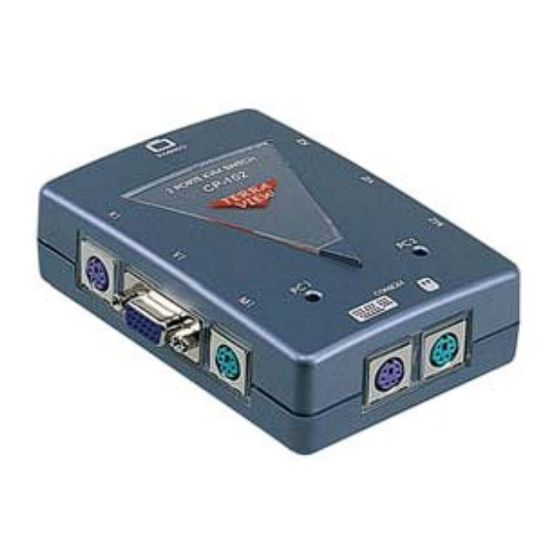

KVM CP-102
3NNet 2 port KVM Switch (Plastic)
User's manual
Technical Specifications
Functions
PC Port
Console Port
MAX PC Connections
LED
PC Port Connector
(All Female Type)
Console port connector
(All Female Type)
PC selection
On Screen Display Control
Scan Intervals
Keyboard Emulation
Mouse Emulation (Console port to PC port)
VGA Resolution
Bandwidth
Daisy Chain and Levels
Housing
Size
3NNet
USERS MANUAL
KVM CP-102
KVM CP-104
KVM CP-104S / OSD / 19"
KVM CP-104
3NNet 4 port KVM Switch (Plastic)
User's manual
KVM CP-102
2
1
2
2
PS/2 Keyboard mini-Din 6 pin
PS/2 Mouse Mini-Din 6 pin
VGA HDDB 15pin
PS/2 Keyboard mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Hot Key / Button
NO
8sec.
PS2
PS2
2048X1536
400MHz
NO
Plastic
Mini Desktop
KVM CP-104S/OSD/19"
3NNet 4 port KVM Switch (Plastic)
User's manual
KVM CP-104
4
1
4
8
Metal
Desktop
KVM CP-104S
OSD / 19"
4
1
4
4
Plastic
Desktop
Advertisement
Summary of Contents for MEDITRONIK 3NNet KVM CP-102
- Page 1 3NNet USERS MANUAL KVM CP-102 KVM CP-104 KVM CP-104S / OSD / 19” Introduction Thank you for purchasing 3NNet KVM switch. 3NNet KVM switch can save your MONEY, TIME, SPACE, EQUIPMENT and POWER. Controlling multiple PCs from One Keyboard, Mouse and VGA Monitor. 3NNet KVM switch is loaded with features such as hot-key, front panel push button and auto scan control.
- Page 2 Weight (g) 140g 720g 300g Dimension (mm) 110(L) X 74(W) X 29(H) 200(L) X98 (W) X 44(H) 190(L) X 74(W) X 29(H) System Requirements Specifications Functions KVM CP-102 KVM CP-104 KVM 104S/OSD/19” Console side One VGA Monitor One VGA Monitor One PS/2 Keyboard One PS/2 Keyboard One PS/2 Mouse...
- Page 3 Normally, there is one LED is always lit (i.e. the console is connected to this PC port) for one PC port and the other PC port's LED is off, when you power on KVM switch. When you select one of two PCs and it is shut down, the selected port LED flashed. KVM CP-104 KVM CP-104S/OSD/19”...
- Page 4 positive. 2. Don't press any keys on the keyboard while the selected computer is booting up. Otherwise, it might cause the keyboard error or keyboard is not detected at PC side. 3. The computer boot up fine, but keyboard doesn't work Make sure the keyboard works when directly plugged into the computer.
