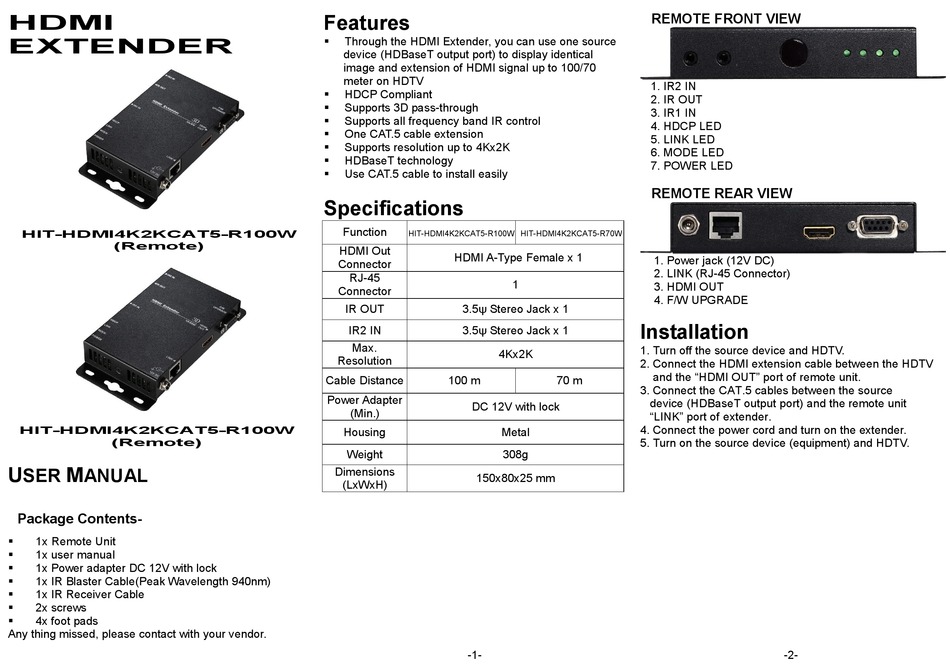

I-Taki HIT-HDMI4K2KCAT5-R100W User Manual

HDMI
EXTENDER
HIT-HDMI4K2KCAT5-R100W
(Remote)
HIT-HDMI4K2KCAT5-R100W
(Remote)
U M
SER ANUAL
Package Contents-

1x Remote Unit

1x user manual
 1x Power adapter DC 12V with lock
 1x IR Blaster Cable(Peak Wavelength 940nm)

1x IR Receiver Cable

2x screws
 4x foot pads
Any thing missed, please contact with your vendor.

Features

 Through the HDMI Extender, you can use one source
device (HDBaseT output port) to display identical
image and extension of HDMI signal up to 100/70
meter on HDTV
 HDCP Compliant

Supports 3D pass-through

Supports all frequency band IR control
 One CAT.5 cable extension
 Supports resolution up to 4Kx2K

HDBaseT technology
 Use CAT.5 cable to install easily

Specifications

Function
HIT-HDMI4K2KCAT5-R100W HIT-HDMI4K2KCAT5-R70W
HDMI Out
HDMI A-Type Female x 1
Connector
RJ-45
Connector
IR OUT 3.5ψ Stereo Jack x 1
IR2 IN 3.5ψ Stereo Jack x 1
Max.
4Kx2K
Resolution
Cable Distance 100 m
Power Adapter
DC 12V with lock
(Min.)
Housing Metal
Weight 308g
Dimensions
150x80x25 mm
(LxWxH)
-1-

REMOTE FRONT VIEW

1. IR2 IN
2. IR OUT
3. IR1 IN
4. HDCP LED
5. LINK LED
6. MODE LED
7. POWER LED

REMOTE REAR VIEW

1. Power jack (12V DC)
2. LINK (RJ-45 Connector)
1
3. HDMI OUT
4. F/W UPGRADE

Installation

1. Turn off the source device and HDTV.
2. Connect the HDMI extension cable between the HDTV
and the "HDMI OUT" port of remote unit.
70 m
3. Connect the CAT.5 cables between the source
device (HDBaseT output port) and the remote unit
"LINK" port of extender.
4. Connect the power cord and turn on the extender.
5. Turn on the source device (equipment) and HDTV.
-2-
