EVAC
Commercial Marine Equipment
V V V V V A A A A A CUUM
CUUM
CUUM
CUUM T T T T T OILET
CUUM
5327002

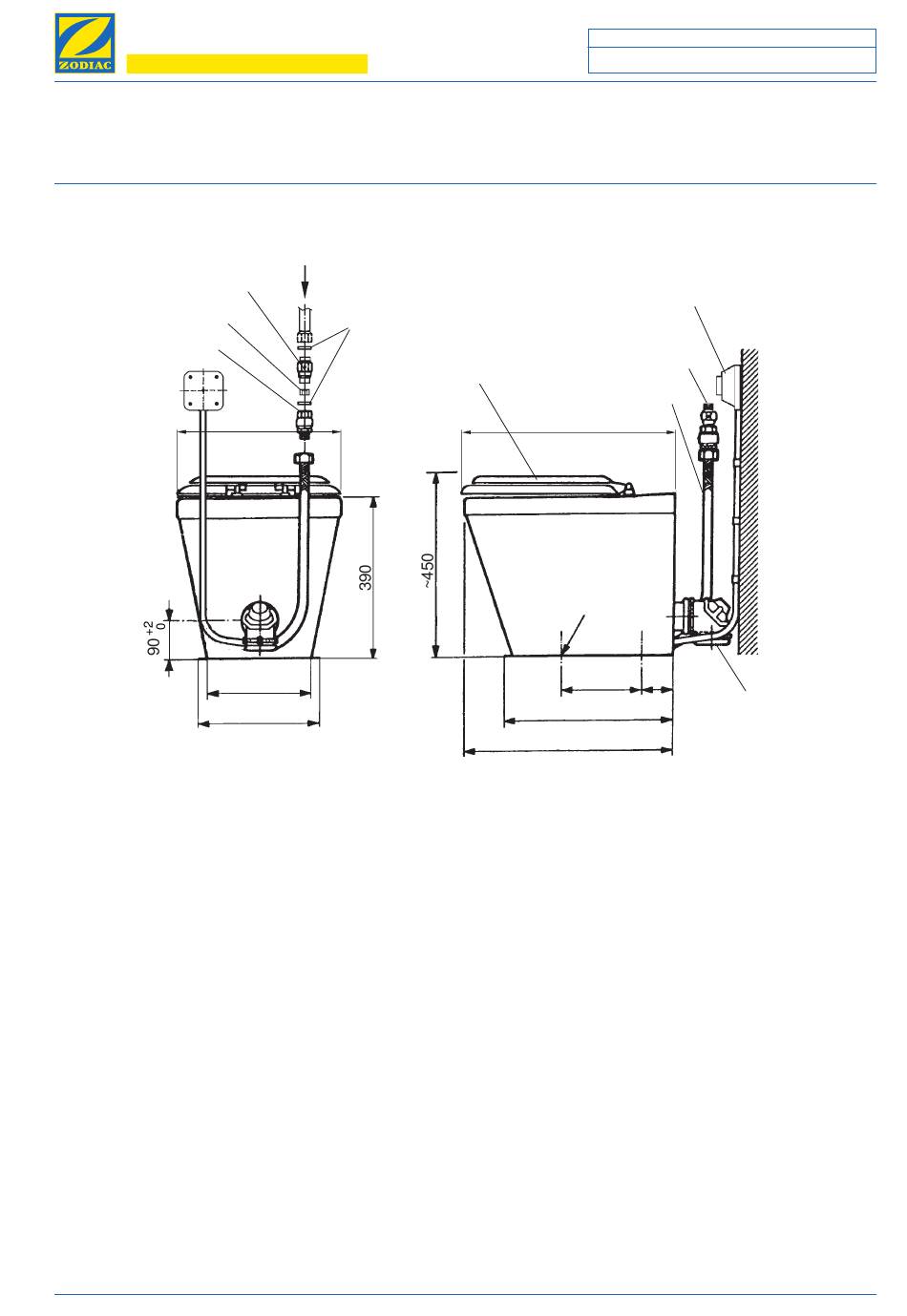

EVAC 90, STAINLESS STEEL, FLOOR MODEL,
Shut-off valve
Strainer
Vacuum breaker
Materials
Bowl: Stainless steel EN 1.4404
Seat: White plastic laminated wood
Cover: White plastic laminated wood
Pneumatic push button: White plastic, ABS
Operating data
Water pressure: 200 ...1000kPa
Operating vacuum: -30 ... -50kPa
Water consumption: 1.2 ±0.15 litres/flush, ( water pressure: 400kPa, vacuum: -40kPa )
Air consumption: 60 ±10 litres/flush (normal atmospheric air)
Connections
Water supply: 1/2" MPT
Discharge: 90
Shipping data
Net weight: 20.2 ±0.5kg
Shipping weight: 22.2 ±0.5kg
Shipping volume: 0.168m³
* Passed by the MIL-SPEC 901D (Navy) Grade B, Class 1, Type A shock test with addition:
For passing the test the push button cover has to be fastened by means of self tapping screws.
Screws do not include in the toilet assembly P/N 5327002. (See installation document 2:01015C)
EVAC reserves the right to make alterations to this specification without prior notice.
© Copyright Evac Oy. All rights reserved.
OILET
OILET
OILET
OILET
Fresh water
connection
Gasket
Seat and cover
390
270
290
o
rubber elbow to pipe size 48...52mm O.D.
Date:
16 Apr 2009
TECHNICAL DATA
*
SHOCK TESTED
Pneumatic push button
Water supply 1/2"
Flexible water hose
530
4 x Ø9
75
200
420
525
Doc.
1:141J
Discharge
connection Ø50,
turnable 360°
1
