- Page 1 MZK-NAS01SG User’s Manual Version. 1.0...
- Page 2 Foreword Explanation of the Signals In order to let you set up and use this product correctly, please pay attention when reading or browsing the manual as you see these signals listed below. Warning/ Danger Users should read the explanation carefully and understand it completely; otherwise users might be in danger or even be injured.
- Page 3 Table of Contents FOREWORD......................................2 CHAPTER 1 INTRODUCTION OF MZK-NAS01SG ........................5 Introduction .............................. 6 Contents of Package ..........................7 CHAPTER 2 FUNCTION INTRODUCTION AND QUICK INSTALL GUIDE................8 1. Product Functions..........................9 2. Installing Hard Disc.......................... 12 3. Installing NAS Setting Tool ......................16 4.
- Page 4 10.4. Firmware Update ......................... 79 10.5. System Reboot ........................81...
- Page 5 Chapter 1 Introduction of MZK-NAS01SG...
- Page 6 Small Office/Home Office (SOHO). MZK-NAS01SG have a built-in Web server, thus you can access its settings through Web browsers, such as IE, Netscape, Firefox, and so on. You can set up and configure the settings easily and completely and enjoy the convenience instantly.
- Page 7 Contents of Package After purchasing MZK-NAS01SG Network Attached Storage (NAS) server form a distributor or an agency, please open the package and check that all the components listed below are included. If there is any item missing or damaged, please contact with the distributor or the agency at once.
- Page 8 Chapter 2 Function Introduction and Quick Install Guide...

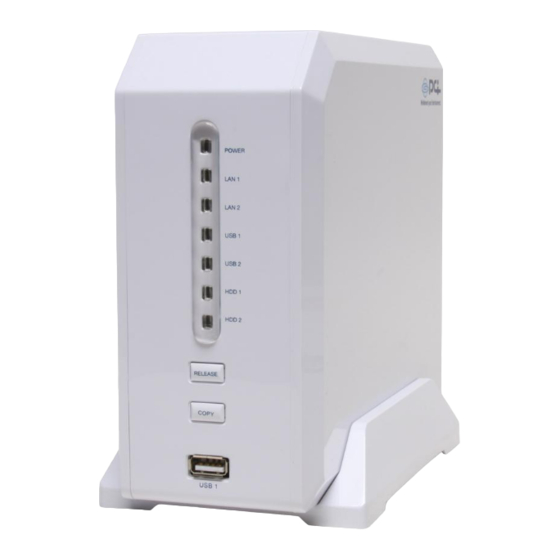

- Page 9 The Release button has three functions: 1. Unplug the external USB mass storage connected to the USB 1 port. 2. Shut down MZK-NAS01SG. 3. Reset the configuration of MZK-NAS01SG to factory default settings (when pressing Copy button at the same time).
- Page 10 Ignore the first short beeping sound. The Power LED will keep flashing, and you will hear a long beeping sound. When the Power LED goes off, MZK-NAS01SG are completely shut down. You can now switch off the power by switching the Power switch on the back panel of MZK-NAS01SG.
- Page 11 USB 2 port allows you to share your files stored in the USB mass storage device plugged USB 2 in. Also, USB 2 ports allows you to format the attached USB storage device Use standard LAN cables (RJ45 connectors) to connect MZK-NAS01SG with your LAN 1/2 hubs/switches, or one LAN port of your router, etc.
- Page 12 2. Installing Hard Disc Please follow this step-by-step guide and install your MZK-NAS01SG. 1. Please push the button of the hard disk drawer in the back panel of MZK-NAS01SG, releasing the drawer lock. 2. Pull out the hard disk drawer gently.
- Page 13 4. Fix your SATA hard disk tightly in the hard disk drawer with the screws provided in the MZK-NAS01SG package. 5. After securing the SATA hard disk tightly to the hard disk drawer, slide the drawer back to MZK-NAS01SG gently as shown in the picture.
- Page 14 8. Plug in the other side of the RJ45 cord to the LAN port of your PC or router. 9. Plug in the power adapter provided in MZK-NAS01SG package into the DC port, and the other side in the power socket as shown in the picture.
- Page 15 10. Turning on MZK-NAS01SG by pressing the Power On/OFF switch in the back panel. Before turning your MZK-NAS01SG on, make sure that your MZK-NAS01SG is connected to the router properly. If you fail to do so, your computer may not be able to connect to MZK-NAS01SG.
- Page 16 3. Installing NAS Setting Tool This tool enables you to detect automatically MZK-NAS01SG connected to Network. If you would like to set the various function of MZK-NAS01SG, please display the WEB setup window with this tool. DHCP function for MZK-NAS01SG is set as valid for the function that acquires the IP address automatically, in the default setting.
- Page 17 Click ”Next”. 4. Click ”Next”. 5. Click ”Next”. (install will start)
- Page 18 Click ”Close”. 7. Click ”Exit”.
- Page 19 4. Start NAS Setting Tool 1. Double click “NAS Setting Tool” on the Desktop. *When security warning window is pop up, click “Unblock”. *When “User Account Control” is displayed in Windows Vista click “Continue”. 2. “NAS setting tool” will be displayed.
- Page 20 4.1. Display WEB Setup Window 1. Click the address displayed in “NAS setting URL”. 2. (1)Enter “admin” in “User name”. (2)Enter “0000” in “Password” (3)Click “OK”...
