Sur la table SLT-4209 Quick Start Manual

Sur la table SLT-4209 Quick Start Manual

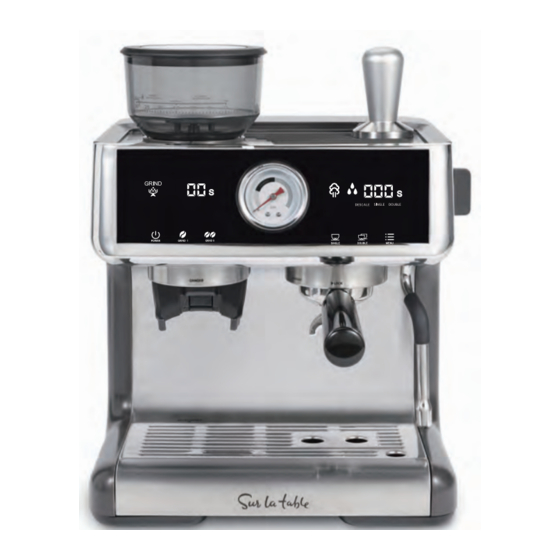

Espresso machine with dual boiler heating system
Hide thumbs Also See for SLT-4209:

Advertisement

Quick Links

OPERATION INSTRUCTIONS
Setting up espresso machine:
1.
Fill the water tank to the max marking.
2.
Add coffee beans to the bean hopper.
TIP: To obtain the best flavor, use filtered water and fresh coffee beans.
3.
Press the power button ( ).
4.
Allow the espresso machine to heat up. Once the machine is ready, the full display
will illuminate.
Grinding Coffee:
1.
Select the filter basket and insert into the portafilter.
2.
Place the portafilter in the grinding cradle.
3.
Adjust the bean hopper to the grind settings desired by turning the bean hopper left or right.
4.
Select single ( ) or double (
) grind.
5.
Once the grinding process has been completed, carefully remove the portafilter.
6.
Use the tamper to evenly press the coffee grinds.
7.
Wipe excess grinds.
Brewing Espresso:
1.
Insert the portafilter into the group head and lock into place.
2.
Place cup beneath the portafilter.
3.
Press the espresso extraction shot of choice: single ( )or double ( ). Coffee will begin
brewing and automatically stop when cycle ends.
4.
Carefully remove the cup.
5.
Remove the portafilter by turning left and lowering it.
6.
Remove the espresso puck from the portafilter.
Frothing Milk:
1.
Fill the milk pitcher with cold milk right below the bottom of the spout.
2.
Point the steam wand over the steam opening on the drip tray.
3.
Turn the dial to steam (
). Some water may come out of the steam wand.
4.
Turn the dial back to standby ( ) and insert the steam wand into the milk pitcher. Make sure
to insert the tip of the steam wand right below the surface of the milk.
5.
Turn the dial back to steam (
).
6.
Froth the milk. Lower the pitcher to keep the tip right below the surface of the milk as the milk
level rises.
7.
When desired texture is reached, turn the dial back to the standby position ( ) and remove
the steam wand from the pitcher.
8.
Point the steam wand to the steam wand opening on the drip tray.
9.
Turn the dial to hot water (
) for 5 seconds.
10.
Return dial to the standby position ( ).
11.
Wipe the steam wand with a damp cloth.
OPERATION INSTRUCTIONS
Customize your Espresso Shot:
1.
Press and hold the single ( ) or double shot ( ) button for the length of time you want
the shot to last using the brew count-up timer to guide you.
NOTE: The menu button ( ) will flash throughout this process.
2.
Once the brew cycle reaches your desired brew length, release the button.
3.
Next time you press that button (single or double shot), the espresso machine will remember
your customized programming!
Customize the Grinding Length:
1.
Press and hold the single ( ) or double (
) grind button for the length of time you want
the grinding cycle to last using the grinding timer to guide you.
NOTE: The menu button ( ) will flash throughout this process.
2.
Once the grinding cycle reaches your desired grinding length, release the button.
3.
Next time you press that button (single or double grind), the espresso machine will
remember your customized programming!
Restore to Factory Settings:
1.
Press and hold the power button ( ), the single grinder shot selection button ( ), single
shot extraction button ( ), and double shot extraction button( ) at the same time.
2.
Once the four buttons begin flashing, release the buttons.
Customize Brewing Temperature:
Adjust the temperature the espresso machine heats up to:
1.
Press the Menu button ( ) for 3 seconds, until the buzzer sounds.
2.
Select the temperature you want your espresso machine to heat up to by pressing the
button that matches the temperature desired:
A. Single shot grind ( ) = 194 F / 90 C
B. Double shot grind (
) = 198 F / 92 C
C. Single shot ( ) = 201 F / 94 C
D. Double shot (
) = 205 F / 96 C
3.
Press the Menu button ( ) to save the new temperature selection.
1 YEAR
LIMITED WARRANTY
Customer Service: (877) 246-0990 – ApplianceSupport@monchateau.us
E S P R E S S O
M A C H I N E
DUAL BOILER
WITH
HEATING SYSTEM
QUI C K START GUIDE
Scan Here to
Learn More!
www.mcappliances.us
MODEL: SLT-4209
