- Page 1 Original Instructions Version 2 600MM FOLD DOWN WORKBENCH 68027...
-
Page 2: Preface
All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product. -
Page 3: Table Of Contents
2. Contents 1. Preface 1.1 Product Reference 1.2 Revisions 1.3 Understanding the Safety Content of This Manual 1.4 Copyright © Notice 2. Contents 3. Warranty 4. Product Introduction 4.1 Scope 4.2 Specification 5. Health and Safety Information 5.1 General Health and Safety Instructions 6. Identifiction and Unpacking 6.1 Product Overview 6.2 What’s in the Box? 6.3 Packaging... -
Page 4: Warranty
This warranty covers parts and labour for the lifetime of the product. However, if the Your Draper Tools guarantee is not effective until you can tools are hired out, the warranty period is 90 days from produce, upon request, a dated receipt or invoice to the date of purchase. -
Page 5: Product Introduction
WARNING! – This product is not a toy and must conditions established for use will be considered misuse. be respected. Draper Tools accepts no responsibility for improper use of this product. Read this manual in full before attempting to assemble, operate or maintain the product, and retain it for later use. -
Page 6: Identifiction And Unpacking

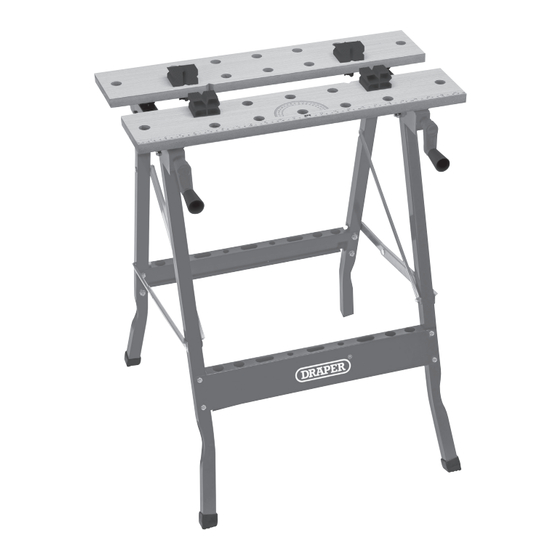

6. Identification and Unpacking 6.1 Product Overview Benchtop Clamp blocks Crank handles Tool holders Front legs Folding braces Rear legs Diagonal braces – 6 –... -
Page 7: What's In The Box
If any part is occurred during shipment. damaged or missing, do not attempt to use the product. Please contact the Draper Tools Helpline; contact details can be found at the back of this manual. (P1) -
Page 8: Assembly Instructions
7. Assembly Instructions Important: Read and understand all the safety 2. Pass two 13mm x 44mm half-thread hex bolts (I) each instructions listed in this manual before attempting through a 15mm washer (L) and top frame bracket to assemble this product. around the leg and secure each in place with another 15mm washer and a 13mm nylon-insert lock nut (N). -
Page 9: Attach The Benchtops
7. Assembly Instructions 7.4 Attach the Benchtops 7.5 Finishing Touches 1. Place the rear benchtop (E) onto the rear U-brackets 1. Tighten all bolts and screw fixings using the so that the eight small holes align with the brackets spanner supplied. and the notch is on the inside edge. Important: The nylon inserts inside the nuts should 2. -
Page 10: Operating Instructions
8. Operating Instructions Important: Before using this product, read and understand 8.2 Clamping a Workpiece all the safety instructions listed in this manual. Workpieces can be clamped directly between the 8.1 Unfolding and Folding the Workbench benchtop pieces or between the clamp blocks. The clamp blocks can be repositioned as required to accommodate workpieces of varying shapes and sizes. -
Page 11: Storage, Spares And Disposal
Draper Tools Product Helpline for details of your nearest authorised agent. Draper Tools will endeavour to hold any spare parts, if applicable, for seven years from the date that it sells the final matching stock item. - Page 12 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 General Fax: +44 (0) 23 8026 0784 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited...
