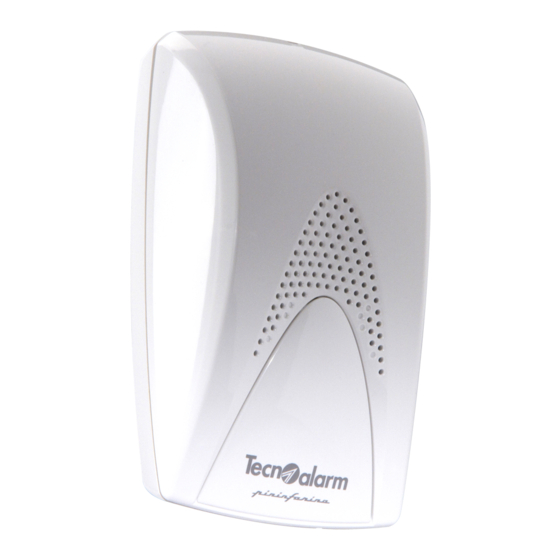

SIREL 2000L
Sirena piezoelettrica da interno
Sirène piézo-électrique intérieure
Piezo-electric indoor sounder
CARATTERISTICHE TECNICHE / CARACTERISTIQUES
TECHNIQUES / TECHNICAL SPECIFICATIONS
Alimentazione /Alimentation/Power supply:
Tensione nominale /Tension nominale/Rated voltage:
Tensione d'alimentazione /Tension d'alimentation/
Operating voltage:
Temperatura di funzionamento /Température de
fonctionnement/Operating temperature:
Assorbimento max. /Consommation max./
Max. consumption:
Potenza acustica /Pression sonore/Sound level
(sull'asse principale/sur l'axe principale/on the main axis):
Frequenza di base /Frèquence fondamentale
Basic frequency:
Peso /Poids/Weight:
Vers. 0.4 - 03/2001
12V
13.8V
10.5V
...14.5V
+5°C...+40°C
160mA
90dB (A) @ 3m
3500Hz
190g
1
SIREL 2000L
Sirena piezoelettrica da interno
Sirène piézo-électrique intérieure
Piezo-electric indoor sounder
CARATTERISTICHE TECNICHE / CARACTERISTIQUES
TECHNIQUES / TECHNICAL SPECIFICATIONS
Alimentazione /Alimentation/Power supply:
Tensione nominale /Tension nominale/Rated voltage:
Tensione d'alimentazione /Tension d'alimentation/
Operating voltage:
Temperatura di funzionamento /Température de
fonctionnement/Operating temperature:
Assorbimento max. /Consommation max./
Max. consumption:
Potenza acustica /Pression sonore/Sound level
(sull'asse principale/sur l'axe principale/on the main axis):
Frequenza di base /Frèquence fondamentale
Basic frequency:
Peso /Poids/Weight:
Vers. 0.4 - 03/2001
12V
13.8V
10.5V
...14.5V
+5°C...+40°C
160mA
90dB (A) @ 3m
3500Hz
190g
1
Advertisement
Related Manuals for Tecnoalarm SIREL 2000L
Summary of Contents for Tecnoalarm SIREL 2000L
- Page 1 SIREL 2000L SIREL 2000L Sirena piezoelettrica da interno Sirena piezoelettrica da interno Sirène piézo-électrique intérieure Sirène piézo-électrique intérieure Piezo-electric indoor sounder Piezo-electric indoor sounder Vers. 0.4 - 03/2001 Vers. 0.4 - 03/2001 CARATTERISTICHE TECNICHE / CARACTERISTIQUES CARATTERISTICHE TECNICHE / CARACTERISTIQUES...
- Page 2 Installazione / Installation / Installation Installazione / Installation / Installation Fig. 2 Fig. 3 Fig. 2 Fig. 3 Montaggio del contatto tamper / Fixation du contact d'auto-surveillance / Montaggio del contatto tamper / Fixation du contact d'auto-surveillance / Fixing of the tamper switch Fixing of the tamper switch Il contatto tamper funziona da tamper antistrappo e da tamper antiapertura.
