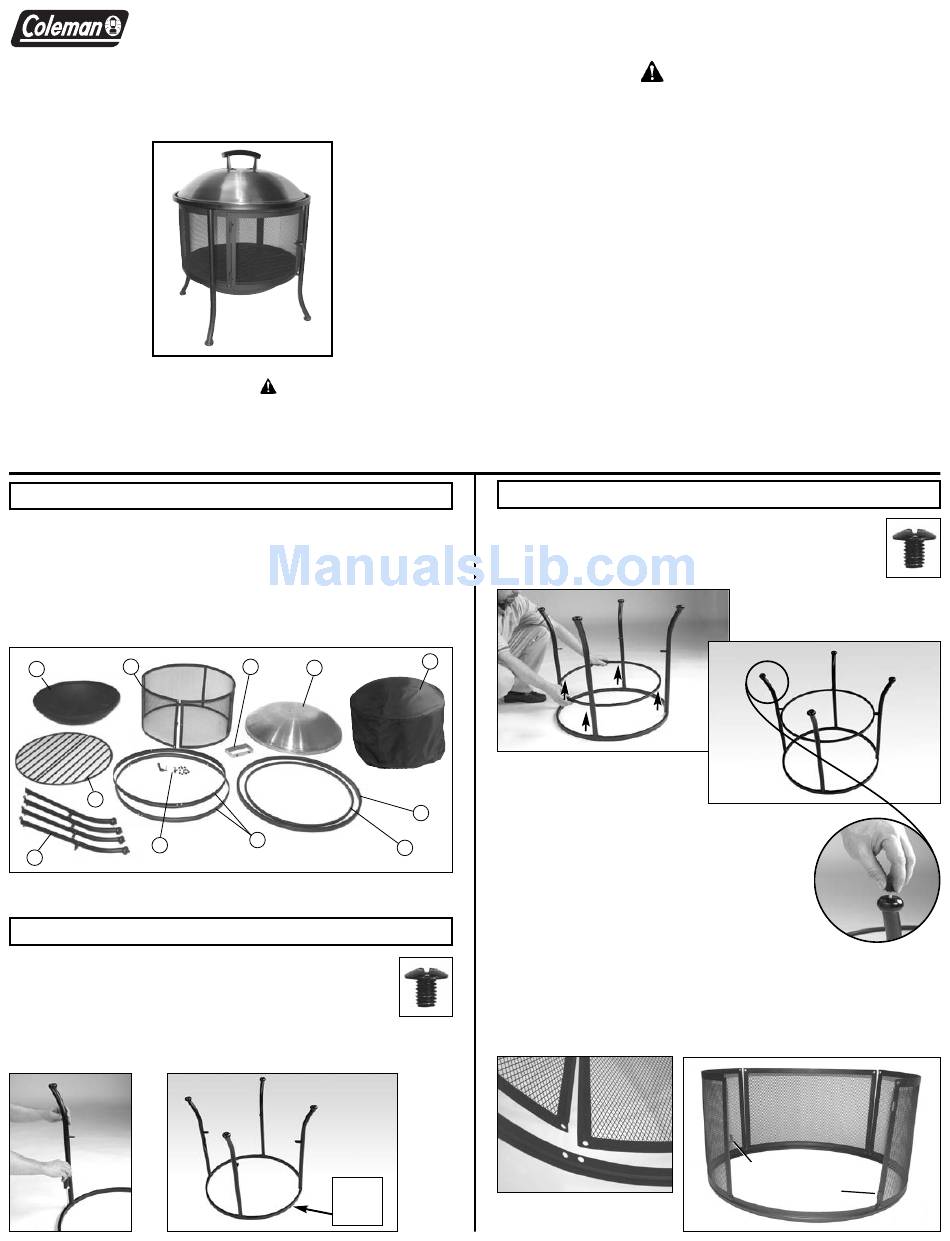

Assembly and Instruction Sheet
Dome Fireplace
Model 5055-710
Follow these instructions for assembly and read carefully, particularly the
safety statements. The safety alert symbol,
symbol used to identify safety information about hazards that can result in
personal injury. When this symbol is used you should pay very close
attention to what is written. Review these instructions before beginning
assembly or using your fireplace.
Fireplace Parts Check List
• Check package for all parts needed for assembly.
■ ■
1. Firebowl
■ ■
2. 4 Pc. Screen Assembly
■ ■
3. Handle
■ ■
4. Dome Lid
■ ■
5. Protective Cover
■ ■
6. Top Ring
2
1
11
9
10
• Check all items for shipping damage. Call Coleman at 1-800-835-3278 or
TDD: 316-832-8707 if you have any problems.
1.
Carefully unpack all parts from shipping box.
NOTE:
In
Steps 2 and 3, the stand is assembled up side down
for ease of assembly. Use a ground cloth to protect the finish.
2.
Align holes in Leg Assembly Brackets with holes in Top
Ring. Attach with two small screws per leg. Hand tighten.
is a universally recognized
■ ■
7. Leg Support Ring
■ ■
8. Screen Support Rings (2)
■ ■
9. Hardware Kit
■ ■
10. Leg Assemblies
■ ■
11. Grates
3
4
8

Assembly

Top
Ring
(Large)
FOLLOW INSTRUCTIONS AND WARNINGS TO AVOID FIRE,
• Outdoor use only. Never use in enclosed area. Use in unventilated areas
will endanger your life.
• Keep away from all combustible materials including gasoline and other
flammable liquids and vapors.
• Use on a level, noncombustible surface only. Keep away from house,
garage, balconies, or eave overhangs.
• Keep out of the reach of children.
• Be sure screen is in place while in use and do not use in windy conditions.
• Do not overfill firebowl or use to burn leaves and trash.
• Exercise the same care you would with an open fire.
• Never leave unit unattended when hot or in use.
• Completely extinguish fire before leaving.
• Use gloves when handling or moving. Ashes can remain warm for a long
time after extinguishing.
• Dispose of cold ashes properly.
• Do not modify in any way nor use with parts not expressly approved by
Coleman.
• Combustion by-products produced when using this product contain
chemicals known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Contact local authorities regarding possible burn restrictions before using product.
3a.
Assemble Leg Support Ring to the four leg assemblies.
Fasten to Leg Brackets with one small screw per leg
(see arrows). Tighten all fasteners.
5
6
3b.
Install four foot pads, one into each leg.
7
NOTE: In some models, the foot pads are
pre-installed by the factory.
4a.
To assemble screen, align holes in the 3 screen panels with the holes
on outside edge of screen support ring. Attach with small screws and hex
nuts but do not tighten at this time.
NOTE: Make sure latch bracket panel and hinge panel are positioned as
shown for proper installation.
SERIOUS INJURY OR DEATH.
WARNING
Assembly
(cont.)
Latch Bracket pointing up
Hinge Panel
