Summary of Contents for Seers Medical Orwell 6183

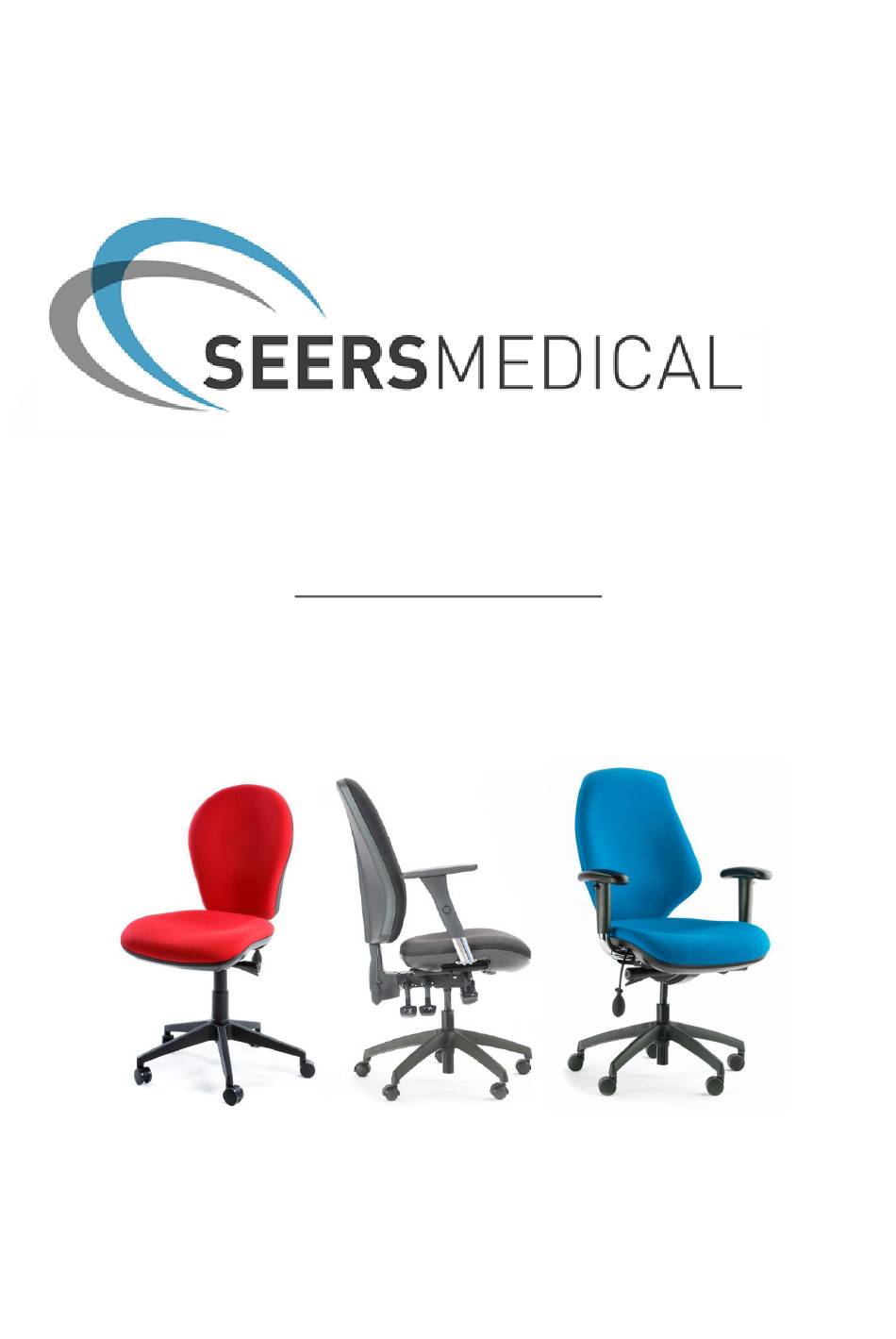

- Page 1 OPERATING INSTRUCTIONS Task Chair User Manual Office Seating Range 03-103-UM-UK ISSUE 1...
- Page 2 This User Manual applies to the following Chairs in the SEERS SEATING Product Range. Orwell Models: 6183, 6184 Ixworth Models: 6191 Needham Models: 6251, 6252, 6253 Havering Models: 6261, 6262 Sorrel Models: 6271, 6272, 6273, 6274 Deben Models: 6180, 6181, 6182, 6280 03-103-UM-UK ISSUE 1...
- Page 3 INDEX 1. GENERAL INFORMATION – WARNINGS & CAUTIONS 2. COMPONENT CHECKLIST AND ASSEMBLY INSTRUCTIONS 3. HOW TO USE – OPERATING INSTRUCTIONS 4. CLEANING INSTRUCTIONS 5. MAINTENANCE 6. WARRANTY Office Seating Range – OPERATING INSTRUCTIONS PAGES ISSUE DATE 25-05-2017 03-103-UM-UK ISSUE 1...
-
Page 4: General Information
GENERAL INFORMATION. CONGRATULATIONS on the purchase of your SEERS MEDICAL Product. If these operating instructions are adhered too, this product will provide many years of safe use. IF THESE OPERATING INSTRUCTIONS ARE NOT FOLLOWED - YOUR WARRANTY COULD BE INVALID! Always keep these Operating Instructions available for reference. - Page 5 2. COMPONENT CHECKLIST AND ASSEMBLY INSTRUCTIONS Component Checklist 5 x CASTORS - PRE FITTED TO 1 x 5 STAR BASE 1 x GAS CYLINDER & SHROUD (If applicable) 1 x FOOT RING/REST (If applicable) 1 x SEAT BASE/PAD WITH MECHANISM PRE ATTACHED 1 x BACKREST WITH BACK BAR PRE ATTACHED Assembly 1) Place the 5 star base with castors pre attached, onto the floor, place the gas cylinder into the base...
- Page 6 3. HOW TO USE – OPERATING INSTRUCTIONS CAUTION! The chair is fitted with free rolling castors as standard. If the flooring is of a different type (ie hard floor) a different castor may be more suitable. Operating Instructions 2 Lever mechanism: Lever 1 operates the backrest angle adjustment, lift the lever to allow movement of backrest and lock the lever to fix the backrest in desired position.
- Page 7 Heavy duty mechanism: Lever 1 operates the backrest angle adjustment, lift the lever to allow movement of backrest and lock the lever to fix the backrest in desired position. Lever 2 is used to adjust the angle of the seat pad, lift the lever to allow adjustments to be made, and press the lever back down to lock angle once comfortable.
-
Page 8: Cleaning Instructions
4. CLEANING INSTRUCTIONS WARNING! DO NOT SATURATE PRODUCT WHEN CLEANING IF PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING THE PRODUCTS LENGTH OF SERVICE. CARE AND CLEANING Vacuum your fabrics regularly to prevent build-up of dust and dirt on the fabric surface. ... -
Page 9: Maintenance
Check hydraulic pump (hydraulic variant only) for smooth operation and any signs of 6. WARRANTY SEERS MEDICAL Limited standard terms and conditions apply to this device. A copy of this is available upon request. This contains full details of warranty terms and does not affect your statutory rights. - Page 10 03-103-UM-UK ISSUE 1...
- Page 11 03-103-UM-UK ISSUE 1...
- Page 12 03-103-UM-UK ISSUE 1...
