• For ease of assembly two people are recommended.
Parts Included:
Box 1:
• (1pc) Left Side Panel – A
• (10pcs) Lucite bars –B
• (1pc) Right Side Panel –C
• (5pcs) Clear Tempered Glass Shelf –D
3 3 3 H U D S O N S T R E E T 7 T H F L O O R N Y , N Y 1 0 0 1 3 • T . 2 1 2 . 6 4 5 . 2 8 0 2 F . 2 1 2 . 6 4 5 . 3 0 7 2 • j o n a t h a n a d l e r . c o m
•
F URNITURE

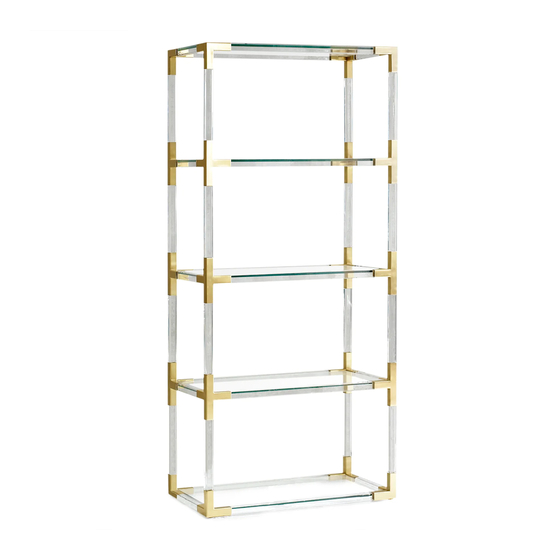

Jacques Étagère
Assembly Instruction
○
1
1/4"-20Tx15mmL
○
2
Allen Wrench
○
3
Rubber Pads
20pcs
1pc
20pcs
Advertisement
Table of Contents
Related Manuals for JONATHAN ADLER Jacques Etagere
Summary of Contents for JONATHAN ADLER Jacques Etagere
- Page 1 F URNITURE Jacques Étagère Assembly Instruction • For ease of assembly two people are recommended. Parts Included: Box 1: Hardware Enclosed: • (1pc) Left Side Panel – A ○ 20pcs 1/4”-20Tx15mmL • (10pcs) Lucite bars –B ○ Allen Wrench ○ 20pcs Rubber Pads •...
- Page 2 Assembly Instructions: 1. Remove all the components from their boxes and place them on a carpeted or scratch-free surface. Place the Left Side Panel (A) at the ground and then insert Lucite Bar (B) into the corresponding hole. 2. Attach Left Side Panel (A) to Lucite Bar (B) and secure with the Screws using the enclosed Allen Key , don’t screw tightly in this step.
- Page 3 4. Flip the shelf unit in 90 degree and attach each Rubber Pads at the corner of the shelf ③ unit and then carefully place the Tempered Glass shelf (D) on top of Rubber Pads ③ 5. Assembly is complete. 3 3 3 H U D S O N S T R E E T 7 T H F L O O R N Y , N Y 1 0 0 1 3 •...
- Page 4 F URNITURE Jacques Étagère Assembly Instruction for Anti-tip Hardware Hardware Enclosed: ① 2pcs “L” steel sheet ② 2pcs 1/4”-20Tx15mmL ③ 2pcs M6 x 40mmL ④ 2pcs Wall nut 1. Move the completed product to the edge of wall, attach “L” steel sheets to the top screw holes of ①...
