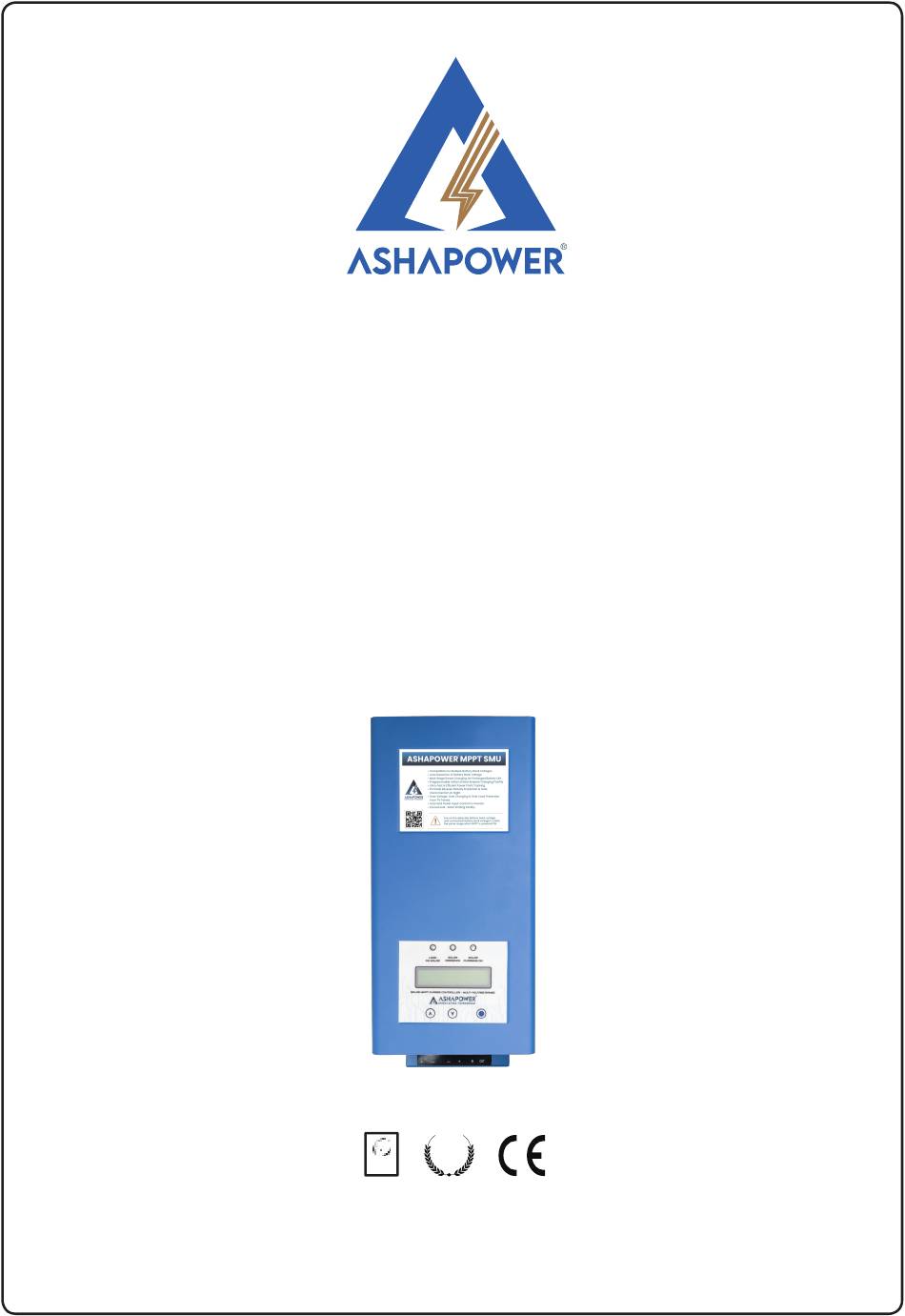

- Page 1 INNOVATING TOMORROW SOLAR MPPT CHARGE CONTROLLER MULTI VOLTAGE RANGE 12V/24V AUTO SURYA-40 HV VERS.7 9001:201 5 CERTIFIED COMPLIANT USER MANUAL...
-
Page 2: Salient Features

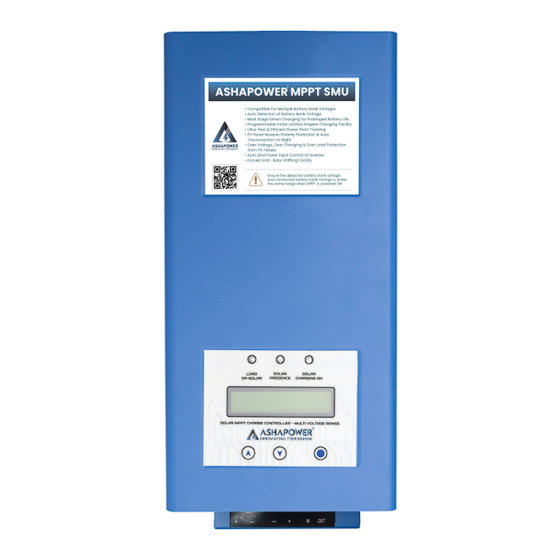

SOLAR MPPT CHARGE CONTROLLER ASHAPOWER® SURYA-40 HV Vers.7 Solar MPPT Charge Controllers are multi voltage range devices with unique features. The same device can be used for battery banks ranging from 1 Battery (12V) up to a battery bank of 2 batteries (24V) in series. - Page 3 LED INDICATORS 2x16 LCD SETTINGS BUTTON [ENTER] KNOW YOUR DEVICE SETTINGS BUTTON [ SURYA-40 HV VERS.7 SETTINGS BUTTON [ TERMINAL COVER IN/OUT POWER TERMINALS INDICATOR BLINKING LOAD IS ON GRID BLUE POWER BATTERY LOW LOAD IS ON WARNING INDICATION (IF ONLY GRID IS CONNECTED...
- Page 4 SURYA-40 HV VERS.7 Connect the cables from PV panels to the solar positive and negative terminals of the charge controller. If the panel voltage and polarity is correct green LED indicator glows on. When the PV Panel voltage detected is higher than the connected battery bank voltage MPPT starts charging.
- Page 5 EXAMPLES FOR GROUPING OF PV PANELS Follow these examples to achieve maximum MPPT performance Max.PV Panel Battery Max.PV Panels Max.PV Panels Applicable in Watts Bank Volt Voltage Applicable in Range (Voc) Watts 1) 36 V VOC (260W PANEL) X 2 PANEL IN SERIES =72VOC = 520W 2) 21V VOC (150W PANEL) X 4 PANEL IN SERIES =84VOC = 600W...
-
Page 6: Connection Diagrams
CONNECTION DIAGRAMS 800W/12V OFF GRID SOLAR POWER PLANT ASHAPOWER CHARGE CONTROLLER LOAD GRID INVERTER 36VOC,260W PV PANELS BAT IN 9 10 11 4 5 6 12V BATTERY BANK Total Voc Total Watts 520W (1 X 12V BATTERY) Max PV Voc Range 30V to 120V... -
Page 7: Troubleshooting
TROUBLE SHOOTING ERROR DESCRIPTION SOLUTION CODE PV PANEL VOLTAGE PV PANEL VOLTAGE IS NOT IN THE SPECIFIED LIMIT. CHECK FOR PV PANEL GROUPING. ERROR REFER PV PANEL GROUPING MANUAL PROVIDED. BATTERY BANK VOLTAGE CONNECTED BATTERY BANK VOLTAGE IS NOT IN THE SPECIFIED LIMIT. CHECK FOR ERROR DEFECTIVE BATTERIES LOOSE CONNECTION OF JUMPER WIRES AND NUMBER OF BATTERIES. - Page 8 SMF, VRLA, AGM, GEL Batteries. SMF (sealed maintenance free), SLA (Sealed lead acid) and VRLA (Valve regulated lead acid) batteries are same. Its 2 types of cells are (AGM (Absorbed glass mat) and GEL cells. They are maintenance free batteries which do not require regular water filling, its composition of electrodes and electrolyte is same as flooded lead acid batteries.
- Page 9 Changing the default settings of MPPT charge controller Before changing the default settings values of the device, ensure the maximum ampere and voltage Note: ratings applicable for your battery type and brand (SMF, LEAD-ACID, GEL) This device is not designed for direct charging of lithium Phosphate battery .
-
Page 12: Important Safety Precautions
12) This equipment is neither designed nor guaranteed to installations used for vital medical care nor any other critical installation entailing potential risks of damage to people or to the environment 16/404-H Ashapower Tower, Kondotty-Areekode Main Road, Kizhisseri, Kuzhimanna PO, Malappuram DIST,Kerala-673641, INDIA.
