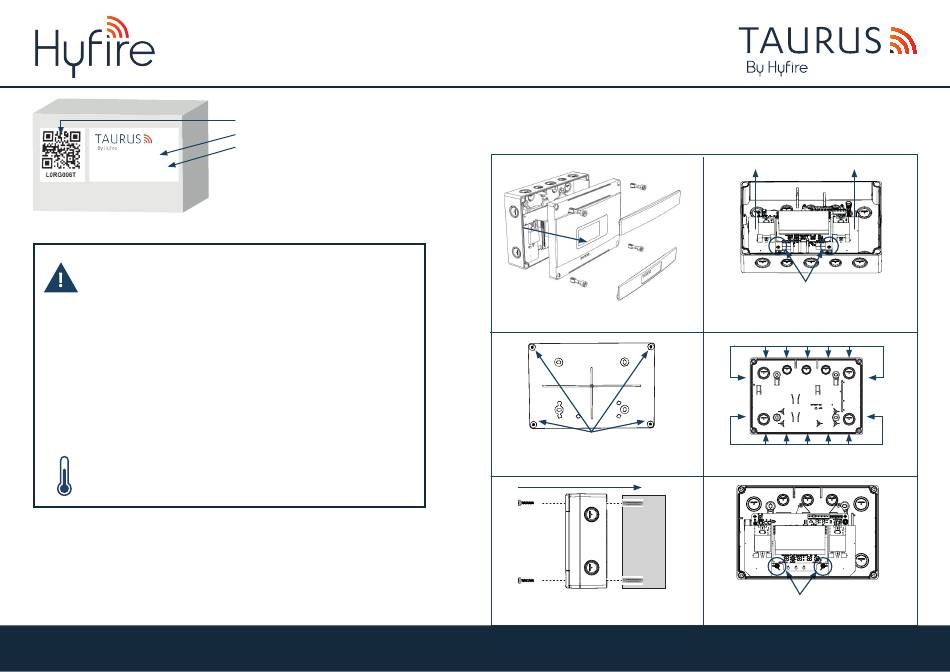

hyfire Taurus TAU-CEMD-01 Quick Start Manual

TAU-CEMD-01
Hyfire Taurus Conventional
Expander Module with Display

IMPORTANT TO CONSIDER

When mounting a wireless device a comprehensive radio survey
should have been carried out to establish the location that provides
the best coverage and optimum reach. Taking into consideration the building
structure and materials, the survey identifies the wireless infrastructure
required and product locations for optimum performance, identifying
any factor that could prevent radio integrity.
Avoid fixing or mounting the unit close to the following:
• Equipment that utilises large electrical currents
• Large metal objects or structures
• Fluorescent lighting fittings
• Metal ceiling structures
• IT cabling.
Keep 2 meters minimum spacing between other wireless equipment
in the area to avoid signal interference.
EN54 approved environmental temperature range is -10°C to +55°C

UNBOXING

• The Expander has removable top and bottom front plastics to cover screw housings.
• The Expander is housed in an IP65 rated box with knockouts for IP rated glands.
• 4 plastic screws are provided to secure the lid.
For more information, please refer to the complete product manual.
Unit B12a, Holly Farm Business Park, Honiley, Warwickshire, CV8 1NP
T: +44 (0)1926 485282, E: info@hyfirewireless.co.uk, W: www.hyfirewireless.com
HYFIRE TAURUS CONVENTIONAL EXPANDER MODULE WITH DISPLAY
QUICK START GUIDE

THE BOX

INSIDE THE BOX

QR code • 1 x Expander Module
Part number • 4 x Screws
Product name • 1 x Product Manual
• 1 x Quick start guide
• 1 x QR code
TAU-CEMD-01

MOUNTING STEPS

The Expander Module is IP65 rated, suitable for external mounting. The back box must be installed on the wall as flat as possible
to retain IP rating, to prevent distortion of the housing and the ingress of contamination and/or moisture.
Proceed as follows to complete the device installation.
Remove top and bottom front plastics that cover screws,
unscrew all four screws and remove the lid from the back box.
.
MOUTING HOLES
Using a suitable-sized drill bit (4mm) drill the pre-defined
screw mounting points in the 4 corners of the backbox.
Screw the back box to the wall using all fixing holes
and appropriate-sized roundhead screws (do not use
countersunk screws).
1
SCREWS
Remove the electronic PCB assembly from the enclosure.
The PCB is held by two Philips screws below the display,
it then slides up and out.
3
YES
NO
Prepare apertures (20mm knockouts) required for cable
access and fit appropriate rated glands.
5
SCREWS HOLES
Insert cable, tighten glands and refit PCB and securing screws.
L50-MECD-1400 (Rev_P.1)
2
4
