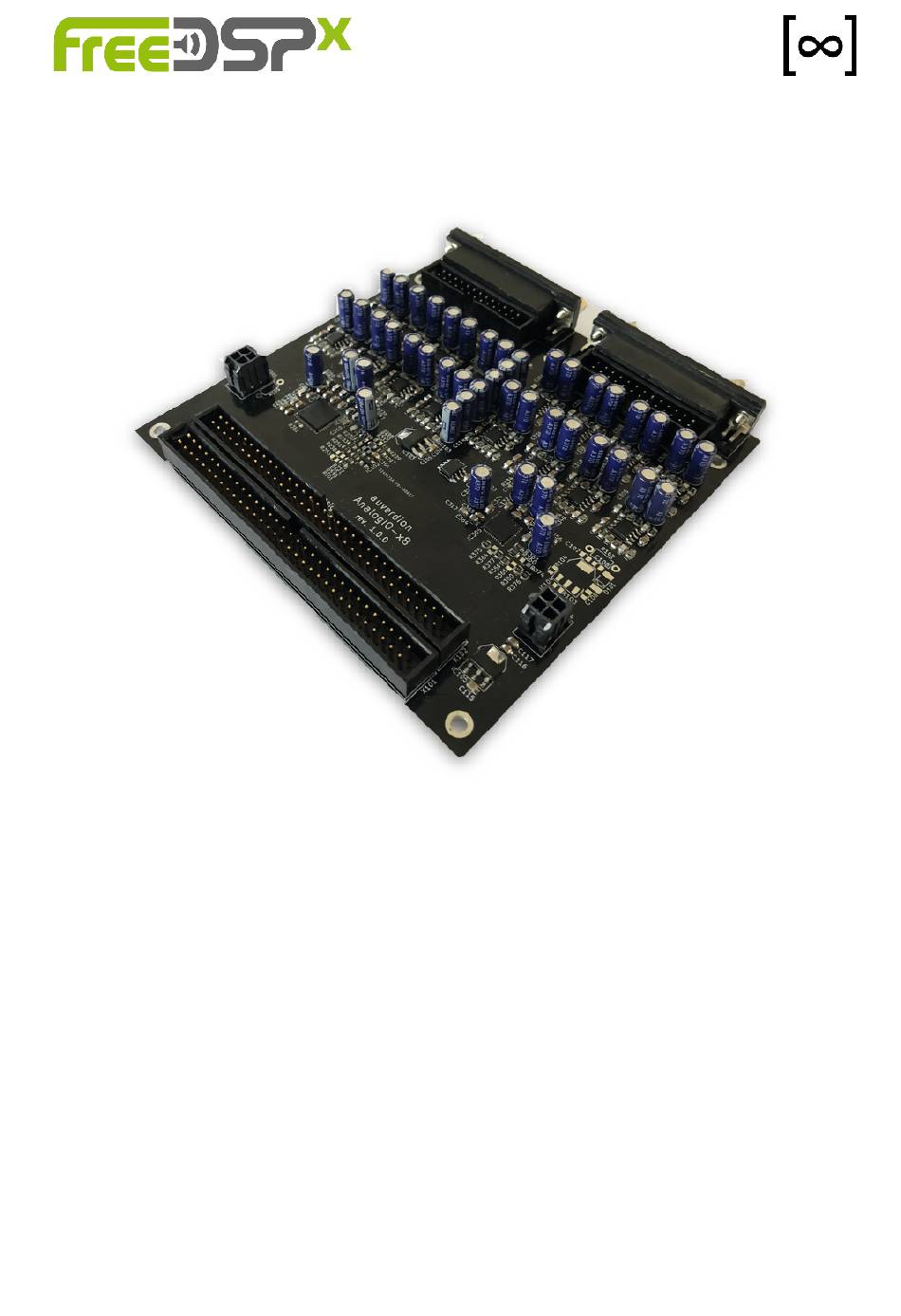

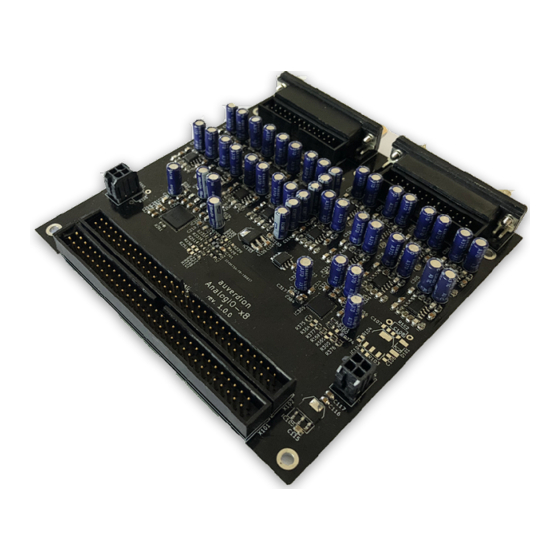

Page 1 GETTING STARTED WITH ANALOGIO-X8  auverdion...
Page 2: Revision History
REVISION HISTORY Revision Description Date v1.0 Initial Version 5 Oct 2018 auverdion...
Page 3: Table Of Contents
Revision History About AnalogIO-x8 Important Information Overview How To Get AnalogIO-x8 Up And Running Get Everything Needed Solder The Board Conﬁguration Connections Appendix Part List Assembly Print Schematic auverdion...
Page 4: About Analogio-X8
This means that experienced users can make their own version of the board, extending it and improving it, as long as they credit freeDSP and auverdion and release their designs under the same license.
Page 5: Important Information
AnalogIO-x8 or Inﬁnitas or freeDSP. Please create individual threads for your topics only if you cannot ﬁnd your issue in the existing threads. Some questions can be answered by carefully reading this manual. We cannot provide individual support via email. Thank you for your understanding!  auverdion...
Page 6: Overview
OVERVIEW 8 channel analog 8 channel analog   output Sub-D25 input Sub-D25 8 channel 8 channel analog analog input pin output pin header header Single supply option Analog power Analog power supply supply Forwarding expansion port Expansion port input auverdion...
Page 7: How To Get Analogio-X8 Up And Running
You should start with soldering the most difﬁcult part: The ICs. On youtube you can ﬁnd tutorials how to solder the QFNs packages, e.g. https://www.youtube.com/watch?v=BvhE16vBfX4 Then continue with all the other SMDs and ﬁnally solder the THT components. Always start with the components with lowest height. auverdion...
Page 8: Configuration
In case you don’t want to use the Sub-D25 connectors you can connect your own connector board (e.g. with jacks, XLR…) on X201 and X302. To simplify the distribution of +/-12V… +/-15V you can use X103 and X104 for daisy- chaining.  auverdion...
Page 9: Appendix
C318 C319 C325 C328 C329 C333 C334 C335 C344 C345 C349 C350 C351 C357 C360 C361 C201 C202 C211 C212 C219 C220 C231 C232 C241 16 1n00 5% 50V PPS C0805-X7R PCF1328CT-ND C242 C253 C254 C265 C266 C275 C276 auverdion...
Page 10 C317 1u00 10% 16V X7R C0805-X7R 311-1365-1-ND MELF_Standa D101 SOIC-8_3.9x Spannungsref IC101 TLE2426ID 4.9mm_Pitch 296-1345-1-ND erenz 1.27mm Spannungsmon ADM811TARTZ- IC102 ADM811TARTZ SOT-143 itor REELCT-ND LM1117MP-5.0/ IC103 LM1117MP-5.0 SOT-223 NOPBCT-ND LM1117MPX-ADJ/ IC104 LM1117MPX-ADJ SOT-223 NOPBCT-ND NCP1117LPST33T IC105 NCP1117LPST33 SOT-223 3GOSCT-ND auverdion...
Page 11 R242 R244 R257 1% 0.25W RNCP0805FTD100 16 100R C0805-RES R259 R269 R271 Thin RCT-ND R279 R281 R289 R291 R204 R206 R214 R216 R224 R226 R243 R245 R258 0.5% 0.1W 16 976R C0805-RES 408-1761-1-ND R260 R270 R272 Thin R280 R282 R290 R292 auverdion...
Page 12 R294 R229 R231 R233 R251 R252 R253 R297 R299 R300 1% 0.125W 17 0R00 C0805-RES 311-0.0ARCT-ND R359 R360 R361 Thick R364 R365 R375 R376 R377 R236 R250 R254 1% 0.125W 311-20.0CRCT- R266 R323 R334 20R0 C0805-RES Thick R349 R356 auverdion...
Page 13 16 4K70 C0805-RES YAG3364CT-ND R342 R343 R344 Thin R362 R363 R366 R367 Pfostensteck X101 X102 IDC64 IDC64 ED10532-ND Microfit3_4 X103 X104 MicroFit3 02x02 Stiftleiste WM10670-ND 3045-0428 IDC_Header_ Pfostensteck X201 X302 IDC26 Straight_26 377-2269-ND pins X202 X301 DSUB25F gewinkelt DSUB25FC AE10935-ND auverdion...
Page 14: Assembly Print
ASSEMBLY PRINT  auverdion...
Page 15 auverdion...
Page 16 auverdion...
Page 17 auverdion...
Page 18: Schematic
SCHEMATIC auverdion...
