NETGEAR ProSafe JGS516 Installation Manual

Installation Guide
Gigabit Ethernet Switch Series JGS500

Start Here

The NETGEAR JGS516 16-port Gigabit Ethernet Switch and JGS524 24-port Gigabit
Ethernet Switch provide you with a low-cost, high performance network solution, designed
to support power workgroups operating at speeds from 10 megabits per second (Mbps) to
1000 Mbps.
Gigabit Ethernet switches provide 10 times the bandwidth that Fast Ethernet switches do,
boosting the speed at which files, voice, video, imaging, or other applications move across
your network.
Each of the JGS500 series switches offer both non-blocking performance to maximize your
network throughput and plug-and-play simplicity to use it. Every port negotiates to the
highest supported speed, enabling you to mix legacy Ethernet gear with newer products on
one network. This simplifies your upgrade to a complete gigabit network and keeps the
project within your budget.
10/100/1000 Mbps ports
1 2 3 4
Green=1000M, Yellow=100M
Speed
1 2 3 4 5 6 7 8
16 PORT
Gigabit Ethernet Switch Link/Act
10/100/1000Mbps
Speed
PWR 9 10 11 12 13 14 15 16
Link/Act
9 10 11 12
JGS516 16-port 10/100/1000 Mbps Gigabit Ethernet Switch
10/100/1000 Mbps ports
24 PORT
Gigabit Ethernet Switch 1 2 3 4 5 6
10/100/1000Mbps
Green=1000M, Yellow=100M
Speed
1 2 3 4 5 6 7 8 9 10 11 12
Link/Act
Speed
PWR 13 14 15 16 17 18 19 20 21 22 23 24
Link/Act
13 14 15 16 17 18

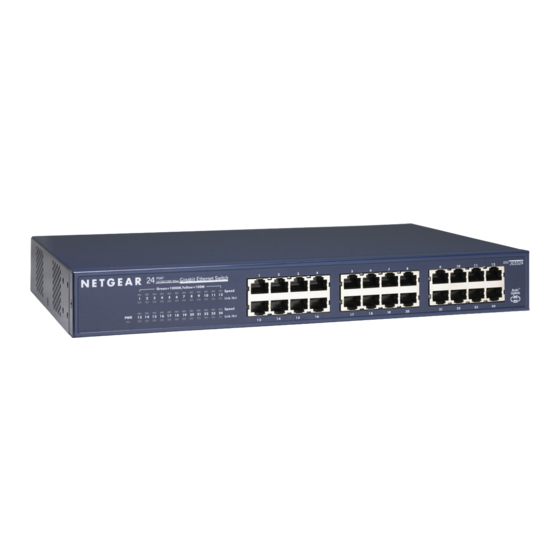

JGS524 24-port 10/100/1000 Mbps Gigabit Ethernet Switch
LEDs
Label
PWR (Power)
Speed
Link/Activity

Network Port

All ports on the switch are 10/100/1000 Mbps capable ports that auto negotiate for speed,
and duplex. Additionally, all ports have Auto Uplink
5 6 7 8 MODEL JGS516
Auto Uplink
Auto The Auto Uplink technology that Netgear has included in this product will automatically
Uplink
13 14 15 16
sense whether the straight-through cable plugged into any port should have a "normal"
connection, e.g., connecting to a PC; or an "uplink" connection, e.g. connecting to a
router, switch, or hub. That port will then configure itself to the correct configuration.
This feature also eliminates the need to worry about crossover cables, as Auto Uplink will
accommodate either type of cable to make the right connection.
Note: Auto Uplink will compensate for setting uplink connections, and crossover or
7 8 9 10 11 12 JGS524
MODEL straight-through cables. Using Auto Uplink to create multiple paths between any two
network devices will disable your network.
Auto
Uplink
19 20 21 22 23 24
Color Activity Description
Green On Power is supplied to the Switch
Off Power is disconnected
Green On The port is operating in 1000 Mbps mode
Yellow On The port is operating in 100 Mbps mode
Off Off The port is operating in 10 Mbps mode
Green Solid Valid link on the port
Blinking Packet transmission or receiving on the port
™ to make the right connection.
™
Applications
Desktop Switching
Model JGS516/JGS524 Gigabit Ethernet Switch is used as a desktop switch to build a
small network that enables users to have 1000 Mbps access to file servers. Due to the the
full-duplex nature of Gigabit Ethernet, each connection will actually move 2000 Mbps of
data (1000 Mbps in each direction).
PC Server PC
1 2 3 4 5
Green=1000M, Yellow=100M
Speed
1 2 3 4 5 6 7 8
16 PORT Gigabit Ethernet Switch Link/Act
10/100/1000Mbps
Speed
PWR 9 10 11 12 13 14 15 16
Link/Act 9 10 11 12 13
JGS516 16-port 10/100/1000 Mbps Gigabit Ethernet Switch
PC
6 7 8 MODEL JGS516
Auto
Uplink
14 15 16
