semble SP2D Quick Start Manual

1

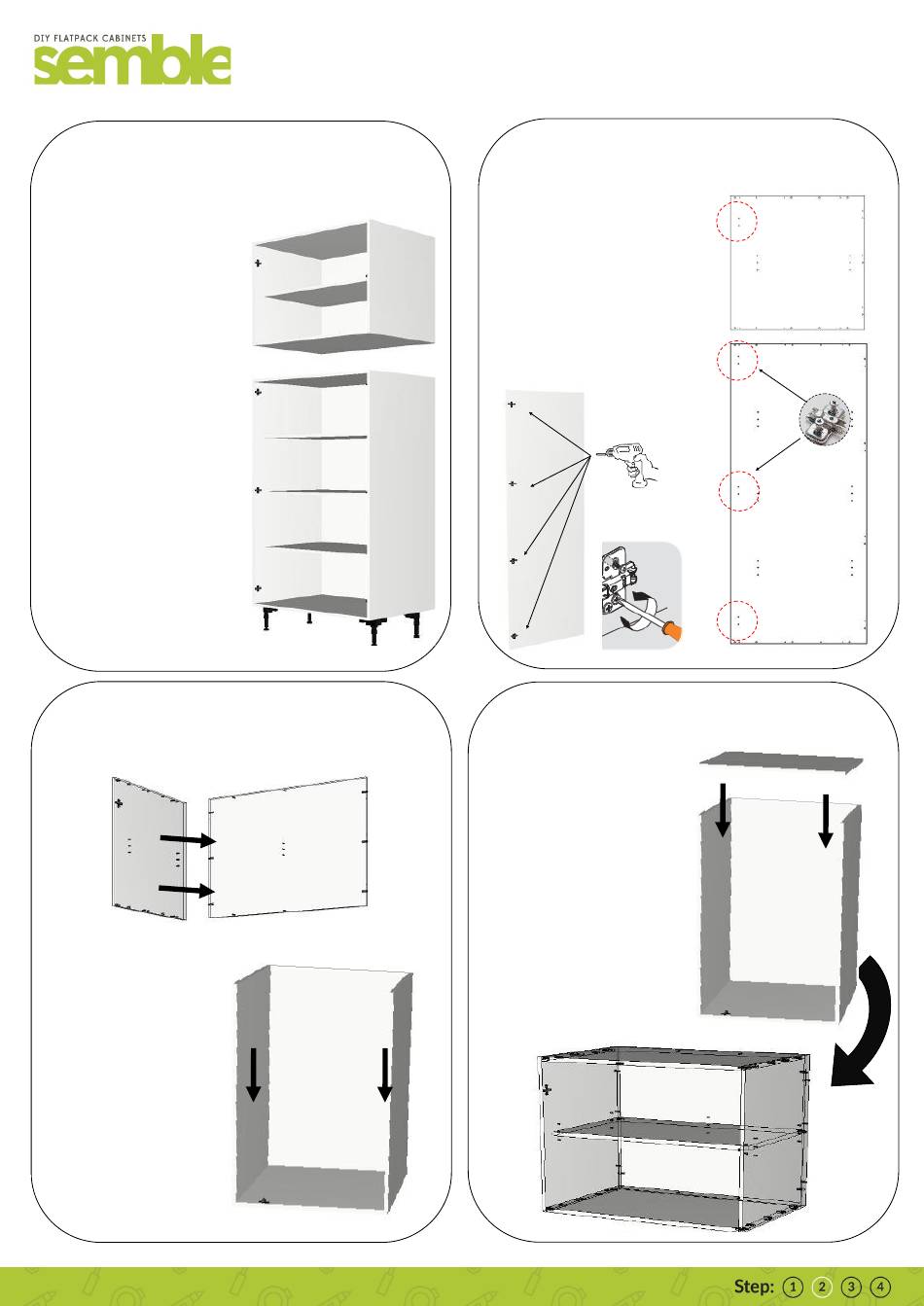

Split construction:
net is constructed in two parts. Assemble both and simply
screw the two cabinets together to create a single unit.
You will note the doors are hinged
with four hinges across the two car-
casses which will ensure a strong
and sag-free door...
Identify Box 1 and assemble this
carcass (you can leave out the ad-
justable shelf for now).
Identify Box 2 and assemble this
carcass. Again, leave the adjustable
shelves to one side.
Please take care with the plastic
feet when handling this unit. While
they are designed to withstand the
weight of the unit, they do not take
kindly to bending as you rotate or
move the cabinet.
3
Assemble Box 1:
with a gable - secure with screws in the outside holes.
Place on end:
Insert dowels
into the top & bottom ... and
insert these into the gable.
The top & bottom of your car-
cass are dowelled into the
back & the gable so ensure
these are correctly located.
due to its size and weight, this cabi-
BOX 1
BOX 2
insert dowels into the back and join
Tall Pantry Cabinet—2 Door (900mm)
2
Orient the Gables:
on the inside face —find the four pairs of holes for the
hinge plate screws (see circles below) ...
Place the gables face down and open
your hardware pack . Find the four
hinge plates for each side.
The hinge plates are designed for DIY
assembly and can simply be "pushed in"
and finished off by screwing in tight...
Identify the arrow on each plate and
ensure these face the front edge.
4
Almost there:
place the last gable on to the carcass
ensuring the dowels are aligned.
Secure with screws in the remaining
holes.
Place to the side:
check you don't
have any holes leftover except the
adjustable shelf holes (sets of three).
Now place this cabinet to one side
and continue with Box 2.
SP2D:
look for the 4 gables with the holes
