Data

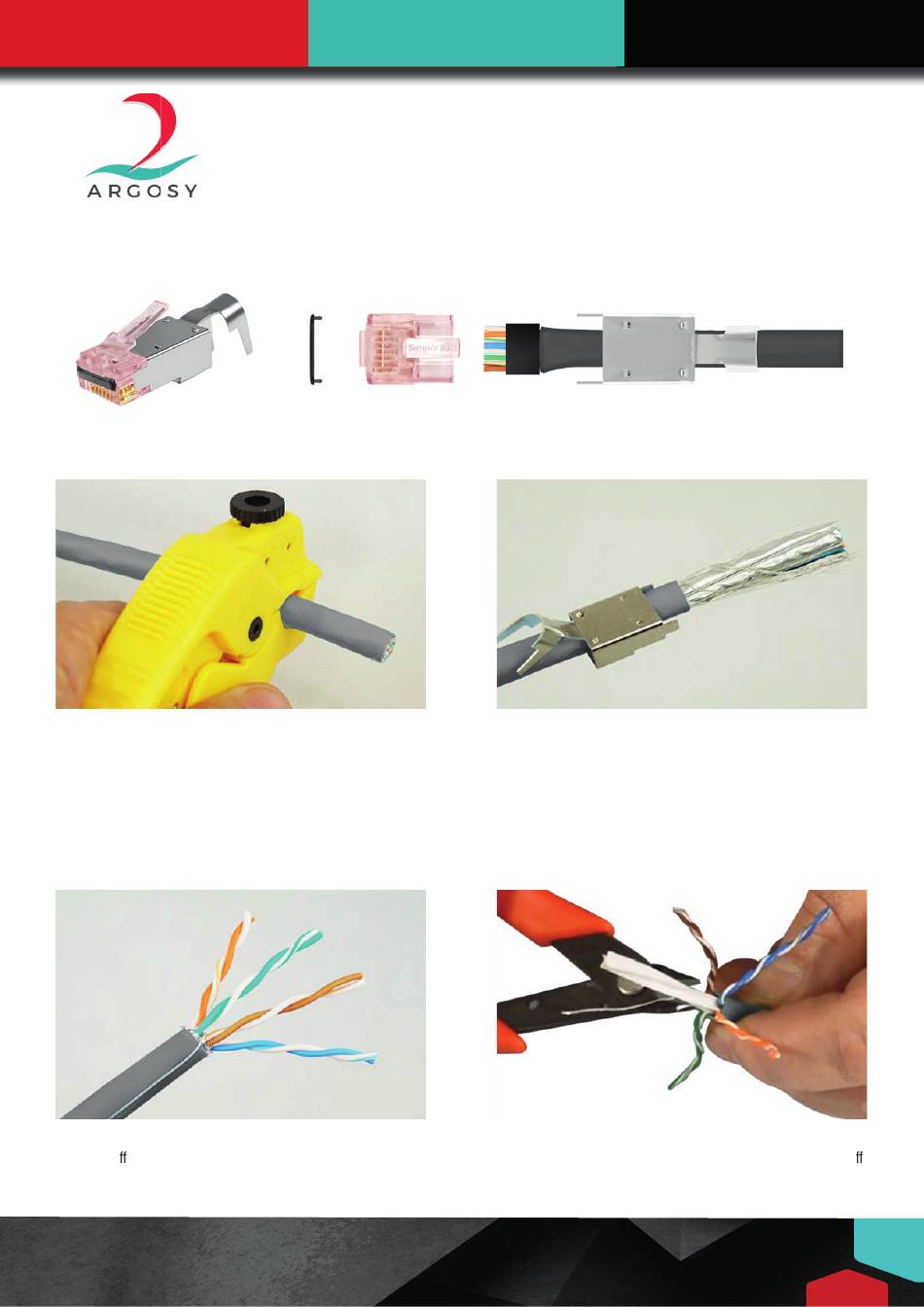

STEP 1

Using the Simply45 Adjustable LAN Cable Stripper (Part No: MC-99-

9950) or wire stripper on the Simply45

Tool (Part No: MA-99-9951), score the cable jacket about 1.25"

(3cm) from the cable end Be sure not to cut too deep where the wire

conductors could be nicked. Remove the stripped cable jacket.

Trim all cable shielding (AL foil, metal braid) back to the cable jacket. We recommend using the Simply45

Do not cut o the drain wire. Fold the drain wire straight back about 1inch (2.5cm) over the cable jacket. If there is a center spline/pair separator cut it o

as close to the jacket as possible without nicking the wire conductors.

+44 1844 202101

All products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Connectors

Termination Instructions

(PATENT: 10,811,831 B1)

Heavy Duty RJ45 Crimp

STEP 3

sales@argosycable.com

Simply45

STEP 2

Slide the S45-1750P metal shell onto the cable jacket with the front

of the shell facing the termination end. Slide it back out of the way for

the moment.

5" Angled Flush Cutter (Part No: ME-99-008).

argosycable.com

– CAT6A STP

PN: FA-02-1750

Table of Contents

Need help?

Do you have a question about the Simply45 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argosy Simply45

Page 1 (3cm) from the cable end Be sure not to cut too deep where the wire conductors could be nicked. Remove the stripped cable jacket. STEP 3 Trim all cable shielding (AL foil, metal braid) back to the cable jacket. We recommend using the Simply45 5” Angled Flush Cutter (Part No: ME-99-008). ®...
Page 2 Termination Instructions PN: FA-02-1750 STEP 4 Untwist and straighten the wire conductors. We recommend using the Simply45 Adjustable LAN Cable Stripper (Part No: MC-99-9950) that has a wire ® straightener comb on the top. Next, align the wires in the correct alignment pattern (Type A or B). The B pattern is the most used today.
Page 3 (see above). Make sure the drain wire remains straight down the cable jacket. STEP 8 STEP 9 Insert the loaded plug into the Simply45 Heavy Duty RJ45 Crimp Compress the crimper handles all the way down with one swift and ®...
Page 4 STEP 12 Push the external ground arm down over the drain wire and against Using the external ground arm crimp feature on the Simply45 the cable jacket. The drain wire should meet the rear end of the Shielded External Ground Crimper (Part No: MA-99-9951), crimp the external ground arm.
