CARACTÉRISTIQUES ET AVANTAGES
CONSTRUCTION
Unit is made of 18 gauge Type 304 stainless steel with a satin finish that
resists stains and corrosion, and has soft, rounded corners. Unit features
stainless steel satin finish back panel, vandal-resistant bottom plate,
and 1-1/4» integral trap.
QUALITY CONTROL
Pre-built fountain is pressure tested to ensure no leaks and proper
functionality.
BUBBLER HEAD
Polished chrome-plated brass bubbler head with integral basin shank
for added strength. Shielded, angled stream opening provides a steady,
sanitary source of drinking water at .45 gpm.
PUSH BUTTON VALVE
The push-button activated valve has an all stainless steel body, with
chrome plated brass push button assembly which allows for front access
to water stream adjustment, water control cartridge, and water supply
strainer replacement without having to go through the bottom
plate. Operating pressure range of 30 to 90 psi (2.1 to 6.2 bar).
INTEGRATED TRAP
All cast brass 1-1/4» NPT adjustable trap completely concealed inside
bottom plate for easy installation and access.
Back Panel: Model BP3, satin finish stainless steel back panel.
Bottle Filling Station: Model 1900, bottle filler can be a stand-alone sta-
tion, or mounted above most Haws drinking fountains along with most
competitors' fountains and water coolers.
Water Filter: Model 6426, 12» x 2» (30.5 x 5.1 cm), in-line lead removal
element that reduces lead from incoming water supply.
Mounting Plate: Model 6700 universal mounting plate for most wall
mounted fountains. Priced Separately.
OPTIONS
DISCLAIMER: Continued product improvements make specifications subject to change without notice.
Retrouvez les produits Haws et Comimex sur www.anox.fr
Modèle

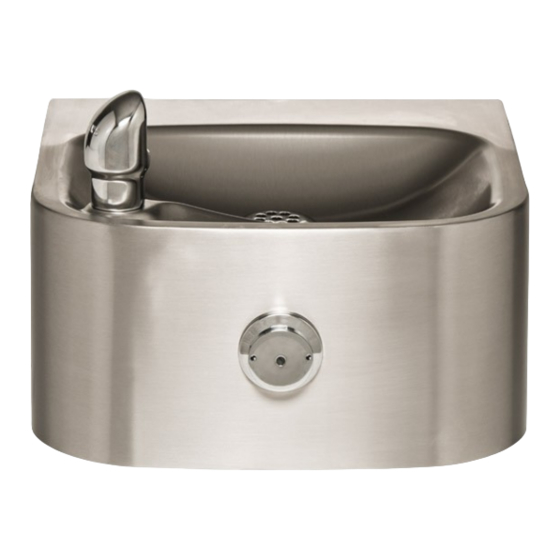

Model 1105 wall mounted drinking fountain shall include an 18 gauge
Type 304 Stainless Steel satin finish basin, push-button operated
stainless steel valve with front accessible cartridge and flow adjustment,
100% lead-free waterways, polished chrome-plated brass
vandal-resistant bubbler head, polished chrome-plated brass
vandal-resistant waste strainer, vandal-resistant bottom plate, and
1-1/4» IPS trap.
EU-1105
Fontaine murale
SPÉCIFICATIONS
APPLICATIONS
ANOX
®
Diffusion
Paris - France
20 February, 2019
