Summary of Contents for immerSUN M3P Series
- Page 1 M3P Series AC EV Charging Station UM2203.HP203.A5A0...
- Page 3 M3P Series AC EV Charging Station User Manual About this User Manual Read carefully before installation, maintenance and operation! ▷ Failure to read this manual carefully may lead to improper operation. ▷ Failure to follow the safety notes may lead to a danger of death, injury and damage to the device, supplier cannot accept any liability for claims resulting from this.
-
Page 4: Table Of Contents
M3P Series AC EV Charging Station User Manual CONTENTS 1. ABBREVIATIONS ..........................4 2. SAFETY NOTES ............................. 5 2.1. Safety signs used.................................. 5 2.2. Environment ..................................6 2.3. Installation ....................................7 2.4. Operation ....................................7 2.5. Maintenance ..................................8 3. STANDARDS COMPLIANCE......................9 3.1. - Page 5 M3P Series AC EV Charging Station User Manual 6.6. Abnormally stop charging ............................. 26 7. FAULT HANDLING AND MAINTENANCE .................. 26 7.1. Fault Handling ..................................26 7.2. Maintenance ..................................28 WARRANTY AGREEMENT ........................29 - 3 -...
-
Page 6: Abbreviations
M3P Series AC EV Charging Station User Manual 1. ABBREVIATIONS Abbreviations Description International Electrotechnical Commission Electrical Vehicle, this can be BEV (battery EV) or PHEV (plug-in hybrid EV) EVSE Electric Vehicle Supply Equipment [IEC61851-1] On-board charger (of an EV) Liquid Crystal Display... -
Page 7: Safety Notes
M3P Series AC EV Charging Station User Manual 2. SAFETY NOTES 2.1. Safety signs used The following warning signs, mandatory signs and information signs are used in this manual, on and in the AC EV Charging station. CAUTION: Warning of electrical hazards. -
Page 8: Environment
M3P Series AC EV Charging Station User Manual Indicates important texts, notes or tips. Indicates recycling information. Indicates assemblies or parts that must be disposed of properly. Do not dispose of them in the household waste. 2.2. Environment ▷ EV Charging station should be installed on the incombustible such as concrete;... -
Page 9: Installation
M3P Series AC EV Charging Station User Manual 2.3. Installation Safety protection must be done when installing the EV Charging station. ▷ Installation and wiring should be done by personnel with professional qualification, otherwise, hazardous electric shock may result. ▷... -
Page 10: Maintenance
M3P Series AC EV Charging Station User Manual exposed. If you find any, please contact the supplier in time. ▷ EV can only be charged with the engine off and stationary. ▷ Do not charge in rainy and thunderous weather. -
Page 11: Standards Compliance
Charging mode: method for connection of an EV to the supply network to supply energy to the vehicle The Charging mode of M3P series product is Mode 3 ◼ is a method for the connection of an EV to an AC EV supply equipment permanently... - Page 12 AC EV Charging Station User Manual EN IEC 61851-1:2019 According to , M3P series products meet the Case C connection. ◼ Case C: Connection of an EV to a supply network utilizing a cable and vehicle connector permanently attached to the EV charging station.
-
Page 13: Charging Interface
Fig. 3-2-1 Type 2 plug on M3P1 series products Fig. 3-2-2 Type 2 plug on M3P3 series products M3P series products provide a Type 2 female plug with charging cable, it only charging an EV with a ◼ Type 2 vehicle inlet. -
Page 14: Product Information
Welcome to use AC EV Charging station produced by our company. The shape & dimensions of AC EV charging station shown as Fig. 4-1. ◼ Fig. 4-1 The shape & dimensions of M3P series The block diagram of AC EV charging station is shown as Fig. 4-2. ◼... -
Page 15: Model Number Definition
M3P Series AC EV Charging Station User Manual It is widely used in all kinds of household electric vehicle charging, as well as various charging stations, ◼ parking lots, community garages and public electric vehicle charging places. 4.2. Model number definition The model number definition of charging station follows the rules as shown in Fig. - Page 16 M3P Series AC EV Charging Station User Manual Functional description 4.3.2. Model series M3P series Charging Mode Mode 3 Charging Control Remote: “APP-controlled” Local: “Button-controlled” or “Card-controlled” 4 LED lights; Indicator Lights Indicate 4 statuses include standby, charging, fault and network WiFi (2.4GHz / 5G Hz), and support OCPP 1.6J Protocol (Optional)
-
Page 17: Nameplate
4.4. Nameplate On the wallbox shell, there is a nameplate identifying the model and specification of the charging station, the content is shown as Fig. 4-4. Fig. 4-4 the nameplate for M3P series product 5. INSTALLATION 5.1. Unpacking Packing list 5.1.1. -
Page 18: Prepare
M3P Series AC EV Charging Station User Manual Fig. 5-1 Wall-mounting accessories Inspection & confirm 5.1.2. When unpacking, please carefully confirm the following points: Whether the accessories are missing according to the packing list. ◼ Whether there is any damage during transportation. - Page 19 M3P Series AC EV Charging Station User Manual may affect the installation effect due to thermal expansion and cold contraction. The electrical power supply cable must be prepared. Please refer to Clause 4.3.1 to select the power ◼ cable. Space requirement: When the charging station is fixed on the wall, the minimum space requirements ◼...
-
Page 20: Installation Steps
M3P Series AC EV Charging Station User Manual Diagonal plier Cut the cable Wire stripper Peeling cables Crimping plier Pressed cable terminal Cross screwdriver Fastening screw 5.3. Installation steps Install the Charging station on the wall follow the steps as below. - Page 21 M3P Series AC EV Charging Station User Manual Screw Gland of input cable Charging cable Main board Terminals of input power Input power cable Wire conductor Screwdriver Fig. 5-6 Open the wallbox and wiring Loosen the gland [B], pass the prepared power cable through it.
-
Page 22: Empty Socket

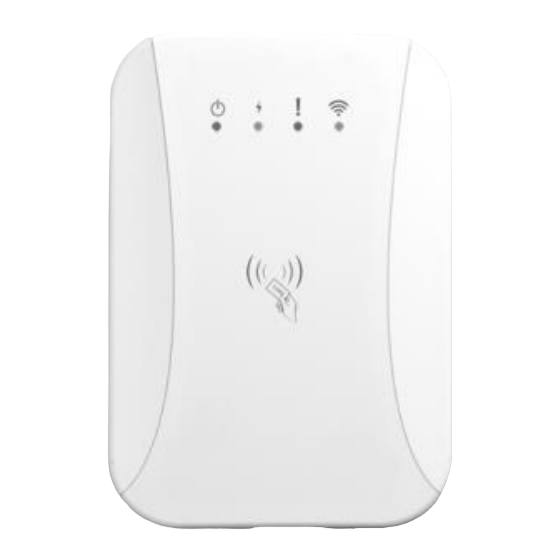

5.4. Empty socket M3P series AC EV charging station config a type 2 charging connector. When the charging station is in standby state, please plug the charging connector in the empty connector socket in order to protect the charging connector. Please use expansion screws to fix this empty socket at a suitable position beside the charging station. - Page 23 M3P Series AC EV Charging Station User Manual 4 LED lights: Indicate 4 statuses, include standby, charging, fault, and network Swipe card area: Swipe the RFID card to charging Charging control button: Start or stop charging by press for Button-controlled charging Fig.
-
Page 24: Configure Parameters
M3P Series AC EV Charging Station User Manual Fault status Yellow Twinkle Twinkle frequency indicates the fault code Unconnected network Connected to the network Blue Exchange data with CMS via network. Slow twinkle Configure WiFi network status Fast twinkle RFID reader 6.2.3. - Page 25 M3P Series AC EV Charging Station User Manual charging station provides a WiFi hotspot as the access entrance for parameter configuration. Connect a WiFi hotspot with a name is similar to "EVSE-12345678" in the "WiFi network" of the laptop. It is no password to connect the hotspot.
-
Page 26: Start Charging
M3P Series AC EV Charging Station User Manual Fig. 6-5 Set parameters to config the EV charging station After setting, click the “SAVE” button to save the settings, and click the “SAVE & RESTART” button to save and restart charging station for settings take effect. Enter your WiFi name and password in the page. After it takes effect, the charging station can access Internet via your WiFi. -
Page 27: Normally Stop Charging
M3P Series AC EV Charging Station User Manual Pick off the charging connector form empty socket of EV charging station. As shown in Fig.6-6, plug the charging connector into the AC charging socket of the EV. For the charging control mode of “Button-controlled”, press the button after EV connector plug in, the charging will start automatically. -
Page 28: Abnormally Stop Charging
M3P Series AC EV Charging Station User Manual when EV is in charging. For the charging control mode of “Card-controlled”, you can stop charging by swipe your RFID card again, when EV is in charging. For the charging control mode of “APP-controlled”, click the stop button on your APP, the charging will stop. - Page 29 M3P Series AC EV Charging Station User Manual LED indicator Fault code Handling method information Fault code 13: ⚫ Check whether the input cable is reliably connected. LED flashes: Undervoltage input ⚫ Check whether the input voltage is abnormal. ⚫ 1×slow, 3×fast Fault code 14: ⚫...
-
Page 30: Maintenance
M3P Series AC EV Charging Station User Manual LED indicator Fault code Handling method information Fault code 22: ⚫ This EV does not meet the IEC standards and cannot LED flashes: EV not supported be charged. ⚫ 2×slow, 2×fast Fault code 23: ⚫... -
Page 31: Warranty Agreement
M3P Series AC EV Charging Station User Manual WARRANTY AGREEMENT The scope of warranty refers to the product itself. The warranty period is 24 months. During the warranty period, the company will repair the product free of charge in case of failure or damage (determined by the company's technical personnel) under normal use.
