RM4 800 Mount Instructions

RM4 Plow mount Instructions
Can-Am Commander 800/1000

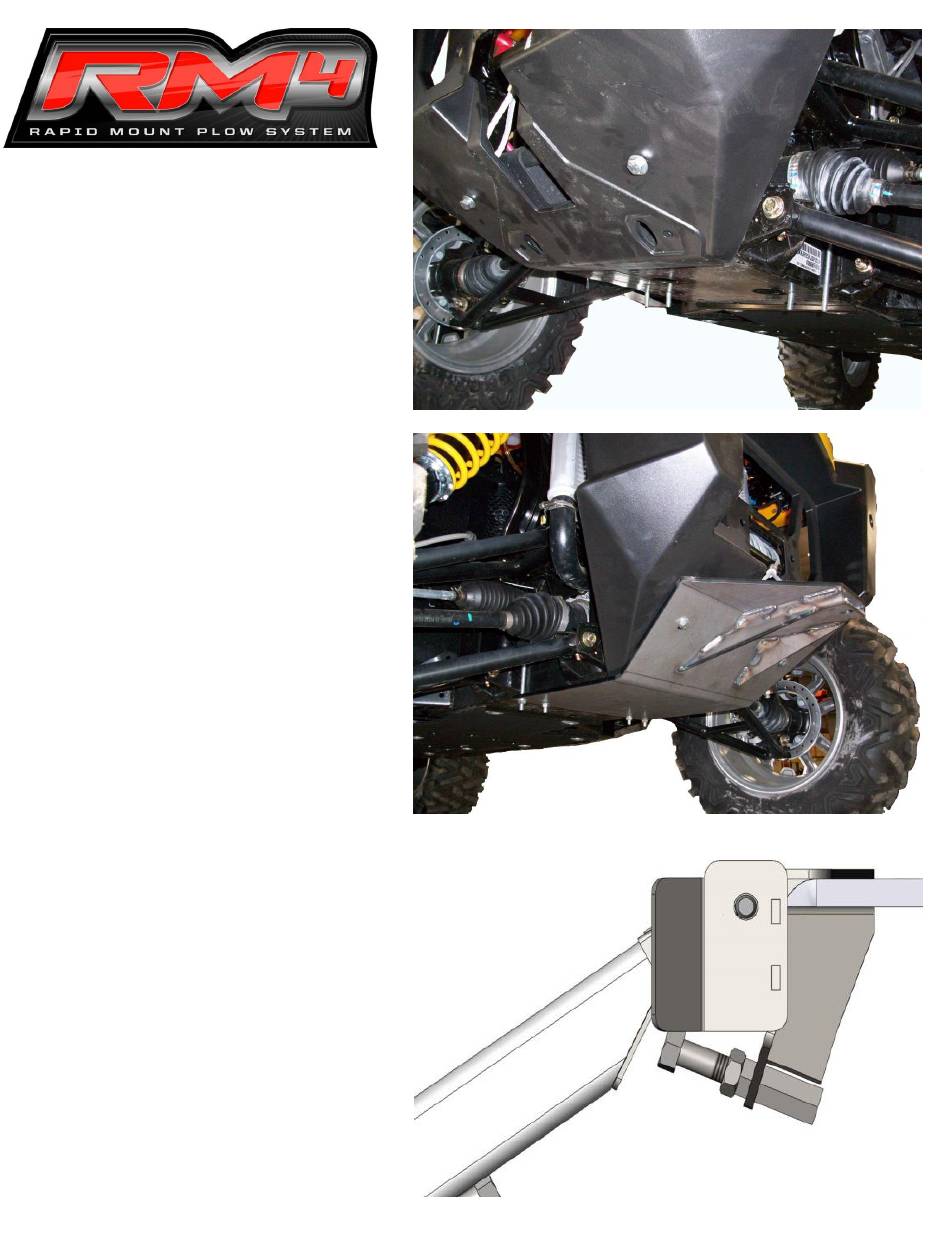

After drilling out the front plastic skid plate
Now you can holt it back up in place along
with the plow mount and attach with the to
5/16 x 1 hex bolt and washers going
through the mount and skid plate and
bumper and use the 5/16 washers and
nylock nuts on the inside. Align and snug
up.
Now using the plow mount as a guide drill
through the metal skid plate on the inside
hole for the u-bolts to fit through. After
drilling you can place the 5/16 x square
u-bolts over the frame tubes and down
through the holes in the mount and secure
with the 5/16 washers and nylock nuts.
Align and tighten all bolts.
Install the ½ bolts and ½ nuts into the front
of the removable mount. These are used as
droop stops to keep the plow from drooping
down too far. Thread them in about half
way for now. Slide the removable mount
into place on the machine mount and pin
from the top with the 1/2 locking pin. You
can now attach you plow and push tube.
Once the complete plow system has been
installed on the machine put the blade
straight and on the ground. Adjust both
droop stop bolts so there is ¼ to ½ clearance
between the bolt heads and the push tube.
Failure to adjust properly may cause damage
and this would not be covered under
warranty.
For question or comments call 763-689-4800
Inst2483 09/04/15
