Summary of Contents for Hurley HANG 5

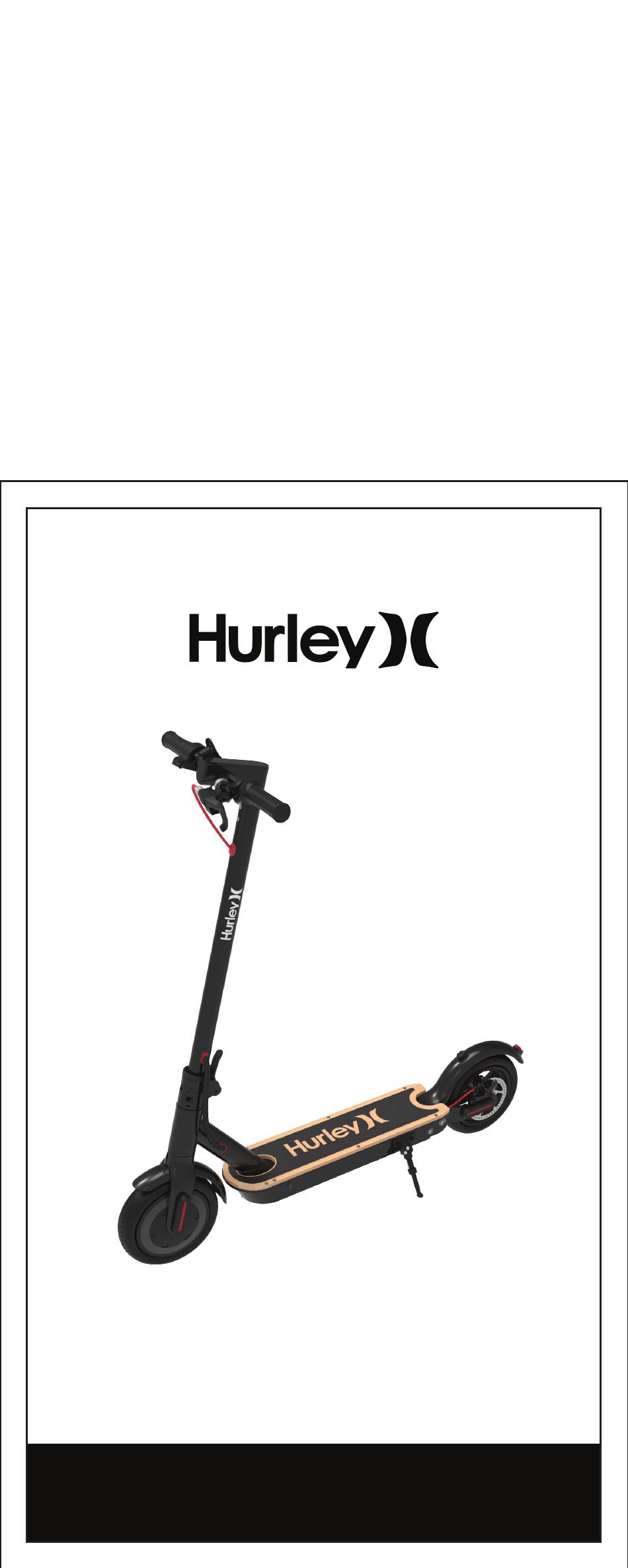

- Page 1 电动滑板车说明书 刀模线不印刷 size:124x215mm 材质：封面封底200g双铜纸（过哑胶） 内页128g双铜纸（内页不过胶） 双面印刷，按页码顺序装订，骑马钉装成册， 保证页面不脱落 封面 OPERATION MANUAL HANG 5 THIS MANUAL CONTAINS IMPORTANT SAFETY INFORMATION PLEASE READ AND KEEP FOR FUTURE REFERENCE...
- Page 2 HELMETS SAVE LIVES! Always wear a properly fitted helmet that complies with CPSC or CE safety standards when you ride your E-scooter. Correct Fitting: Make sure your helmet covers your forehead. Incorrect Fitting: Forehead is exposed and vulnerable to serious injury.
- Page 3 WARNING As with all mechanical components, the E-scooter is subjected to wear and high stresses. Different materials and components may react to wear or fatigue in different ways. If the design life of a component has been exceeded, it may suddenly fail possibly causing injuries to the rider.
- Page 4 Thank you for purchasing the HANG 5 E-scooter. Please read all instructions carefully before using and retain this manual for future use and reference.
- Page 5 LOW TEMPERATURE WARNING Low temperature will affect the lubrication of moving parts inside the E-scooter, increasing internal resistance. At the same time, in low temperatures, the discharge capacity and the capacity itself of the battery will be significantly decreased. Use caution when riding the E-scooter in cold temperatures (below 40 degrees F).
- Page 6 Do not operate, or allow others to operate, the E-scooter, until the user understands all instructions, warnings and safety features described in this manual. Check with your doctor if you have a medical condition that could affect your ability to use the E-scooter. Persons with head, back or neck ailments or prior surgeries to those areas of the body are not recommended to use this E-scooter.
- Page 7 You should check with local officials to ensure you are complying with local traffic law requirements. HANG 5 E-scooter is not liable for tickets or violations given to riders who do not follow local laws and regulations. For your safety, always wear a helmet that meets CPSC or CE safety standards.
- Page 8 Slow down at all street intersections and look to the left and right before crossing. Your HANG 5 electric folding E-scooter is not equipped with reflectors. It is not recommended that you ride in conditions of low visibility. If you are riding your E-scooter in low-visibility conditions, ensure your LED light is tuned on, and that you are wearing bright, reflective clothing.
- Page 9 Use your best judgment to keep yourself out of dangerous situations with your E-scooter. Do not ride your HANG 5 E-scooter off of curbs, ramps, or attempt to operate in a skate, park empty, pool or in any way similar to a skateboard.
- Page 10 Do not ride your E-scooter near motor vehicles or on public roads. Do not travel up or down steep hills. The HANG 5 E-scooter is intended for use by a single individual. DO NOT attempt to operate the E-scooter with two or more people.
- Page 11 In addition wear bright, reflective clothing when riding in poor lighting conditions. Do not attempt any stunts or tricks with your HANG 5 E-scooter. Do not ride the E-scooter in dark or poorly lit areas. Do not ride the E-scooter near or over potholes, cracks or uneven pavement or surfaces.
-
Page 12: Care And Maintenance
Do not let the device fall from high places, as doing so may damage the internal circuitry. Do not attempt to disassemble the device. Use only the charger provided by HANG 5 E-scooter. WARNING Avoid using water or other liquids for cleaning. If water or other liquids enter the E-scooter, it will cause permanent damage to the internal components. -
Page 13: Battery Care/ Maintenance
BATTERY CARE/ MAINTENANCE BATTERY SPECIFICATIONS Battery Type: Rechargeable lithium-ion battery Charge Time: Up to 4.5 hours Battery Voltage: 36V Battery Capacity: 6 Ah Working Temperature: 32 -104 Charging Temperature: 32 -104 Storage Temperature: -40 -104 Storage Humidity: 5%-95% BATTERY MAINTENANCE The lithium-ion battery is built into the device. - Page 14 The battery contains dangerous substances, do not open the battery, or insert anything into the battery. Please only use the charger provided by HANG 5. Do not attempt to charge the device if the battery has discharge or emits any substances. In that case, immediately distance yourself from the battery in case of fire or explosion.
-
Page 15: Specifications
SPECIFICATIONS Model: HANG 5 Net Weight: 30.2 lbs (13.7kg) Max Supported Weight: 264 lbs (120 kg) Min Supported Weight: 44 lbs (20 kg) Max Speed: Up to 15 mph (25km/h) Max Distance Range: Up to 15 miles (25 km) base on 75kg rider... - Page 16 HANG 5 DIAGRAM FEATURES/PARTS 9.Steering Column 1.LCD Display 10.Folding Lock 2.Bell 11. Kickstand 3.Brake Handle 12. E-scooter Platform 4.Handlebars(L) 13. Charging Port 5.Handlebars (R) 14. Folding Hook 6.Throttle 15. Brake Light 7.Power Button 16. Tire 8.Folding Clip...
-
Page 17: Controls And Display
CONTROLS AND DISPLAY BRAKE HANDLE THROTTLE FOLDING CLIP LCD DISPLAYS POWER/FUNCTION BUTTON LCD DISPLAY HIGH SPEED MODE Indicates high speed mode is activated. SPEEDOMETER Displays your current speed in Mph / Km/h: Press 3 times constantly to switch between Mph and Km/h. - Page 18 Connect the cable with the power supply (100V ~ 240V; 50/60 Hz). Align and connect the l-pin charging cable into the charging port of the HANG 5 E-scooter.(DO NOT FORCE OR BEND THE CHARGING CABLE AS IT MAY CAUSE THE PRONGS TO BEND OR BREAK.) The charging indicator light on the charger itself should change to RED, indicating that your device is now being charged.
-
Page 19: Pinch Points
PINCH POINTS Some parts of your E-scooter can injure you if mishandled. Moving and folding parts can cut skin. Clamps and pivoting parts such as brake levers can pinch. When folding and unfolding your E-scooter, please watch for pinch points where possible injury may be sustained. Do not leave your hand in these areas during folding or unfolding. -
Page 20: Folding And Unfolding
FOLDING & UNFOLDING FOLDING & UNFOLDING YOUR HANG 5 E-scooter. To unfold your HANG 5 e-scooter, press down on the folding clip and pull the steering column up. Raise the safety lock up and push it into place and then buckle lock piece to secure the steering column. You will hear a "click", indicating the steering column is locked. -
Page 21: Before Riding
PRE-RIDE CHECKLIST Ensure that your HANG 5 E-scooter is in proper working order each and every time you ride. If a part of the HANG 5 E-scooter does not function correctly, please contact our Customer Support Center. Ensure the battery is fully charged before riding your E-scooter. - Page 22 To turn, use the handlebar to turn in the direction you wish to turn. The HANG 5 E-scooter can be operated manually if you do not wish to use the motor. As you get comfortable on the device, you will notice it becomes easier to maneuver.
- Page 23 WEIGHT AND SPEED LIMITATIONS Speed and weight limits are set for your own safety. Please do not exceed the limits listed in the "Specifications" section of this manual. WARNING Overweight exertion on the device may increase possibility of injury or product damage. OPERATING RANGE The following are some of the major factors that will affect the operating range of your device.
-
Page 24: Safety Alerts
IS EMITED FROMTHE BATTERY. SAFETY ALERTS While riding your HANG 5 E-scooter, if there is a system error or illegal operation performed the device will prompt the user in a variety of ways. The following are common occurrences where you will see Safety Alerts. -
Page 25: Warranty
WARRANTY Error E1-motor hall failure, the motor needs to be replaced Error E2-accelerator failure, the accelerator needs to be replaced Error E3-motor blocking fault, release the accelerator Error codes Error E4/MOS - mainboard MOS tube failure, the mainboard needs to be replaced Error E6-controller / instrument communication failure, the controller needs to be replaced Error E7-battery over-voltage protection, the...
Need help?
Do you have a question about the HANG 5 and is the answer not in the manual?
Questions and answers

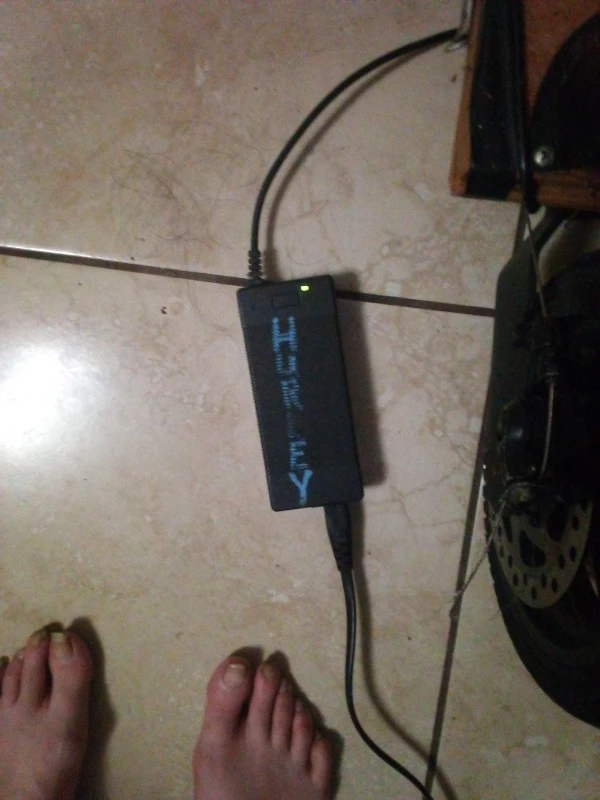

Why would the indicator light not turn red once the charger is plugged in
If the indicator light on the Hurley HANG 5 charger does not turn red when plugged in, it may indicate that the device is not charging. Possible reasons include:
- The charger is not properly connected to the scooter or the power outlet.
- The battery is already fully charged.
- There is an issue with the charging cable or charger.
- An unauthorized or incompatible charger is being used.
- The scooter or battery may be damaged.
Ensure the included charger and cable are used and properly connected.
This answer is automatically generated

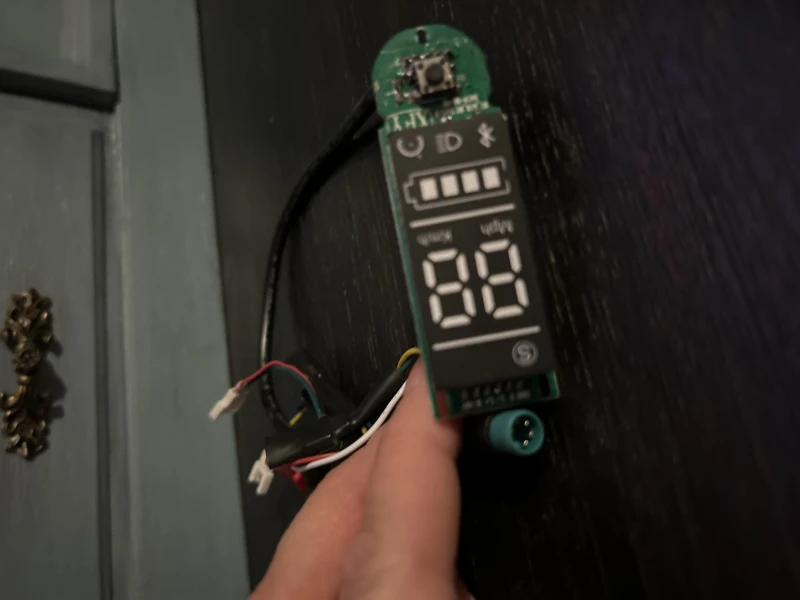

Where can I find a new electric wiring for the lcd screen? Our power button broke and now it won’t turn on.. In handlebar.. model number please.
Where is the FUSE located at on the Hurley scooter
